IP 67 waterproof single output SMPS 12v led driver 50w
50W Single Output Waterproof Switching Power Supply LDV-50 series
SPECIFICATION | ||
OUTPUT |
|
|
Model |
LDV-50-12 |
LDV-50-24 |
DC Voltage |
12V |
24V |
Rated Current |
4.2A |
2.1A |
Current Range |
0-4.2A |
0-2.1A |
Rated Power |
50.4W |
50.4W |
Ripple & Noise |
120mVp-p |
120mVp-p |
Voltage Adj. Range |
±10% |
±10% |
Voltage Tolerance |
±1% |
±1% |
Inlet Stability |
±0.5% |
±0.5% |
Load Stability |
±0.5% |
±0.5% |
Setup, Rise, Hold Up Time |
800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|
|
|
|
INPUT |
|
|
Voltage Range |
170~250VAC 50-60Hz |
|
AC Current |
2A/115V 1A/230V |
|
Efficiency |
76% |
79% |
Inrush Current |
Cold-start current 30A/115V 60A/230V |
|
|
|
|
PROTECTION |
|
|
Over Load |
105%~150% |
|
plusing hiccup shutdown Reset:auto recovery | ||
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0-50℃) |
|
Vibration |
10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
UL1012TUV EN60950(IEC950,UL1950) Approved IP67 |
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
|
|
|
|
OTHERS |
|
|
Dimension |
190*49*34mm(L*W*H) |
|
Weight |
0.56Kg |
|
What is our magic weapon for winning?
1.10 years experience for producing Electric Appliances.
2. Independent research and development ability, with 15 years experience of engineers.
3. No one we have, we have excellent!

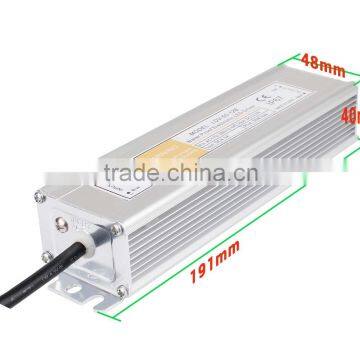

Detailed photos :
Yes. we do .
2 .What certification you have for the switching power supply ?
We have CE , ROHS , CCC , ISO9001 , IP67
3.How to Contact Us ?
Send your inquiry Details in the below, Click "Send" Now !
