Help CenterUL Rated Input 220V/230V Waterproof for LED Lamp LDV-50-12 50W 12V LED Driver
Related Products
-
CE RoHS 250W Power Supply 12V 24V 36V Led Strip WaterproofUS$ 21.67 - 23.26MOQ: 1 Piece -
IP67 Design Waterproof LDV-250-24 Single Output Led Power Supply 24V 10AUS$ 21.23 - 23.23MOQ: 1 Piece
-
Professional Manufacturer CE RoHS 250W Led Power Supply 12VUS$ 21.67 - 23.26MOQ: 1 Piece
-
18W Single Output Constant Voltage LED Driver Switching Power Supply 18w Led DriverUS$ 4 - 6MOQ: 10 Pieces
-
IP67 24v Led Driver For Led Strip LightUS$ 4 - 6MOQ: 10 Pieces
Specifications
50W 12V LED driver1.180~264VAC only
2.Certification:CE RoHS IP67
3.short circuit protection
4.best quality

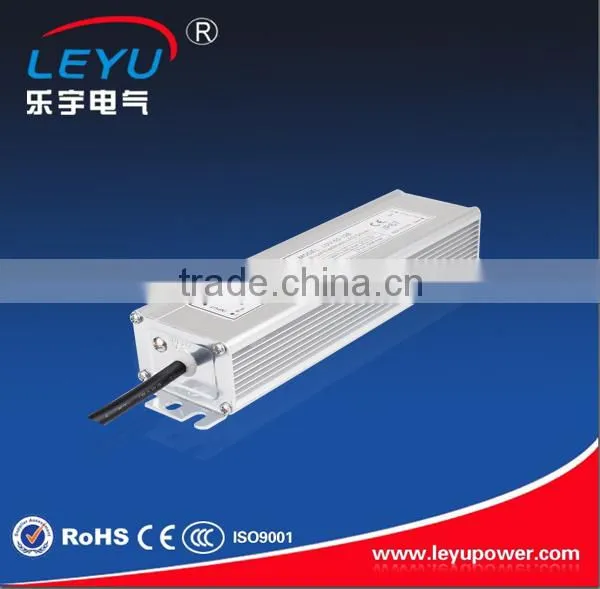

UL Rated Input 220V/230V Waterproof for LED lamp LDV-50-12 50W 12V LED driver
50W 12V LED driver
Specification:
50W Single Output Waterproof Switching Power Supply LDV-50 series
SPECIFICATION | ||
OUTPUT |
|
|
Model |
LDV-50-12 |
LDV-50-24 |
DC Voltage |
12V |
24V |
Rated Current |
4.2A |
2.1A |
Current Range |
0-4.2A |
0-2.1A |
Rated Power |
50.4W |
50.4W |
Ripple & Noise |
120mVp-p |
120mVp-p |
Voltage Adj. Range |
±10% |
±10% |
Voltage Tolerance |
±1% |
±1% |
Inlet Stability |
±0.5% |
±0.5% |
Load Stability |
±0.5% |
±0.5% |
Setup, Rise, Hold Up Time |
800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|
|
|
|
INPUT |
|
|
Voltage Range |
170~250VAC 50-60Hz |
|
AC Current |
2A/115V 1A/230V |
|
Efficiency |
76% |
79% |
Inrush Current |
Cold-start current 30A/115V 60A/230V |
|
|
|
|
PROTECTION |
|
|
Over Load |
105%~150% |
|
plusing hiccup shutdown Reset:auto recovery | ||
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0-50℃) |
|
Vibration |
10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
UL1012TUV EN60950(IEC950,UL1950) Approved IP67 |
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
|
|
|
|
OTHERS |
|
|

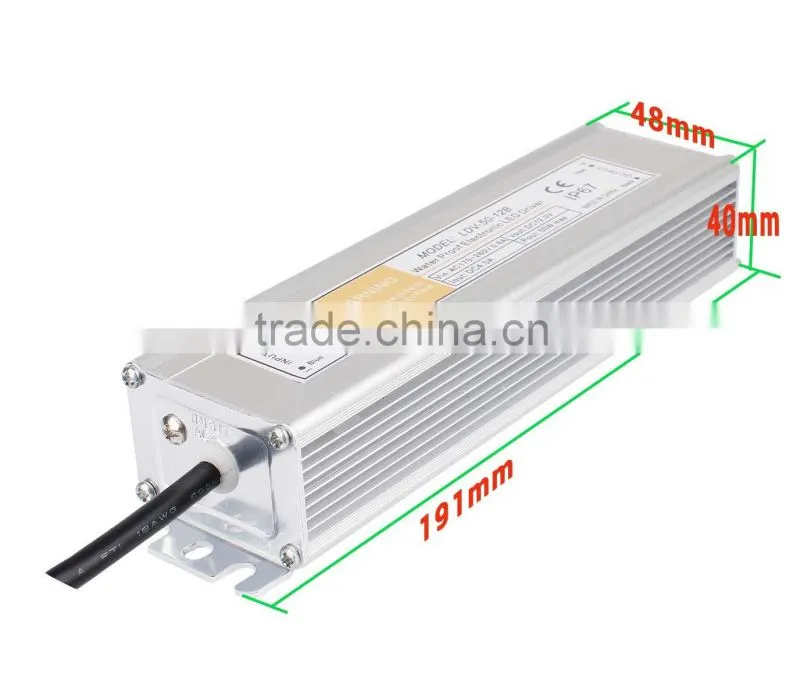

Dimension |
190*49*34mm(L*W*H) |
|
Weight |
0.56Kg |
|
What is our magic weapon for winning?
1.10 years experience for producing Electric Appliances.
2. Independent research and development ability, with 15 years experience of engineers.
3. No one we have, we have excellent!

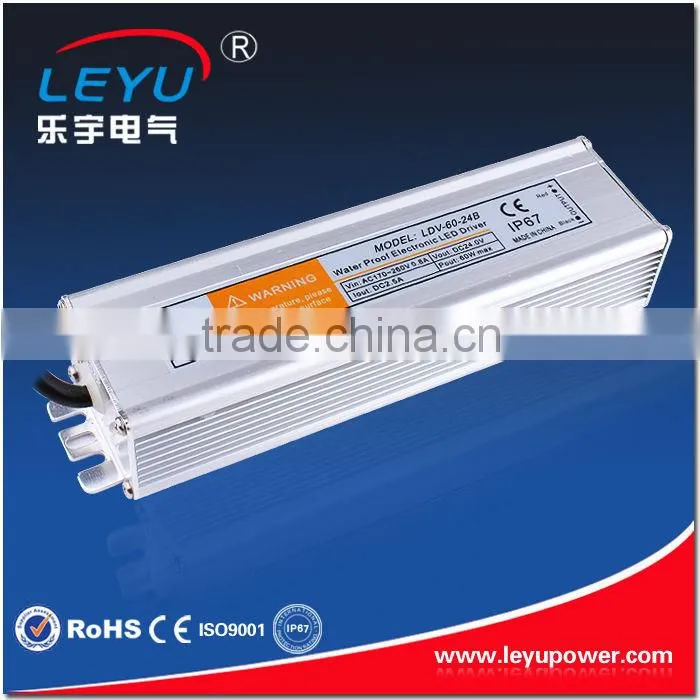

Detailed photos :
