IP67 CE RoHS 18W Single Output 36V Waterproof Led Transformer

Name: IP67 CE RoHS 18W Single Output 36V Waterproof Led Transformer
Brand: Leyu led transformer
SKU: 113144541

US$ 3.83 - 4.67 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Leyu led transformer

Model Number:

LDV-18-12 led transformer

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/ Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Leyu led transformer

Model Number LDV-18-12 led transformer

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 12V led transformer

Output Frequency 50 Hz

Output Current 1.5A led transformer

Specifications

led transformer
1.CE RoHS,ISO9001 approve
2.High reliable and efficiency
3.Compact size, light weight
4.Good Price

led transformer

IP67 CE RoHS 18W Single Output 36V Waterproof Led Transformer

18W Single Output Waterproof Switching Power Supply LDV-18 series

SPECIFICATION
OUTPUT
Model	LDV-18-12	LDV-18-24
DC Voltage	12V	24V
Rated Current	1.5A	0.75A
Current Range	0-1.5A	0-0.75A
Rated Power	18W	18W
Ripple & Noise	100mVp-p	100mVp-p
Voltage Adj. Range	±10%	±10%
Voltage Tolerance	±1%	±1%
Inlet Stability	±0.5%	±0.5%
Load Stability	±0.5%	±0.5%
Setup, Rise, Hold Up Time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

INPUT
Voltage Range	176~264VAC 47~63Hz
AC Current	0.7A/115V 0.3A/230V
Efficiency	76%/115VAC	80%/115VAC
Inrush Current	Cold-start current 15A/115V 30A/230V
Leakage Current	<0.75mA/240VAC

PROTECTION
Over Load	105%~150%
	Protection type: plusing hiccup shutdown Reset:auto recovery

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	ApprovedIP67
EMC Standard	CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification

OTHERS

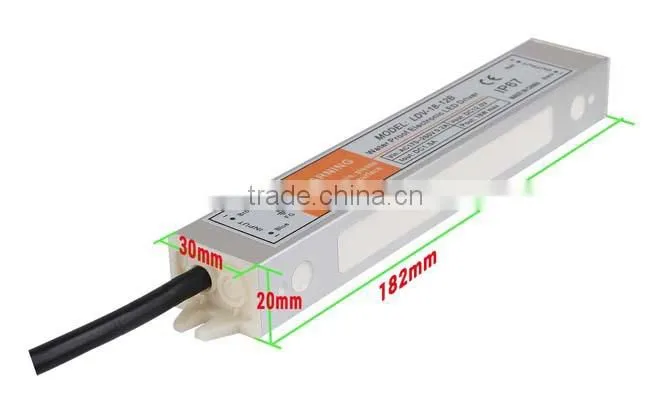

Dimension	*1612820mm(LWH)*
Weight	0.2Kg
