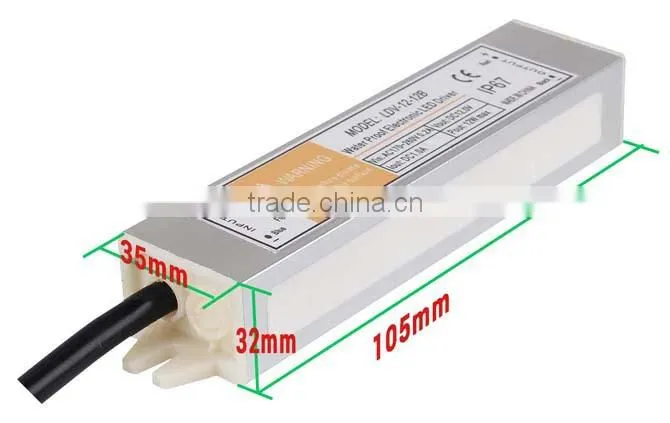

full range input waterproof switch mode power supply LDV-12-12 12w 12v 1a led driver
12W Single Output Waterproof Switching Power Supply LDV-12 series
SPECIFICATION | ||
OUTPUT |
|
|
Model |
LDV-12-12 |
LDV-12-24 |
DC Voltage |
12V |
24V |
Rated Current |
1A |
0.5A |
Current Range |
0-1A |
0-0.5A |
Rated Power |
12W |
12W |
Ripple & Noise |
100mVp-p |
100mVp-p |
Voltage Adj. Range |
±10% |
±10% |
Voltage Tolerance |
±1% |
±1% |
Inlet Stability |
±0.5% |
±0.5% |
Load Stability |
±0.5% |
±0.5% |
Setup, Rise, Hold Up Time |
800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|
|
|
|
INPUT |
|
|
Voltage Range |
176~264VAC 47~63Hz |
|
AC Current |
0.7A/115V 0.3A/230V |
|
Efficiency |
76%/115VAC |
80%/115VAC |
Inrush Current |
Cold-start current 15A/115V 30A/230V |
|
Leakage Current |
<0.75mA/240VAC |
|
|
|
|
PROTECTION |
|
|
Over Load |
105%~150% |
|
Protection type: plusing hiccup shutdown Reset:auto recovery | ||
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
ApprovedIP67 |
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
|
|
|
|
OTHERS |
|
|
Dimension |
105*32*35mm(L*W*H) |
|
Weight |
0.17Kg |
|
Company Information
1.your inquiries will be replied within 24 hours;
2.OEM/OEM available:
a)Print logo on our products
b)Customized specification
c)Customized color package cases
d)Any require about our products, we will customized for you and put it into production in advance.
3.High quality, fashion design,reasonable&competitive price , fast delivery time.
4.After-selling service:
a)all products will adopt strictly testing (Burn-in test) before packing
b)All products will be packed before shipping
c)All products have 1-2 years warranty
5.Fast delivery:
Sample order in stock generally ,and 7-15 days for mass production
6.Payment term:
T/T , western union & paypal
7.Shipping
We have long-term cooperation with DHL,TNT,UPS,FEDEX,EMS,china post air mail, you also can choose your own shipping forwarder.
Welcome my dear friend ,looking forward to get your inquiry. All your inquiry will be replied within 24 hours. Please contact me!
FAQ -power inverter
1. Do you accept OEM for the power inverter ?
Yes. we do .
2 .What certificated do you have ?
CE RoHS ISO9001
3.How to Contact Us ?
Send your inquiry Details in the below, Click "Send" Now !
