Chinese Mini Excavator for Sale Cheap 2.2 Tons Micro Excavator With Japanese Diesel Engine

Name: Chinese Mini Excavator for Sale Cheap 2.2 Tons Micro Excavator With Japanese Diesel Engine
Brand: WOLF
Availability: InStock

FOB Price

US$ 10,000 - 14,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	WOLF
Model Number	WE22 mini excavator	Condition	New
Moving Type	Crawler Excavator	Operating Weight	2200kg
Bucket capacity	0.1m3	Maximum Digging Height	2660mm
Maximum Digging Depth	2150mm	Machine Weight	2200kg
Max Digging Radius	4187mm	Rated Speed	2.0km/h
Certification	CE, ISO	After-sales Service Provided	Overseas service center available

Chinese mini excavator for sale cheap 2.2 tons micro excavator with Japanese diesel engine

Product Description

--- rubber track mini excavator/ 2.2 ton mini excavator / mini crawler excavator

--- Rubber track , steel track

---- Detailed specification of 2 ton mini excavator, Mini Crawler Excavator

Partition	Item		Specification
OVERALL DIMENSIONS	Overall length for transportation(mm)		4090
	Overall Width(mm)		1200
	Overall Height(mm)		2224
	Min.Ground Clearance		185
	Track	Track Gauge(mm)	950
		Track Width(mm)	230
		Track ground length (mm)	1250
	Total Weight(Kg)		2200
	Bucket Width(mm)		490
PERFORMANCE	Max.Digging Height(mm)		3800
	Max.Digging Radius(mm)		4187
	Max.Digging Depth(mm)		2150
	Max.Dumping Height (mm)		2660
	Slewing Angle		360°
	Grade ability		25°
	Travel Speed(km/h)		2.0
	Bucket Capacity(m³)		0.08
	Swing angle of arm Left/Right(°)		70/50
	Bucket digging force(KN)		26
	Ground Pressure(Kpa)		34
	Swing Speed(rpm)		10
	Min.Swing radius(mm)		1200
HYDRAULIC SYSTEM	Main Pump		Single Pump
	Main Pressure(Mpa)		25
	Max.RPM of the pump(r/min)		2500
	Pump Displacement(L/min)		25
ENGINE	3-cylinder Engine		ZN390Q
	Output(KW/rpm)		25/2600
	Cooling type		Water cooled
	Fuel tank capacity (L)		40

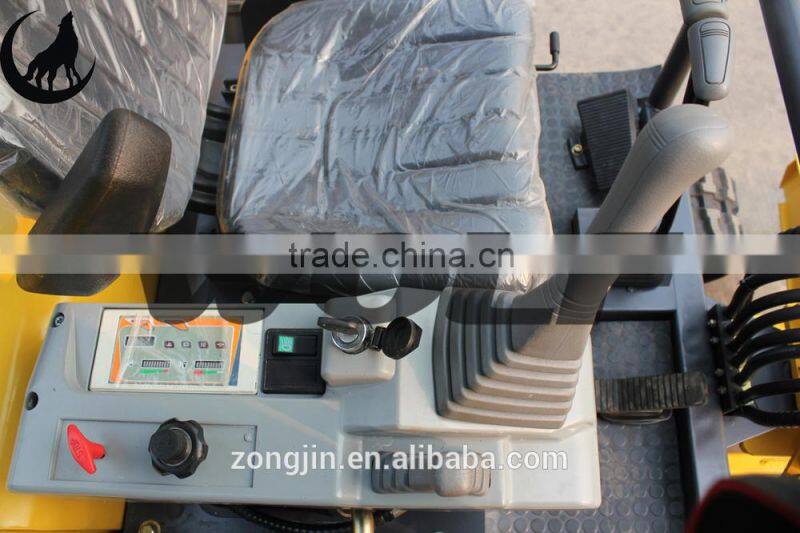

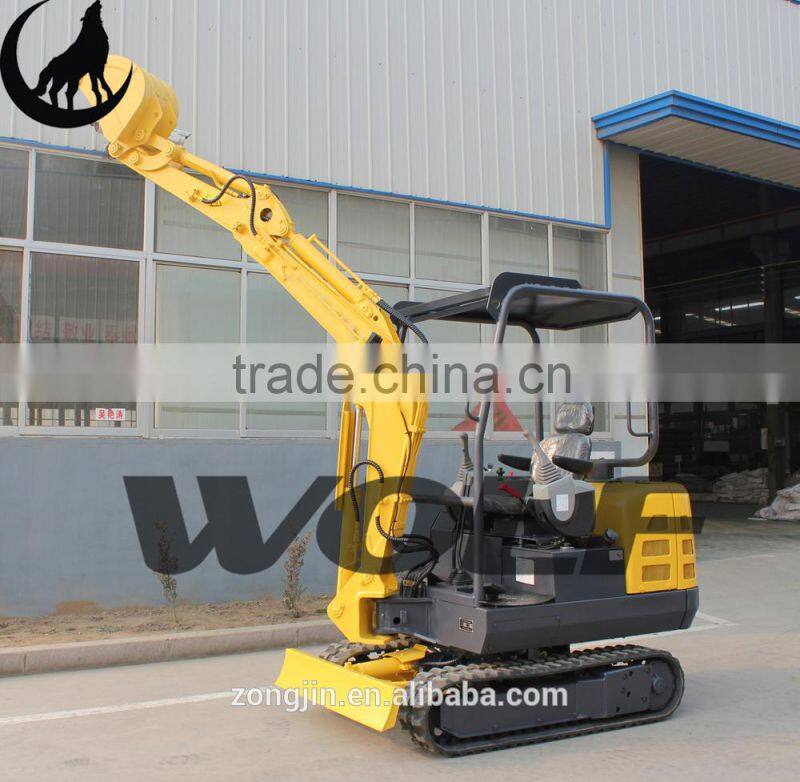

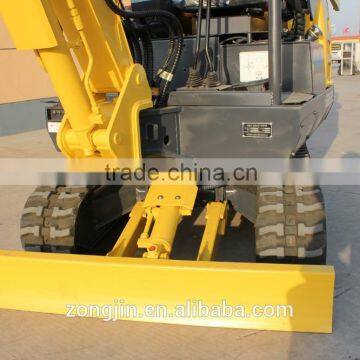

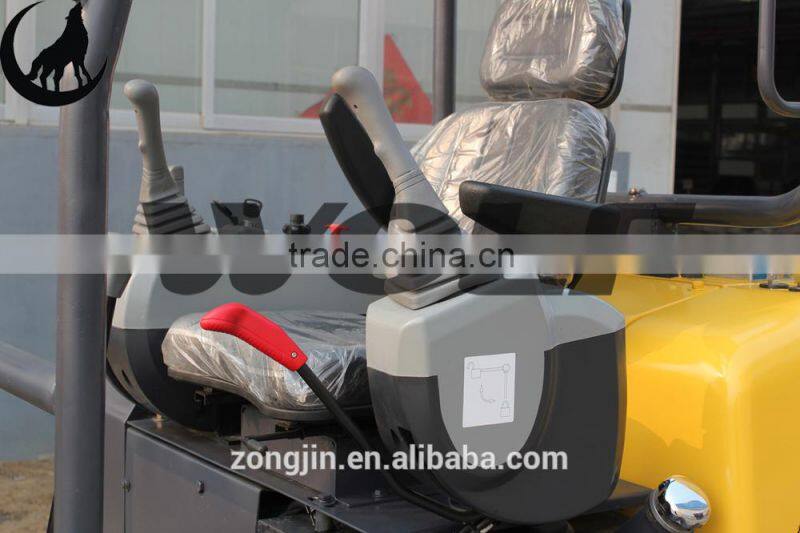

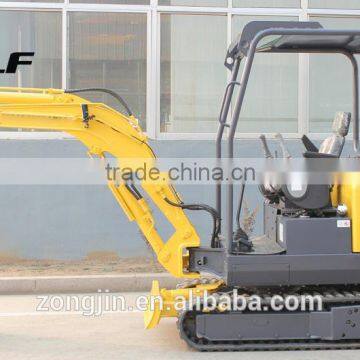

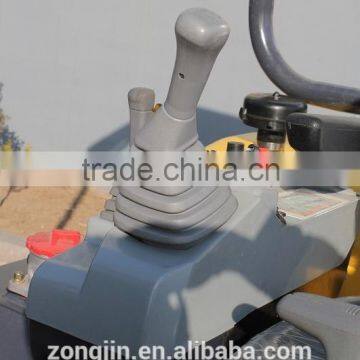

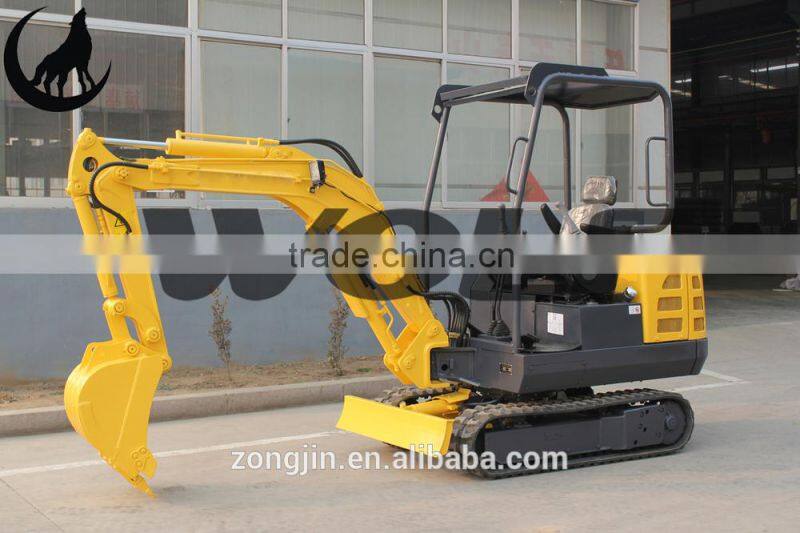

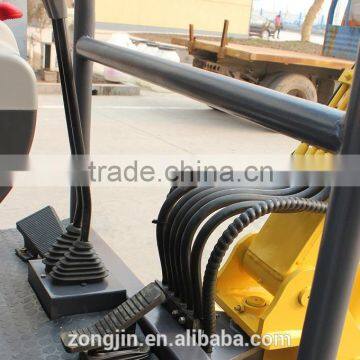

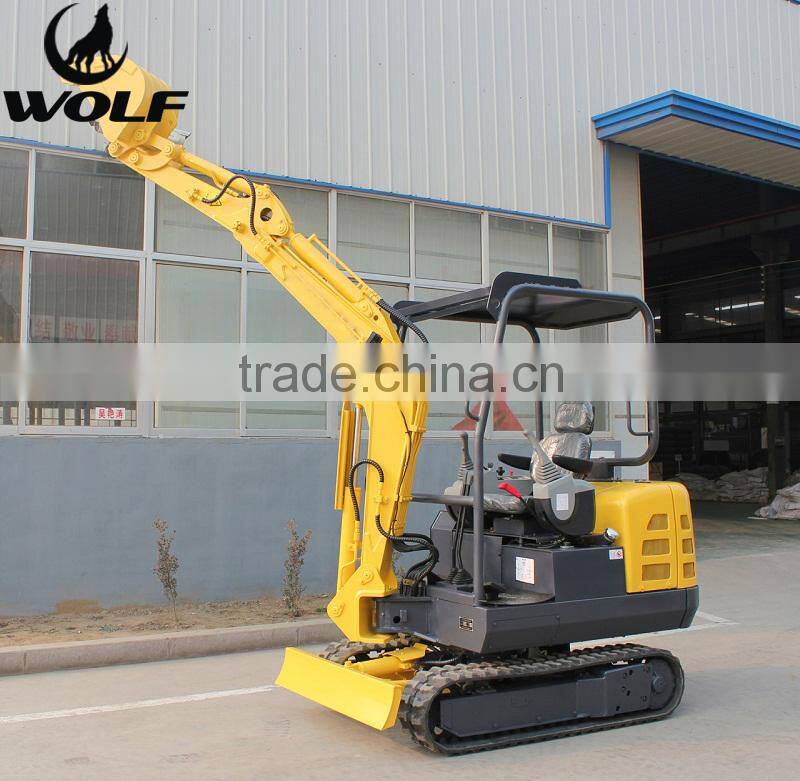

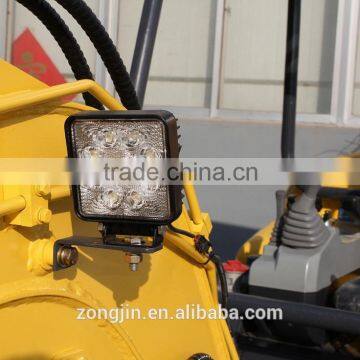

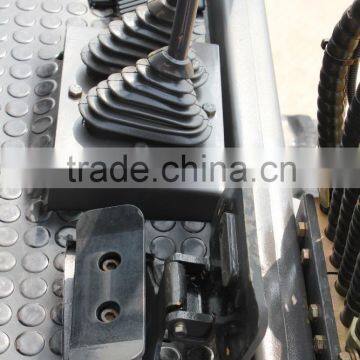

--- Detailed pictures of 2.2 ton mini excavator, Mini Crawler Excavator

Packaging & Shipping

Nude package,

Chinese mini excavator for sale cheap 2.2 tons micro excavator with Japanese diesel engine .

3 sets in a 20GP container,
6 sets in a 40HQ container.
