Specifications
regulated power supplyA.Passed ip67 waterproof dustproof grade test
B. LED street lighting outdoor LED lighting application
Waterproof IP67 60w CE RoHS approved 24v regulated power supply
60W Single Output Waterproof Switching Power Supply LDV-60 series
SPECIFICATION | ||
OUTPUT |
|
|
Model |
LDV-60-12 |
LDV-60-24 |
DC Voltage |
12V |
24V |
Rated Current |
5A |
2.5A |
Current Range |
0-5A |
0-2.5A |
Rated Power |
60W |
60W |
Ripple & Noise |
120mVp-p |
120mVp-p |
Voltage Adj. Range |
±10% |
±10% |
Voltage Tolerance |
±1% |
±1% |
Inlet Stability |
±0.5% |
±0.5% |
Load Stability |
±0.5% |
±0.5% |
Setup, Rise, Hold Up Time |
800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|
|
|
|
INPUT |
|
|
Voltage Range |
170~250VAC 50-60Hz |
|
AC Current |
2A/115V 1A/230V |
|
Efficiency |
76% |
79% |
Inrush Current |
Cold-start current 30A/115V 60A/230V |
|
|
|
|
PROTECTION |
|
|
Over Load |
105%~150% |
|
plusing hiccup shutdown Reset:auto recovery | ||
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0-50℃) |
|
Vibration |
10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
UL1012TUV EN60950(IEC950,UL1950) Approved IP67 |
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
|
|
|
|
OTHERS |
|
|

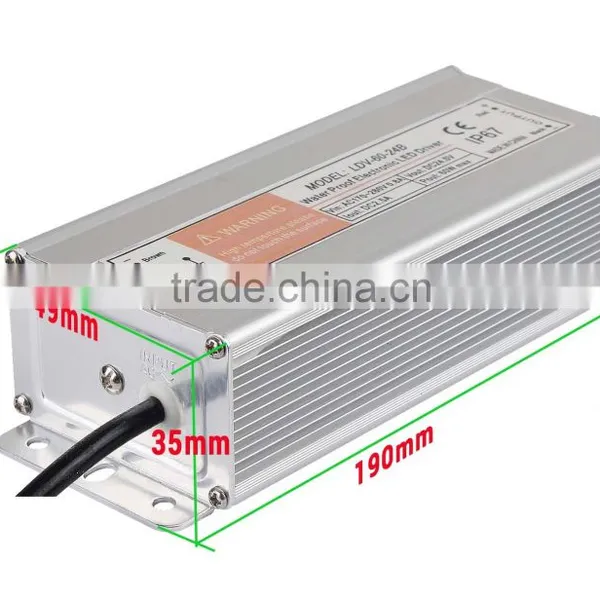

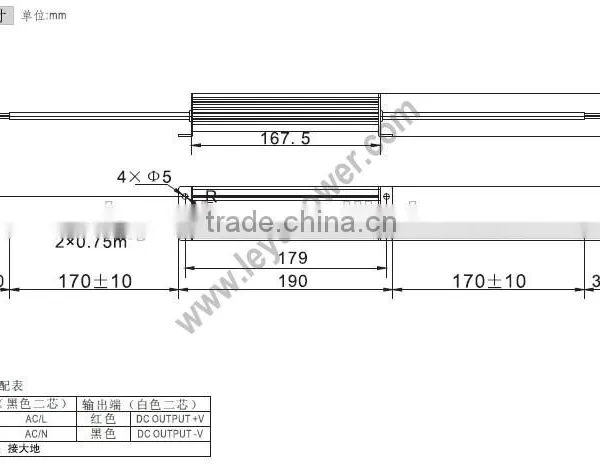

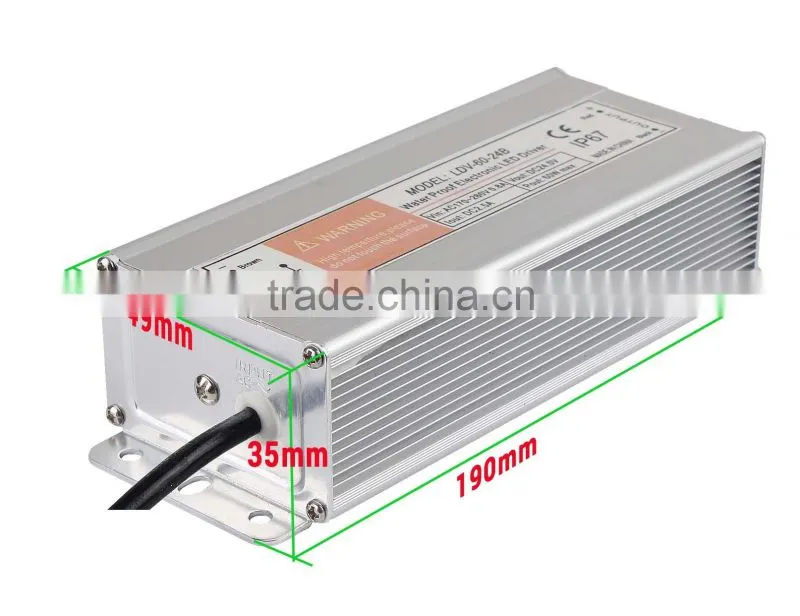

Dimension |
190*49*35mm(L*W*H) |
|
Weight |
0.5Kg |
|
1.Why Choose Us?
1.We are factory, can offer your reasonable price.
2. 8 years focus on the LED Power Supply Research and development, Production.
3. Your inquiries will be replied in 24hours.
4. We provide two years warranty of quality after sale.
5. OEM & ODM are available.
6.Track the order until you get the goods.
2.About Us
Our products have high quality and support two years warranty.
All the inner components of led driver are imports,
the productive process go through multiple testing to ensure every product are good.
3-promise
1. Your inquiry related to our products or prices will be replied in 24hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3. Any your customized demand we can help you to design and put into product;
4. As professional led power supply Manufacturer, we must give you the lowest price with high quality.
4-our service
1.Your inquiries will be replied in 24hours.
2.Track the order until you get the goods.
3.OEM & ODM are available.
4.We provide two years warranty of quality after sale
Thanks for your time,we are looking forward to your inquiry
