2 Year Warranty AC DC Power Supply CE ROHS Approved DC Output Uninterruptible 1000w Power Supply 48v

Name: 2 Year Warranty AC DC Power Supply CE ROHS Approved DC Output Uninterruptible 1000w Power Supply 48v
Brand: LEYU 1000W power supply
SKU: 113140503
Availability: InStock

2 Year Warranty AC DC Power Supply CE ROHS Approved DC Output Uninterruptible 1000w Power Supply 48v thumbnail-1

2 Year Warranty AC DC Power Supply CE ROHS Approved DC Output Uninterruptible 1000w Power Supply 48v photo-1

US$ 193 - 198 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

LEYU 1000W power supply

Model Number:

SCN-1000-48

Contact Supplier Request Quote Chat Now

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name LEYU 1000W power supply

Model Number SCN-1000-48

Output Power Other, >500W

Output Type Single

Input Voltage Other, 200~260V

Output Voltage 48v

Output Frequency 25~100KHz

Output Current 24A

Specifications

1000W power supply
1.Warranty :2 years
2.Dimension:291*132*68mm
3.Brand Name :LEYU
4.output voltage :12v 24V 48V

1000W power supply

Specification:

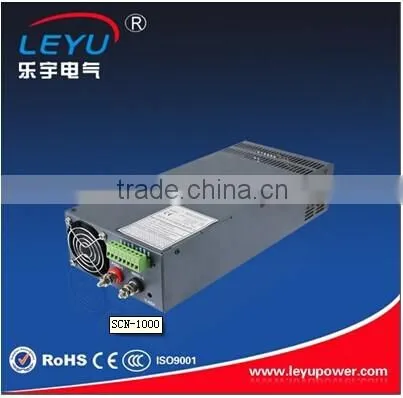

1000W Single Output with Parallel Function SCN-1000 series

Features:

AC input power suitable for the world

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

With short -circuit and overload protection

Compact size, light weight

100% full-load burning test

Installed with EMI filter, minimum wave

Model	SCN-1000-9	SCN-1000-12		SCN-1000-13.5	SCN-1000-15	SCN-1000-24	SCN-1000-27	SCN-1000-48
DC Voltage	9V	12V		13.5V	15V	24V	27V	48V
Rated Current	83A	80A		74A	67A	40A	24A	20A
Current Range	0-83A	0-80A		0-74A	0-67A	0-40A	0-37A	0-20A
Rated Power	747W	960W		999W	1005W	960W	999W	960W
Ripple & Noise	200mVp-p	200mVp-p		200mVp-p	200mVp-p	240mVp-p	240mVp-p	300mVp-p
Voltage Adj. Range	8.1~9.9V	10~13.2V		12.2V~14.8V	13.5~18V	20~26.4V	24~30V	41~56V
Voltage Tolerance	±10%	±10%		±10%	±10%	±5%	±5%	±5%
Inlet Stability	±0.5%	±0.5%		±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Stability	±0.5%	±0.5%		±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Setup, Rise, Hold Up Time	1.5s,50ms,20ms at full load

INPUT
Voltage Range	90~130VAC/180~264VAC 47~63Hz
AC Current	20A/115V 10A/230V
Efficiency	75%		75%	75%	75%	78%	80.00%	84.00%
Inrush Current	Cold-start current 60A 230V
Leakage Current	<3.5mA/240VAC

PROTECTION
Over Load	105%~135%
Over Load	Protection type: plusing hiccup shutdown Reset:Fecycle AC ON/OFF
Over Temp.	RTH≥80℃ output shutdown
Over Temp.

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	Meet UL1950requirement(Not apply for the mark)
EMC Standard	CISPR22(EN55022),IEC1000-4,2,3,4,5,6,8,11 IEC1000-3-2

OTHERS
Dimension	*29113268mm(LWH)*
Weight	2.57Kg
