Specifications
power supply units1.Warranty:2 years
2.Certification:CE RoHS CCC
3.Over load protection
4.LED indicator for power on
LEYU High reliable CE 100w single output 12v 24v power supply units
100W Single Output Switching Power Supply S-100 series
Features:
High efficiency, high reliability, low cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit / Over load
Fixed switching frequency at 25KHz
Cooling by free air convection
1 year warranty
SPECIFICATIONS | |||||||||
OUTPUT |
|
||||||||
Model |
S-100-3 |
S-100-5 |
S-100-7.5 |
S-100-12 |
S-100-15 |
S-100-18 |
S-100-24 |
S-100-27 |
S-100-48 |
DC Voltage |
3V |
5V |
7.5V |
12V |
15V |
18V |
24V |
27V |
48V |
Rated Current |
20A |
20A |
13.6A |
8.5A |
6.7A |
5.6A |
4.5A |
3.7A |
2A |
Current Range |
0-20A |
0-20A |
0-13.6A |
0-8.5A |
0-6.7A |
0-5.6A |
0-4.5A |
0-3.7A |
0-2A |
Rated Power |
60W |
100W |
102W |
102W |
100.5W |
100.8W |
108W |
99.9W |
96W |
Ripple & Noise |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
Voltage Adj. Range |
-5%;+10% |
-5%;+10% |
±10% |
±10% |
±10% |
±10% |
±10% |
-4%;+18% |
±10% |
Voltage Tolerance |
±2% |
±2% |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Setup, Rise, Hold Up Time |
200ms,80ms,20ms at full load |
||||||||
|
|
||||||||
INPUT |
|
||||||||
Voltage Range |
85~132VAC/180~264VAC selected by switch 47~63Hz; 255~370VDC |
||||||||
AC Current |
2.4A/115V 1.2A/230V |
||||||||
Efficiency |
70% |
78% |
80% |
81% |
81% |
82% |
84% |
84% |
84% |
Inrush Current |
Cold start 30A/115V 60A/230V |
||||||||
Leakage Current |
<1mA/240VAC |
||||||||
|
|
||||||||
PROTECTION |
|
||||||||
Over Load |
135%~165% |
||||||||
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed. | |||||||||
|
|
||||||||
ENVIRONMENT |
|
||||||||
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
||||||||
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
||||||||
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
||||||||
|
|
||||||||
SAFETY |
|
||||||||
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||||||||
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG100M Ohms/500VDC |
||||||||
|
|
||||||||
STANDARD |
|
||||||||
Safety Standard |
Design refer to UL1012 |
||||||||
EMC Standard |
Design refer to FCC Part15 J Conduction Class B |
||||||||
|
|
||||||||
OTHERS |
|
||||||||

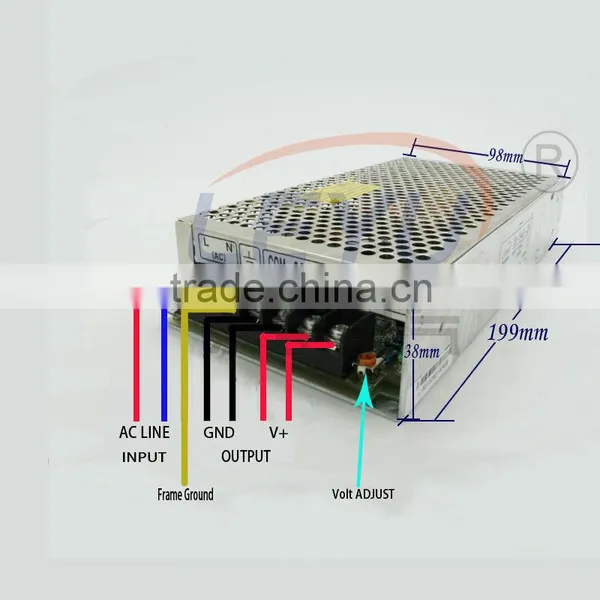

Dimension |
199*98*38mm (L*W*H) |
||||||||
Weight |
0.62Kg |
||||||||
Packing |
30pcs/18.6Kg/0.72CUFT |
||||||||
|
|
||||||||
NOTE |
|
||||||||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | |||||||||
Detailed photos :
Yes. we do .
2 .What certification you have for the switching power supply ?
We have CE , ROHS , CCC , ISO9001 , IP67
3.How to Contact Us ?
Send your inquiry Details in the below, Click "Send" Now !
