Specifications
20A rotary switch1.Rated current of rotary switch is 10A-160A
2.Functions:control switch and motor switch
3.OEM service
electrical universal changeover switch LW26S series 20A rotary switch
l Introduction

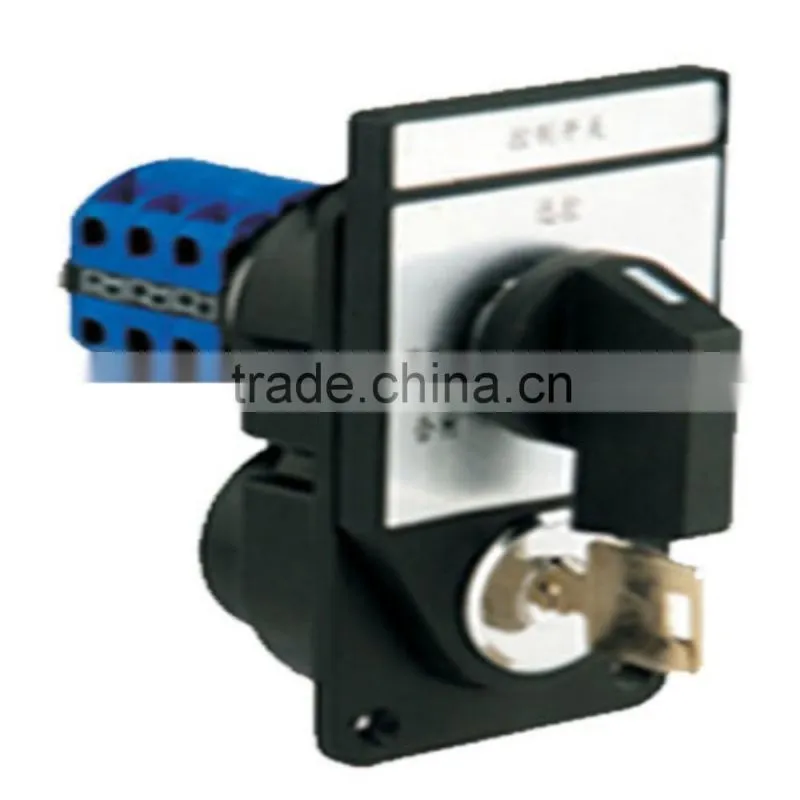

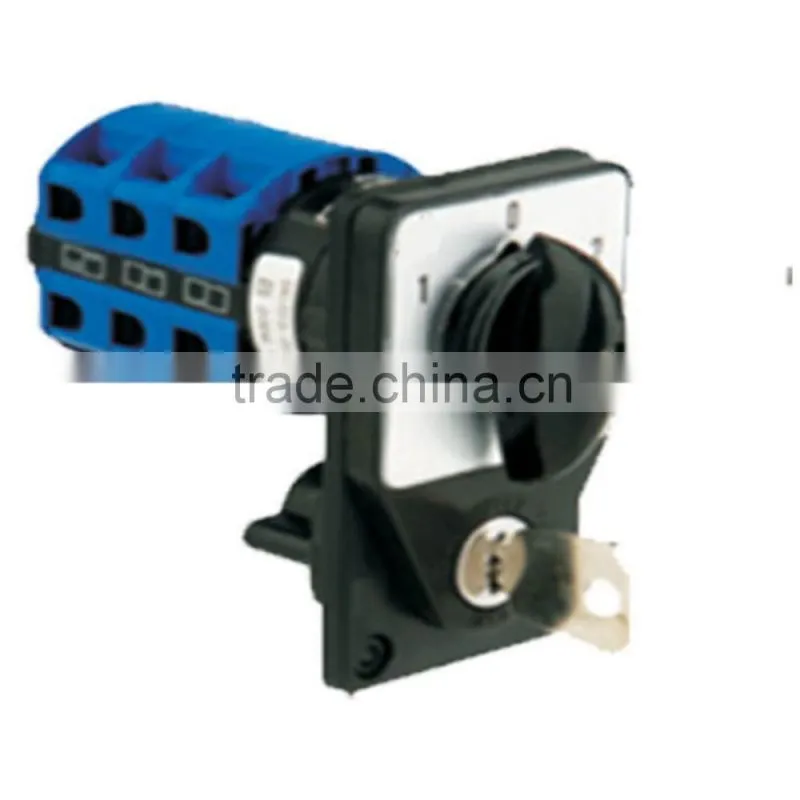

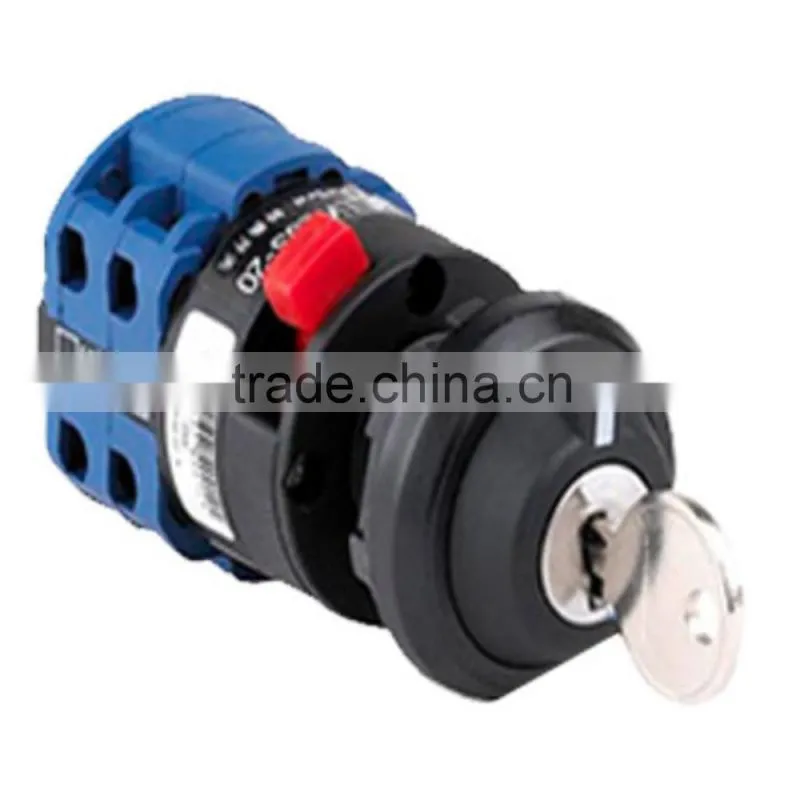

LW26S Key-lock type switchesare derivatives of LW26 rotary switches.Installed in equipments,which requires a key to lock the switch. It prevents the unauthorized presonnel from mis-operation.
LW26S Key-lock type switches comply with the GB 14048.3 and IEC 60947-3.
Technical parameters
Description |
LW26S-10 |
LW26S-20 |
LW26S-25 |
LW26S-32 |
LW26S-63 |
|
Rated working voltage Ue |
V |
440 |
440 |
440 |
440 |
440 |
Rated thermal current Ith |
A |
10 |
20 |
25 |
32 |
63 |
Rated working current Ie |
|
|
|
|
|
|
AC-21A |
A |
10 |
20 |
25 |
32 |
63 |
AC-22A |
A |
10 |
20 |
25 |
32 |
63 |
AC-23A |
A |
7 |
15 |
22 |
30 |
57 |
power |
P |
|
|
|
|
|
AC-23A |
KW |
3 |
7.5 |
11 |
15 |
30 |
Dimensions and installation
Description |
Dimensions(mm) |
Installation(mm) |
|||||
A |
C |
H |
L |
E |
F |
G |
|
LW26S-10 |
30 |
28 |
8.5 |
71.5 |
16.2 |
18 |
1.9 |
LW26S-20 |
48 |
43 |
15.6 |
76.5 |
Φ22.3 |
24.1 |
3.2 |
LW26S-20 |
64 |
43 |
15.6 |
76.5 |
Φ22.3 |
24.1 |
3.2 |
LW26S-20 |
64 |
43 |
15.6 |
76.5 |
Φ30.5 |
33 |
4.8 |
LW26S-25 |
48 |
45.2 |
15.6 |
83 |
Φ22.3 |
24.1 |
3.2 |
LW26S-25 |
64 |
45.2 |
15.6 |
83 |
Φ22.3 |
24.1 |
3.2 |
LW26S-25 |
64 |
45.2 |
15.6 |
83 |
Φ30.5 |
33 |
4.8 |
LW26S-32F |
48 |
48 |
15.6 |
86.5 |
Φ22.3 |
24.1 |
3.2 |
LW26S-32F |
64 |
48 |
15.6 |
86.5 |
Φ22.3 |
24.1 |
3.2 |
LW26S-32F |
64 |
48 |
15.6 |
86.5 |
Φ30.5 |
33 |
4.8 |
