LW26S 7,8,9,10 position rotary switch high efficiency cam switch 63A



  cam switch 63A

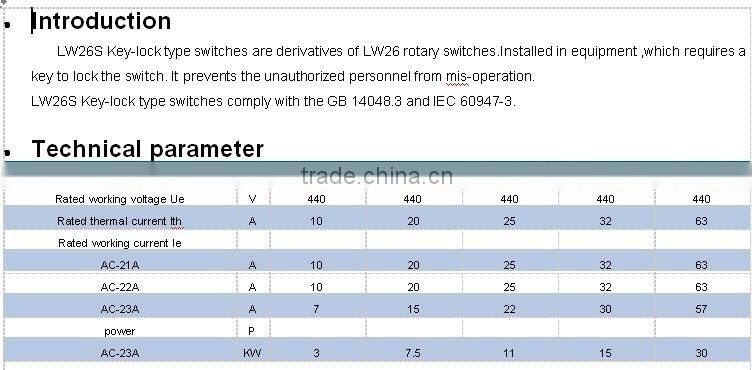

l Introduction
LW26S Key-lock type switchesare derivatives of LW26 rotary switches.Installed in equipments,which requires a key to lock the switch. It prevents the unauthorized presonnel from mis-operation.
LW26S Key-lock type switches comply with the GB 14048.3 and IEC 60947-3.



l Technical parameter



Description

LW26S-10

LW26S-20

LW26S-25

LW26S-32

LW26S-63

Rated working voltage Ue

V

440

440

440

440

440

Rated thermal current Ith

A

10

20

25

32

63

Rated working current Ie













AC-21A

A

10

20

25

32

63

AC-22A

A

10

20

25

32

63

AC-23A

A

7

15

22

30

57

power

P











AC-23A

KW

3

7.5

11

15

30

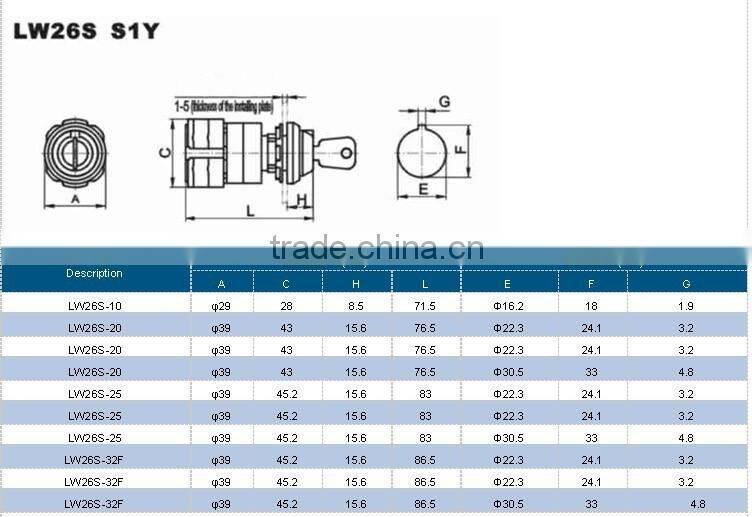

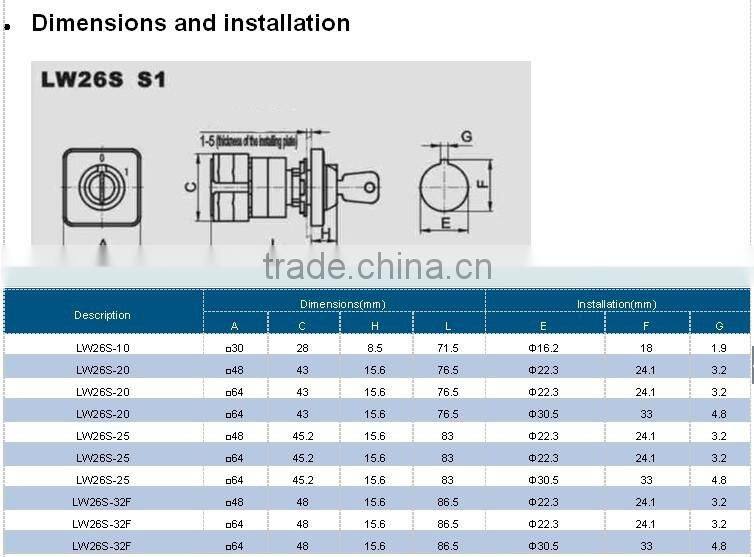

l Dimensions and installation




Description

Dimensions(mm)

Installation(mm)

A

C

H

L

E

F

G

LW26S-10

30

28

8.5

71.5

Φ16.2

18

1.9

LW26S-20

48

43

15.6

76.5

Φ22.3

24.1

3.2

LW26S-20

64

43

15.6

76.5

Φ22.3

24.1

3.2

LW26S-20

64

43

15.6

76.5

Φ30.5

33

4.8

LW26S-25

48

45.2

15.6

83

Φ22.3

24.1

3.2

LW26S-25

64

45.2

15.6

83

Φ22.3

24.1

3.2

LW26S-25

64

45.2

15.6

83

Φ30.5

33

4.8

LW26S-32F

48

48

15.6

86.5

Φ22.3

24.1

3.2

LW26S-32F

64

48

15.6

86.5

Φ22.3

24.1

3.2

LW26S-32F

64

48

15.6

86.5

Φ30.5

33

4.8








Description

Dimensions(mm)

Installation(mm)

A

C

H

L

E

F

G

LW26S-10

φ29

28

8.5

71.5

Φ16.2

18

1.9

LW26S-20

φ39

43

15.6

76.5

Φ22.3

24.1

3.2

LW26S-20

φ39

43

15.6

76.5

Φ22.3

24.1

3.2

LW26S-20

φ39

43

15.6

76.5

Φ30.5

33

4.8

LW26S-25

φ39

45.2

15.6

83

Φ22.3

24.1

3.2

LW26S-25

φ39

45.2

15.6

83

Φ22.3

24.1

3.2

LW26S-25

φ39

45.2

15.6

83

Φ30.5

33

4.8

LW26S-32F

φ39

45.2

15.6

86.5

Φ22.3

24.1

3.2

LW26S-32F

φ39

45.2

15.6

86.5

Φ22.3

24.1

3.2

LW26S-32F

φ39

45.2

15.6

86.5

Φ30.5

33

4.8

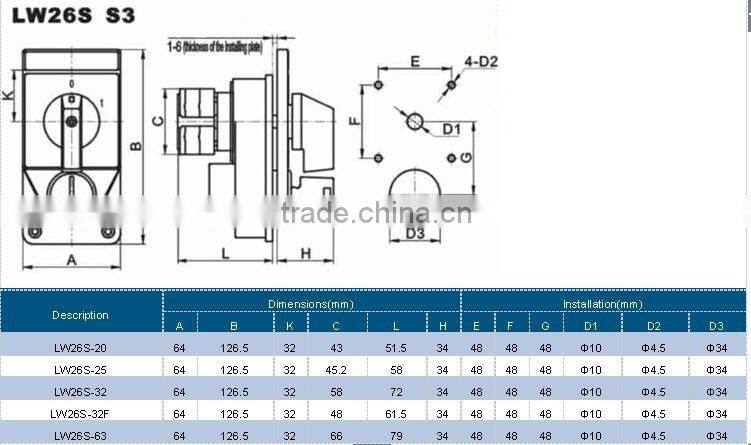

Description

Dimensions(mm)

Installation(mm)

A

B

K

C

L

H

S

E

F

G

D1

D2

D3

LW26S-20

48

84

24

43

51.5

32.5

1~4

36

36

40

Φ8.5

Φ4.5

Φ20

LW26S-25

48

84

24

45.2

58

32.5

1~4

36

36

40

Φ8.5

Φ4.5

Φ20

LW26S-32

64

112

32

58

72

34

1~6

48

48

48

Φ10

Φ4.5

Φ34

LW26S-32F

48

84

24

48

61.5

32.5

1~4

36

36

40

Φ8.5

Φ4.5

Φ20

LW26S-63

64

112

32

66

79

34

1~6

48

48

48

Φ10

Φ4.5

Φ34

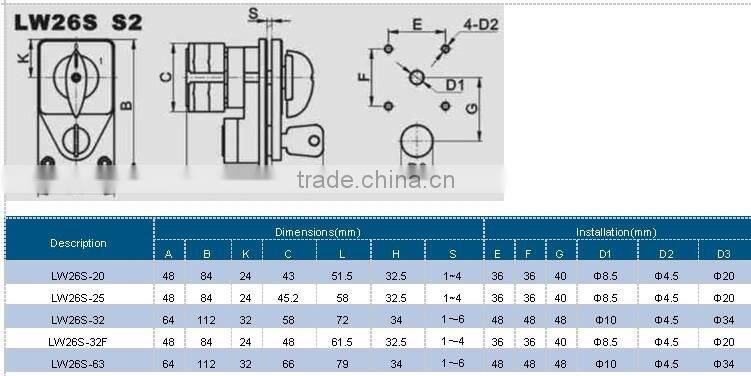

Description

Dimensions(mm)

Installation(mm)

A

B

K

C

L

H

E

F

G

D1

D2

D3

LW26S-20

64

126.5

32

43

51.5

34

48

48

48

Φ10

Φ4.5

Φ34

LW26S-25

64

126.5

32

45.2

58

34

48

48

48

Φ10

Φ4.5

Φ34

LW26S-32

64

126.5

32

58

72

34

48

48

48

Φ10

Φ4.5

Φ34

LW26S-32F

64

126.5

32

48

61.5

34

48

48

48

Φ10

Φ4.5

Φ34

LW26S-63

64

126.5

32

66

79

34

48

48

48

Φ10

Φ4.5

Φ34
