US$ 3 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HF
Model Number:
LW5D
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Change Over Rotary Switch LW5DUS$ 3 - 10MOQ: 10 Pieces -
LW26-25A Exactly Working 6 Position Rotary SwitchUS$ 5 - 10MOQ: 10 Pieces
-
CE ROHS Certificate Rotary Switch 4 Position LW26-20AUS$ 4.8 - 7.52MOQ: 10 Pieces
-
Hot Sell Electrical 4 Position Rotary Switch 10A, 20A, 32A, 63A With OEM ServiceUS$ 4.8 - 7.52MOQ: 10 Pieces
-
LW26GS 63A 4P 4 Position Rotary SwitchUS$ 4.8 - 7.52MOQ: 10 Pieces
Place of Origin
China
Brand Name
HF
Model Number
LW5D
Max. Current
160A
Max. Voltage
690v
Mechanical Life
long spin, 20000 times
Specifications
Control Rotary Switch LW5D1.Rated current of rotary switch is 10A-160A
2.Functions:control switch and motor switch

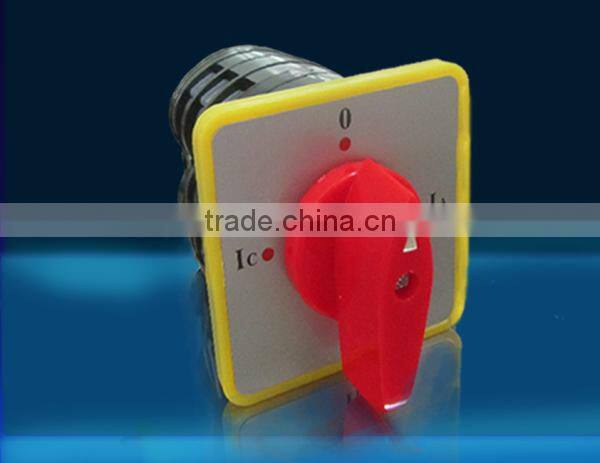

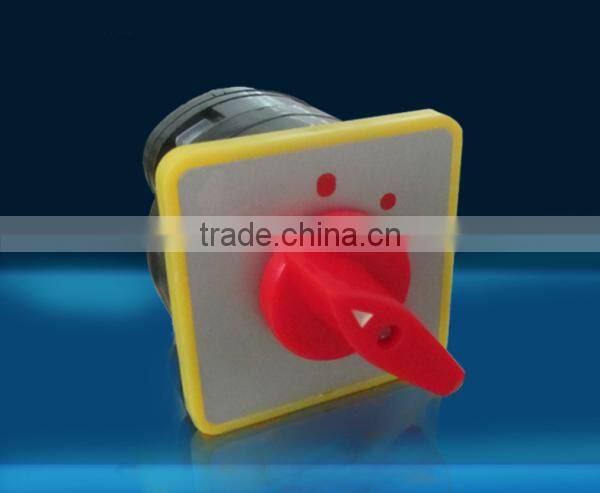

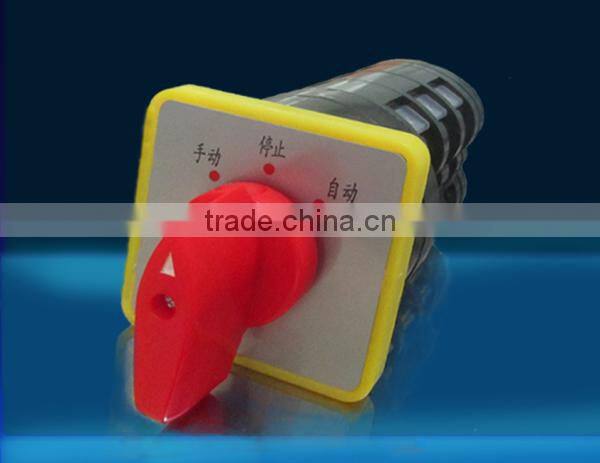

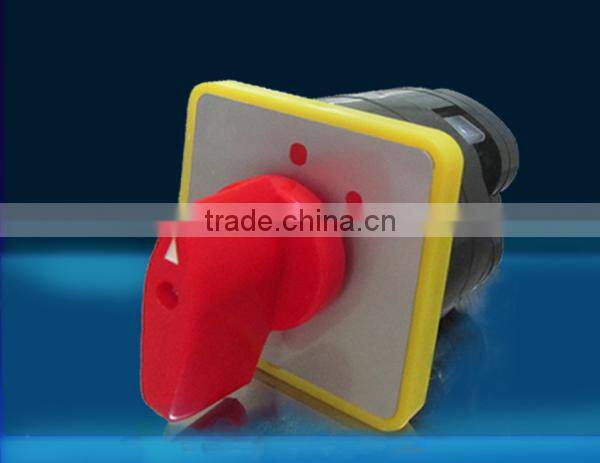

Control Rotary Switch LW5D
l Introduction
LW5D applied to change over of circuits,also for control of electrical measuring instruments and control of motors.
l Technical parameters
Uses |
| Master Control | Diredt control motor | ||||||
Rated thermal current | ITH | A | 16 | ||||||
Rated working voltage | Ue | V | 125 | 220 | 250 | 380 | 440 | 500 | 380 |
Rated working current | Le |
|
|
|
|
|
|
|
|
AC-15 |
| A |
| 4.6 |
| 2.6 |
| 2.0 |
|
DC-3 |
| A |
|
|
|
|
|
| 12 |
AC-4 |
| A |
|
|
|
|
|
| 3.5 |
DC-13Double breakpoint |
| A | 0.55 |
| 0.27 |
|
| 0.14 |
|
DC-13four breakpoint |
| A | 0.82 |
| 0.41 |
|
| 0.20 |
|
Mechanical life
Mechanical life without load:0.3×106times,operation frequency is 300 times/h..
Mechanical life with load:AC-15 DC-130.01×104times operation frequency is 300 times/h.
AC-30.1×104times operation frequency is 120 times/h.
AC-40.1×104times operation frequency is 120 times/h.
