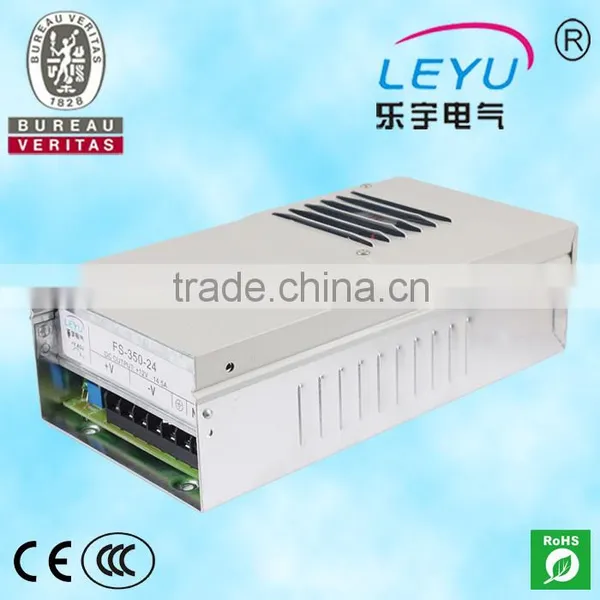

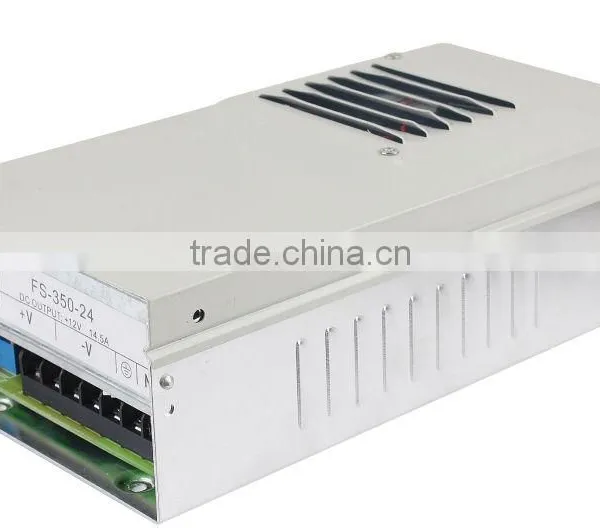

FS-350-12 Rainproof SMPS 350W 12V Switching Power Supply for Outdoor LED Screen

SPECIFICATIONS

OUTPUT

Model

FS-350-12

FS-350-15

FS-350-24

DC Voltage

 12V

 15V

 24V

Rated Current

 29A

 23.2A

 14.6A

Current Range

 0-29A

 0-23.2A

 0-14.6A

Rated Power

 348W

 348W

 350.4W

Ripple & Noise

 0-29A

 0-23.2A

 0-14.6A

Voltage Adj. Range

 10~13.2V

 13.5~18V

 20~26.4V

Voltage Tolerance

±1%

 ±1%

±1%

Inlet stability

±0.5%

 ±0.5%

 ±0.5%

Load stability

 ±1%

 ±1%

±1%

Setup,Rise,Hold Up Time

800ms,50ms,10ms/115VAC   300ms,50ms,80ms/230VAC

INPUT

Voltage Range

180~264VAC   47-63Hz

Efficiency

74%

78%

81%

Inrush Current

Cold-start current 35A

Leakage Current

<3.5mA/240VAC

PROTECTION

Over Load

105%~150%

Protection: Shut down o/p voltage, re-power on to recover

Over Voltage

115%~135%

Protection: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-20℃~+85V, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1950

EMC Standard

Design refer to FCC Part15 J Conduction Class A
