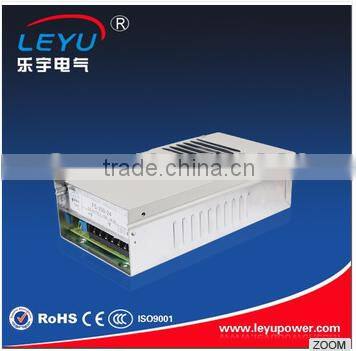

Leyu LED rainproof power supply 100W 24v 4.2a LED POWER SUPPLY
100W Single Output Rainproof SwitchingPower Supply FS-100 series
Features:
High efficiency, high reliability, rainproof
AC input range selected by switch
100% full load burn-in test
PROTECTION: Short circuit/Over load/Over voltage
Forced air cooling by built in DC fan
Built-in cooling Fan ON-OFF control
fixed switching frequency at 66 KHz
1 year warranty
SPECIFICATIONS | |||
OUTPUT |
| ||
Model | FS-100-12 | FS-100-15 | FS-100-24 |
DC Voltage | 12V | 15V | 24V |
Rated Current | 8.5A | 6.7A | 4.2A |
Current Range | 0-8.5A | 0-6.7A | 0-4.2A |
Rated Power | 102W | 100.5W | 100.8W |
Ripple & Noise | 100mVp-p | 100mVp-p | 100mVp-p |
Voltage Adj. Range | ±10% | ±10% | ±10% |
Voltage Tolerance | ±1% | ±1% | ±1% |
Inlet stability | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±1% | ±1% | ±1% |
Setup,Rise,Hold Up Time | 300ms,150ms,20ms | ||
|
| ||
INPUT |
| ||
Voltage Range | 90~132VAC/180~264 VAC 47~63Hz | ||
Efficiency | 83% | 84% | 86% |
Inrush Current | Cold start 40A/230V | ||
Leakage Current | <2mA/240VAC | ||
|
| ||
PROTECTION |
| ||
Over Load | 110%~150% | ||
Protection: Hiccup mode, recovers automatically after fault condition is removed | |||
Over Voltage | 13.8~16.2V | 17.25~20.25V | 27.6~32.4V |
115%~135% Protection: Shut down o/p voltage, re-power on to recover | |||
|
| ||
ENVIRONMENT |
| ||
Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | ||
Storage Temp., Humidity | -20℃~+85V, 10%~95%RH | ||
Temp. Coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes | ||
|
| ||
SAFETY |
| ||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
|
| ||
STANDARD |
| ||
Safety Standard | Design refer to UL1012, EN60950 | ||
EMC Standard | CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification | ||
|
| ||
OTHERS |
| ||

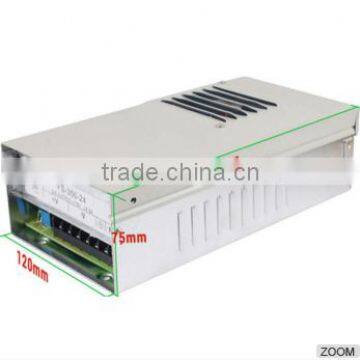

Dimension | 181*122*56mm(L*W*H) | ||
Weight | 0.82Kg | ||
We Leyu was founded in 2005,mainly produce AC to DC,DC to DC switching power supply,off grid tie high efficency power inverter and rotary switch.The products are approved by CE ROHS CCC IP67 Certificattion.Our enterprise was approved by ISO9001. Based on the trading belief "Focus on customers","realizing the satisfaction of customer" as our working goal.
Our company now has over 60 staffs,5 senior engineers,10 export salers ,also our company has established a strong partner-ship with over 50 factories.
Quality management is the life of our company.We enjoy a good reputation around China and Southeast Asia,the Middle east,South America,West Europe and so on.Relying on high quality and excellent services.
1.your inquiries will be replied within 24 hours;
2.OEM/OEM available:
a)Print logo on our products
b)Customized specification
c)Customized color package cases
d)Any require about our products, we will customized for you and put it into production in advance.
3.High quality, fashion design,reasonable&competitive price , fast delivery time.
4.After-selling service:

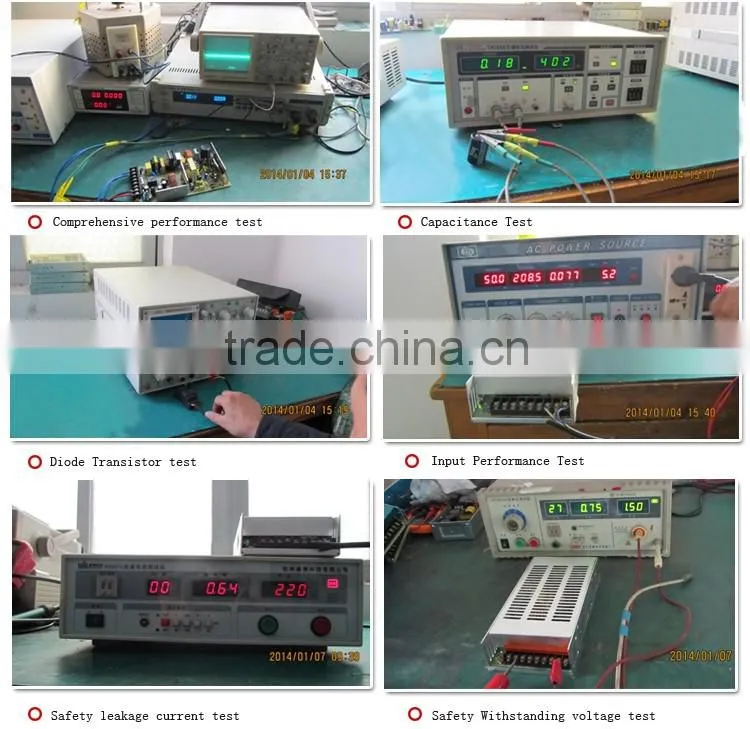

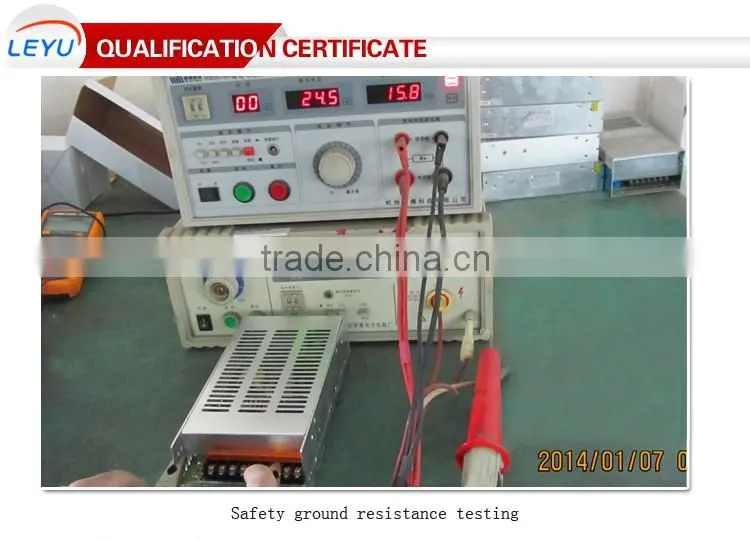

a)all products will adopt strictly testing (Burn-in test) before packing
b)All products will be packed before shipping
c)All products have 1-2 years warranty
5.Fast delivery:
Sample order in stock generally ,and 7-15 days for mass production
6.Payment term:
T/T , western union & paypal
7.Shipping
We have long-term cooperation with DHL,TNT,UPS,FEDEX,EMS,china post air mail, you also can choose your own shipping forwarder.
Welcome my dear friend ,looking forward to get your inquiry. All your inquiry will be replied within 24 hours. Please contact me!
FAQ -power inverter
1. Do you accept OEM for the power inverter ?
Yes. we do .
2 .What certificated do you have ?
CE RoHS ISO9001
3.How to Contact Us ?
Send your inquiry Details in the below, Click "Send" Now !
