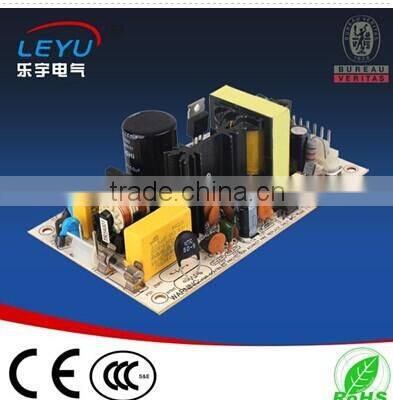

Professional Manufacturer PS-45-12 45W 12V Open Frame Power Supply

Professional Manufacturer PS-45-12 45W 12V Open Frame Power Supply photo-1
Professional Manufacturer PS-45-12 45W 12V Open Frame Power Supply photo-2
Professional Manufacturer PS-45-12 45W 12V Open Frame Power Supply photo-3
US$ 6.25 - 7.03 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Leyu open frame power supply 12v 5v
Model Number:
PS-45-12 open frame power supply 12v 5v
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Leyu open frame power supply 12v 5v
Model Number PS-45-12 open frame power supply 12v 5v
Output Power 51 - 100W
Output Type Single
Input Voltage Other, 85-264VAC 120-370VDC
Output Voltage 12V open frame power supply 12v 5v
Output Frequency 47~63Hz
Output Current 3.7A PS-45-12 open frame power supply 12v 5v

Professional Manufacturer  PS-45-12 45W 12V  open frame power supply





Product Description



45W Single Output Open Frame Switching Power Supply       PS-45 series

Low price and high reliability

105 output capacitor

AC input power suitable for the world

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

With short -circuit and overload protection

Compact size, light weight

100% full-load burning test

Installed with EMI filter,minimum wave



SPECIFICATIONS

OUTPUT





MODEL

PS-45-5

PS-45-12

PS-45-15

PS-45-24



DC Voltage

5V

12V

15V

24V



Rated Current

8.0A

3.7A

3.0A

1.9A



Rated Power

45W

45W

45W

45W



Ripple & Noise

100mV

100mV

100mV

150mV



Voltage Tolerance

±1%

±1%

±1%

±1%



Load Stability

±3%

±2%

±2%

±2%



Setup, Rise, Hold Up Time

200ms,100ms,30ms at full load









INPUT





Voltage Range

90-264VAC   47-63Hz; 120-370VDC



Efficiency

74%

76%

77%

78%



Inrush Current

Cold-start current 20A/115V   40A/230VAC









PROTECTION





Over Load

105%~150%



Protection type: plusing hiccup shutdown Reset:auto recovery









ENVIRONMENT





Working Temp., Humidity

-10~+50(Refer to output derating curve),20%~90%RH



Storage Temp., Humidity

-20~+85, 10%~95%RH



Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes









SAFETY





Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC



Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC









STANDARD





Safety Standard

Meet UL60950-1.TUVEN60950-1 approved



EMC Standard

EN5022 CLASS B EN61000-3-2-3     EN61000-4-2.3.4.5









OTHERS





Dimension

127*76.2*28mm(L*W*H)



Weight

0.19Kg



Packing

72PCS/15.6Kg/1.35CUFT

 Professional Manufacturer PS-45-12 45W 12V open frame power supplyProfessional Manufacturer PS-45-12 45W 12V open frame power supply





Application

Professional Manufacturer PS-45-12 45W 12V open frame power supply



Company Information

Company Information

Professional Manufacturer PS-45-12 45W 12V open frame power supply

Packaging & Shipping



Professional Manufacturer PS-45-12 45W 12V open frame power supply

Our Services

1.your inquiries will be replied within 24 hours;

2.OEM/OEM available:

a)Print logo on our products

b)Customized specification

c)Customized color package cases

d)Any require about our products, we will customized for you and put it into production in advance.

3.High quality, fashion design,reasonable&competitive price , fast delivery time.

4.After-selling service:

a)all products will adopt strictly testing (Burn-in test) before packing

b)All products will be packed before shipping

c)All products have 1-2 years warranty

5.Fast delivery:

Sample order in stock generally ,and 7-15 days for mass production

6.Payment term:

T/T , western union & paypal

7.Shipping

We have long-term cooperation with DHL,TNT,UPS,FEDEX,EMS,china post air mail, you also can choose your own shipping forwarder.

Welcome my dear friend ,looking forward to get your inquiry. All your inquiry will be replied within 24 hours. Please contact me!



FAQ

FAQ -power inverter



1. Do you accept OEM for the power inverter ?



                           Yes. we do .



2 .What certificated do you have ?



                        CE RoHS ISO9001



3.How to Contact Us ?



Send your inquiry Details in the below, Click "Send" Now !
