High Brightness Football Sports Events Led Display P20 Outdoor Full Color
US$ 1 - 999
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SZLCCL
Model Number:
P20
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Soccer Advertising 7 Motion Activated In-store Video LED Display P6 LED RGB PanelUS$ 300 - 4,000MOQ: 1 Square Meter -
Football Stadium LED Scoreboard Display P16NegotiableMOQ: 1 Square Meter
-
Best Sellers Products Football Scoreboard Led Display Outdoor Fullcolor P20 in China in AlibabUS$ 1 - 994MOQ: 1 Square Meter
-
Sport Football Led Display Outdoor Fullcolor P16 inUS$ 1,160 - 1,200MOQ: 1 Square Meter
-
Sport Led Display Football Pitch 20mm LED Programmable Advertising Displays Factory Soccer Led Sscoreboard DisplayUS$ 300 - 2,000MOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
SZLCCL
Model Number
P20
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
20mm
Specifications
a. Resolution 2500dots/ m2b.Waterproof IP65
c.Antistatic,anti-freeze
d.Video frequency synchronization
High Resolution Football Sports Events Led Display P20 Outdoor full color

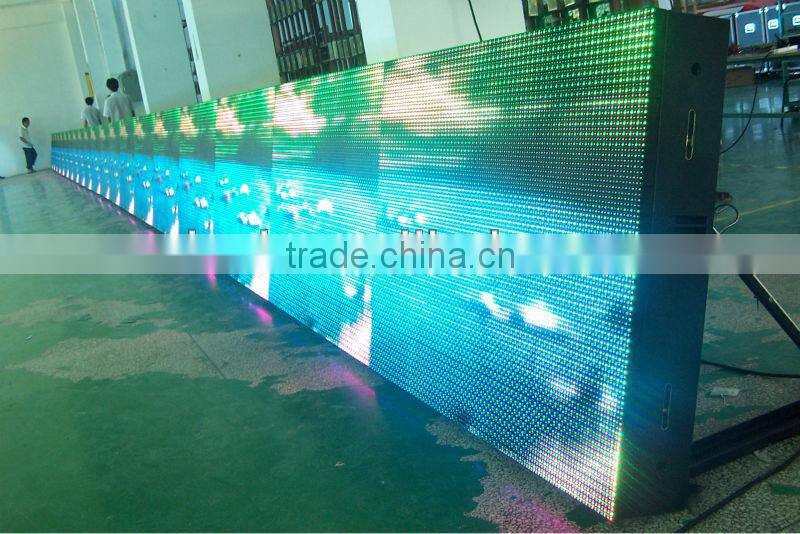

LED Outdoor Full Color Display Overview
1. LED Outdoor Full Color Display System is a multimedia hi-tech product that blended optical, electronic and acoustic signal processing technologies, and it includes the followings devices :
- Display screen
- Control computer and communication system
- Computer and its related peripheral
- Video peripheral
- System software
2. System Features:
- Available for connection to an external scanner, and accepting various pictures, graphs and handwriting inputs.
- Accepting video signal (TV, VCR, DVD), and showing dynamic images, and it also can show graphs and animations.
- The control computer can act as a workstation on network, and read real-time data from specified computer, and show them on its display.
- Various methods for images display, and easy replacement for arranged programs whenever (including play sequence, time length, etc.)
3. Protections for outdoor display
They include waterproof, sun-screen, antistatic, damp proof, anti-freeze (anti-thundering, if necessary) and other features.
4. Major Technical Data
| (1)Construction Description | ||||

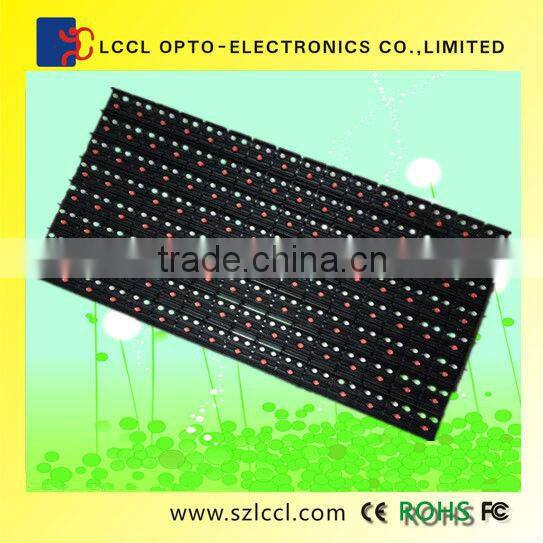

| Each pixel contain 2red 1 pure green 1 pure blue total 4pcs LED | ||||
| Pitch 20mm , resolution 2500dots/ m2 | ||||
| (2)Professional analysis | ||||
| Color matching analysis In order to make the color matching reach the best white balance effect,the color matching rate of different color brightness is R:G:B/3:6:1 | ||||
| (3)Pixel Parameter | ||||
| 1 | Pixel pitch | PH20 mm | ||
| 2 | Pixel configuration | 2R 1PG 1PB | ||
| (4)Tube Chip Parameter | ||||
| 1 | Red tube chip | 620-625nm | 800-1000mcd | ES |
| 2 | Pure green tube chip | 520-525nm | 1,900-2,000mcd | Silan |
| 3 | Pure blue tube chip | 465-470nm | 550-650mcd | Silan |
| (5)Screen Body Technical Parameter | ||||
| 1 | Brightness adjustment | 256 grade automatic, 8 grade manual | ||
| 2 | Drive Mode | Static constant current | ||
| 3 | View Angle | Horizontal 110 degrees;vertical 60degrees | ||
| 4 | Optimal Viewing Distance | ≥20 m | ||
| 5 | Grey Scale Recommended | 4096 level | ||
| 6 | Frame rate | 60 Hz | ||
| 7 | Refresh rate | 2000HZ(Guarantee that the picture will not tingle when the pick up camera is kinescoping) | ||
| 8 | Control Mode | Video frequency synchronization | ||
| 9 | Data Transmission | Parallel RS422 mode | ||
| 10 | Screen Lifespan | >100,000 hours | ||
| 11 | Blind Spot Rate | ≤0.0001 | ||
| 12 | Operating Voltage | AC110V/220V±15% 50~60HZ | ||
| 13 | Screen Body Power Consumption | Max.: 750W/ m2 Average: 220-450W/m2 | ||
| 14 | Cabinet Weight | 68KG | ||
| 15 | Control Distance | 100 meters(without relay)(optical fiber transmission 500M-10,000M) | ||
| 16 | System Working Environment Temperature | -40°C~+60°C | ||
| 17 | System Working environment humidity | 10%—99%RH | ||
| 18 | System Operating Platform | Windows98/me/2000/NT/XP | ||
| 19 | Protection Level | Front IP65 Back IP55 | ||
Specification and main technical index
