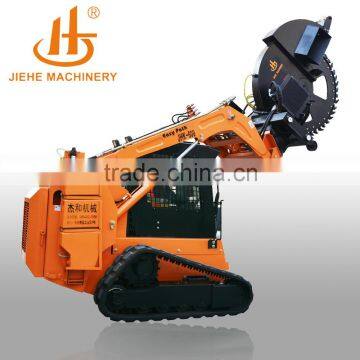

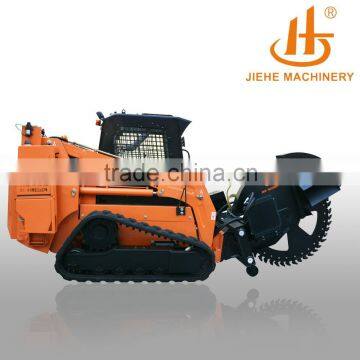

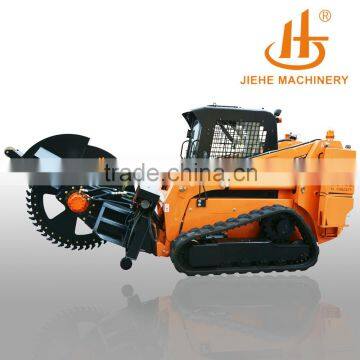

Concrete road trencher machine , cable trencher,tractor trencher(JHK-600)
Applications:
Our products are widely used in
- road grooving project
- Pipeline construction and maintenance
- The grooving and lay of wire and cable project
- micro-trencher projrct
- trencher of paddy land
- other fields.
Advantages:
- Lowest operation cost
- Highest working efficiency. Within 50mm width, the slotting jobs doesn’t impact the pavement structure.
- Lowest impact on the natural environment. For example: Control the mining earthwork quantity, backfill earthwork quantity and low pollutant emission (Very low energy consumption)
- Lowest impact on the social environment. For example: Lowest impact on the urban road traffic, effectively reduce the noise emissions.
Production photo:
Production construct capacity:

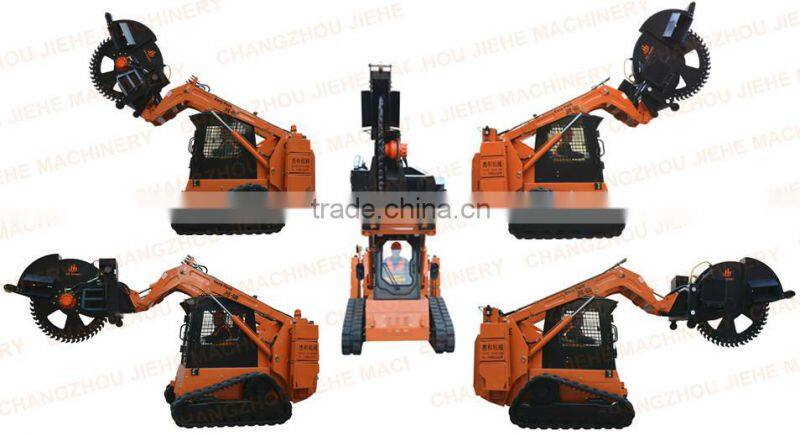

JHK-600 has advantageous construct capacity.It can even be adapted to concrete and asphalt road edge construction.
The cutter disc in the front can be left-right move between 60cm.The straight-bar can up-down move for 60° and cuutter
disc up-down move for above 90°.The highest distance of cutter disc from the land is about 4.2m.
operator can operate the machine in the cab or use the remote control away. remote control can be used within diameter 100m.
Paramete:
| Model | JHK-600 |
| Engine | WP4T120E203 |
| Bore stroke | 105*130(mm) |
| Rated power | 92(KW) |
| Rotating speed | 2200(rpm) |
| Number of cylinders | 4 |
| Max torque | 380(N.m) |
| Displacement | 4.5(L) |
| Max speed | 12-18(km/h) |
| Fuel | Diesel |
| Fuel tank capacity | 70(L) |
| Dimensions | 3560*1900*3060(mm) |
| Opersting Weight | 5.28(T) |
| Wheelbase | 1654(mm) |
| Track Lengh | 1500(mm) |
| Track Width | 320(mm) |
| Cutter disc Width | 30-50(mm) |
| Cutting depth | 300-500(mm) |
| Cutter disc diameter | 1550(mm) |
| Operating pressure | 16-21(Mpa) |
| Flow flux | 100-125(L/mm) |
Parts details :
Performance and Effect :
Following photoes token in Xinjiang China construction site.
JHK-600 construct effect in Xinjiang is 500mm depth and 50mm width.
JHK-600 max depth can be 600mm and max width can be 60mm.
If you have any other require contact us please, our R&D department will make customerize program for you.
Road backfill project:
If you choose JHK-600, our company will provide some suggestions about road backfill project.
We also have the high quaility machine for backfill project such as JHC-2000 Plate Compactor which is tailor made for JHK-600.
You will get affordable rate if buy them all.
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHE-200E packaging dimensions(mm) is: 3560*1900*3060
1 set 1 container normal
T/T 30% deposit,the balance against the copy of B/L Or L/C at sight.
A part of exhibition and results table.
