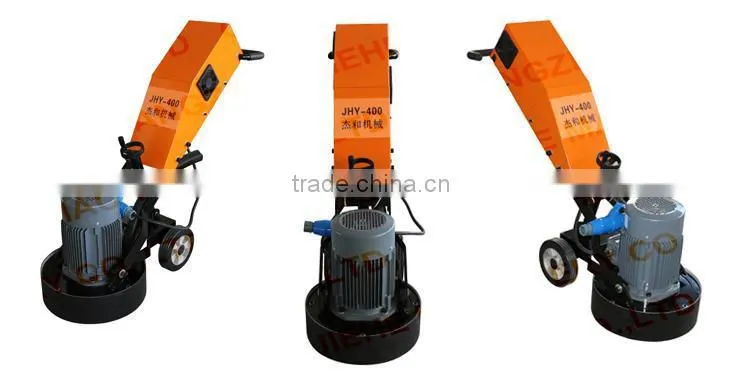

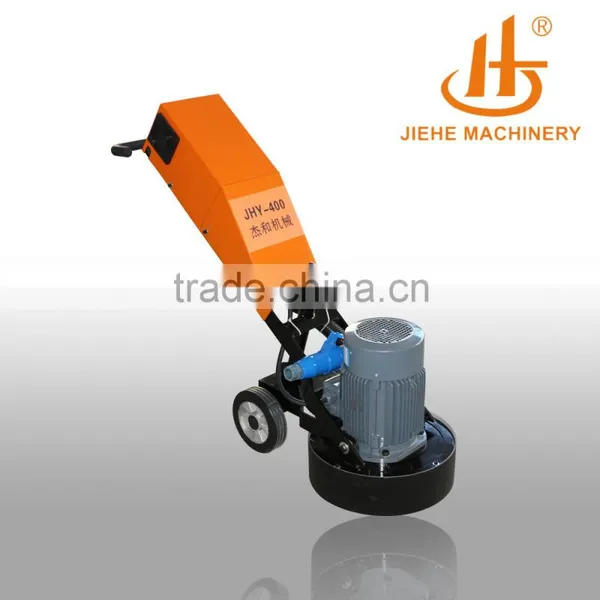

2016 Concrete grinder floor polisher for epoxy floor coating (JHY-400)
Applications
Our products are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
Advantages
1.Compact in size and adjustable in handle to reduce the dimensions for ease of transportation.
2.Integration of floor grinding with dust cleaning functions to allow dust free operation.
3.Diamond cutters with variable thickness can apply for all types of concrete floors, such as hardened and wear-resising surfaces, terrazzo, and emery surface.
4.Precision grinding cutter is designed for surface precision grinding and can also be used for leveling uneven joints on epoxy floor.
5.Operator can adjust the machine’s height to ensure level grinding.

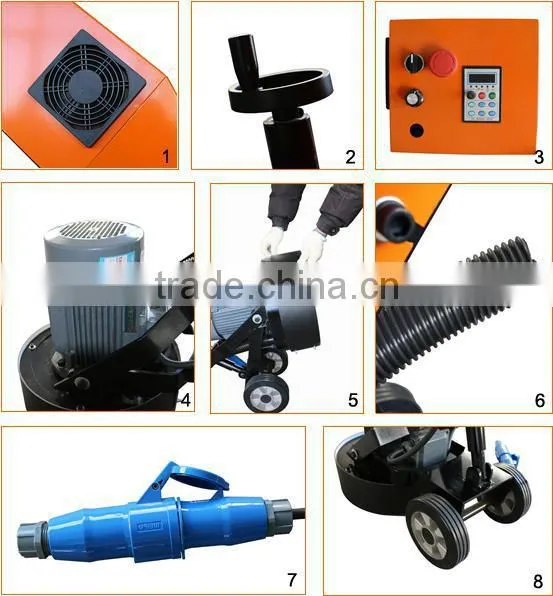

Product Details
Pic1: It’s vent of the grinding machine.
Pic2: The handwheel controls handle up and down.
Pic3: Operation panel
Pic4: 4KW Siemens Motor
Pic5: Dust cover
Pic6: It can be connected to vacuum cleaner to provide a dust-free environment.
Pic7: Rain-proof plugs makes it safer.
Pic8: Wheel
parameter
Model |
JHY-400 |
JHY-580 |
JHY-600 |
engine Model |
4KW Siemens Motor |
5.5KW Siemens Motor |
7.5KW Siemens Motor |
Voltage |
380V |
380V |
380V |
Current |
12A |
15A |
16A |
Working width |
400mm |
580*580mm |
600*560mm |
Water tank |
|
30L |
30L |
Speed |
0-1600rpm |
0-1800rpm |
0-1200rpm |
Dimensions |
1200*400*1050mm |
960*600*1050mm |
960*600*1050mm |
Packaging shipping dimensions |
1300*500*1150mm |
1050*690*1130mm |
1080*710*1080mm |
Packaging shipping weight |
95kg |
235kg |
330kg |
Operating weight |
75kg |
216kg |
305kg |
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHY-400 packaging dimensions(mm) is: 1300*500*1150mm.
30 sets 1 container normally.
Our company is a professional engaged in road maintenance machinery R & D, production sales and export of integrated enterprise. We have our own research and development department with excellent R&D team, advanced equipment, strict quality inspection system.We have got more than 20 patent certifications so far.
Certifications
Exhibition
A part of exhibition and results table.
