Home > Tools & Hardware > Abrasive & Grinding > Grinder > 7.5 KW Siemens Motor Granite Polishing Machine With Vacuum for Concrete Epoxy (JHY-600)

7.5 KW Siemens Motor Granite Polishing Machine With Vacuum for Concrete Epoxy (JHY-600)

7.5 KW Siemens Motor Granite Polishing Machine With Vacuum for Concrete Epoxy (JHY-600) photo-1
7.5 KW Siemens Motor Granite Polishing Machine With Vacuum for Concrete Epoxy (JHY-600) photo-2
7.5 KW Siemens Motor Granite Polishing Machine With Vacuum for Concrete Epoxy (JHY-600) photo-3
7.5 KW Siemens Motor Granite Polishing Machine With Vacuum for Concrete Epoxy (JHY-600) photo-4
US$ 1,200 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Manual, Manual
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port for 7.5 KW Siemens motor granite polishing machine with vacuum for concrete epoxy (JHY-600)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name JIEHEJIXIE
Model Number JHY-600
Voltage 380v, 380v
Power(W) 7500
Dimension(L*W*H) 960*600*1050mm
Weight 305kgs
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

7.5 KW Siemens motor granite polishing machine with vacuum for concrete epoxy (JHY-600)





Product Description



Applications

Our products are widely used in

  • municipal conservation,
  • road construction,
  • building construction,
  • flooring treatment(epoxy floor, wear-resistant floor)
  • other fields.



Specifications

  •  7.5KW siemens motor;
  •  Drum is heat treated specially;
  •  Good quality cutter;
  •  Drum can be replaced easily;

7.5 KW Siemens motor granite polishing machine with vacuum for concrete epoxy (JHY-600)

7.5 KW Siemens motor granite polishing machine with vacuum for concrete epoxy (JHY-600)

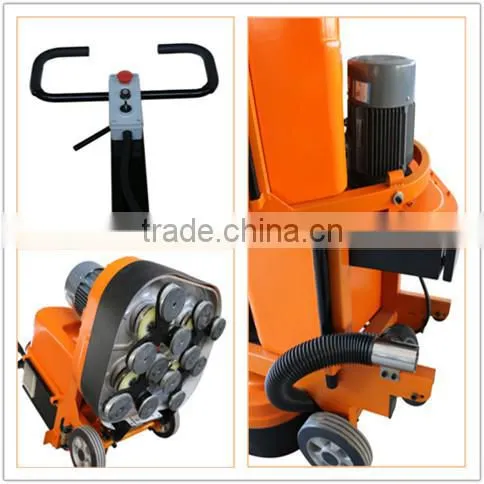

Pic1: Foldable handle

Pic2: 7.5kw siemens motor configuration

Pic3: Chassis grinding

           Adhesions grinder design,easy to replace

Pic4: Can be connected to a vacuum cleaner



parameter

Model

JHY-400

JHY-580

JHY-600

engine Model

4KW Siemens Motor

5.5KW Siemens Motor

7.5KW Siemens Motor

Voltage

380V

380V

380V

Current

12A

15A

16A

Working width

400mm

580*580mm

600*560mm

Water tank



30L

30L

Speed

0-1600rpm

0-1800rpm

0-1200rpm

Dimensions

1200*400*1050mm

960*600*1050mm

960*600*1050mm

Packaging shipping dimensions

1300*500*1150mm

1050*690*1130mm

1080*710*1080mm

Packaging shipping weight

95kg

235kg

330kg

Operating weight

75kg

216kg

305kg

Grinding Head Series

7.5 KW Siemens motor granite polishing machine with vacuum for concrete epoxy (JHY-600)

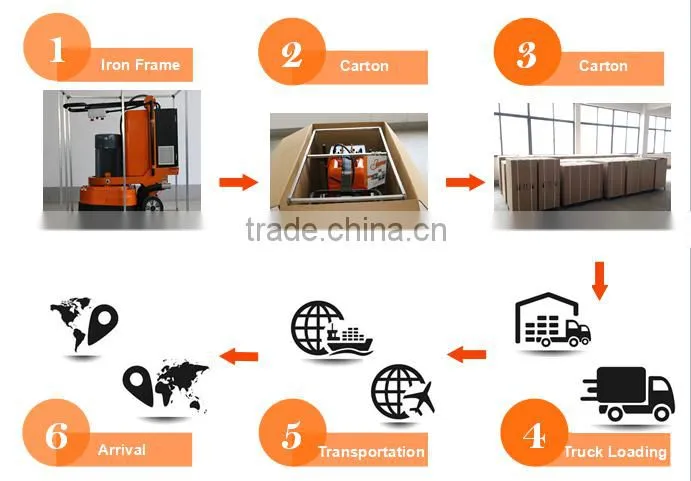

Packaging & Shipping

Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate

JHY-600.Packaging dimensions(mm) is: 1080*710*1080.
30 sets 1 container normally.
