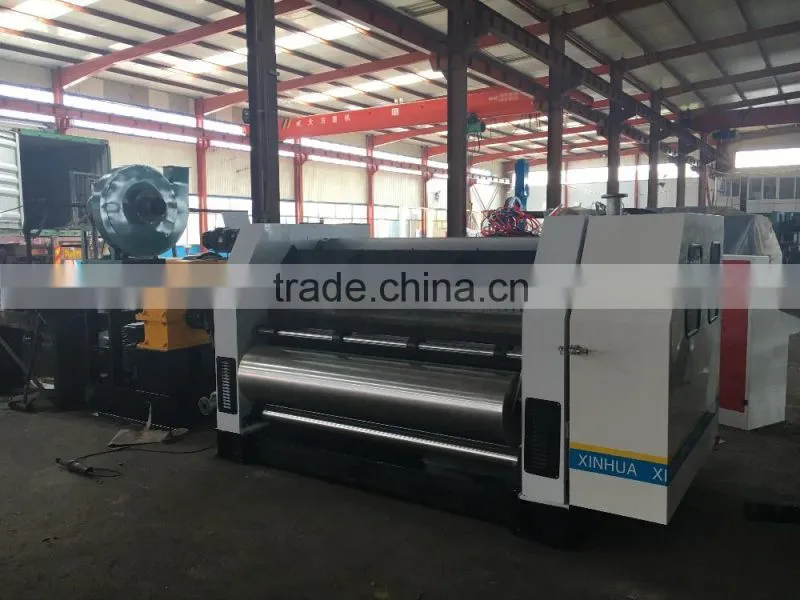

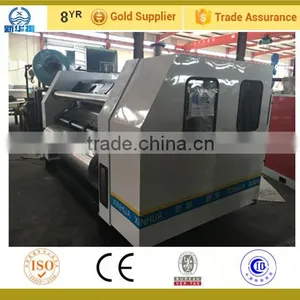

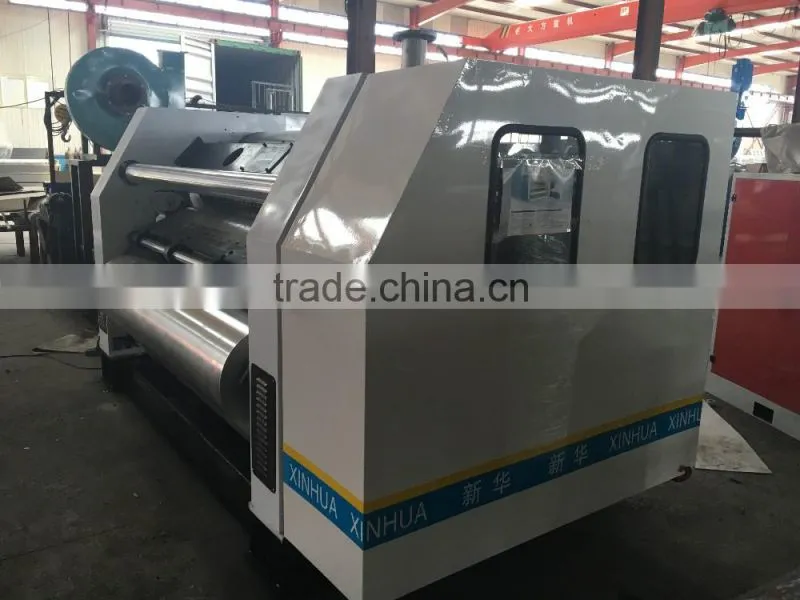

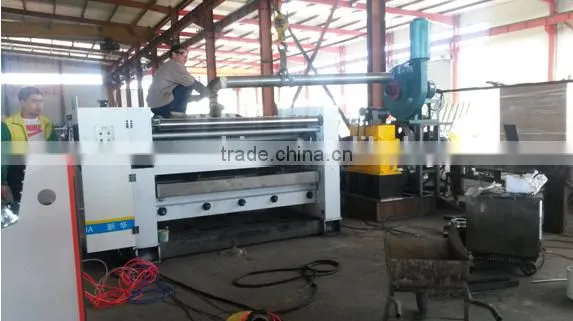

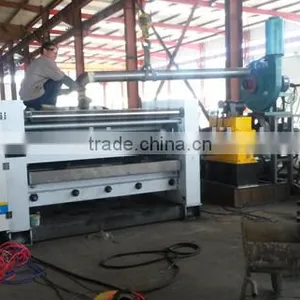

Help CenterSF-280F 1800mm Modular Structure Finger Less Single Facer
Related Products
-
SF-320F 1600mm Modular Structure Finger Less Single FacerUS$ 35,000 - 40,000MOQ: 1 Set -
30 Years of Experience-- High Speed Modular Structure Single FacerUS$ 30,000 - 58,000MOQ: 1 Set
-
2ply Corrugation Machine High Speed Modular Structure Single FacerUS$ 30,000 - 58,000MOQ: 1 Set
-
Xinhua Best Quality-- High Speed Modular Structure Single FacerUS$ 30,000 - 58,000MOQ: 1 Set
-
Flute Production Machine- High Speed Modular Structure Single FacerUS$ 30,000 - 58,000MOQ: 1 Set

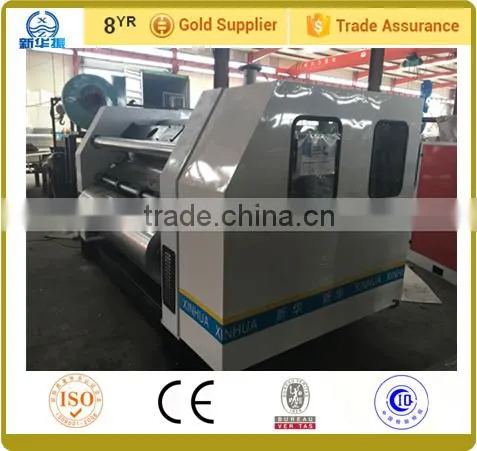

Structural Features:
1, Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan. With silencer, air supply and electric control focus on the same operation counters, not less than 1.5m away from the main engine, operation side is totally closed and full guarding.
2, Connect to the production management system also possible.

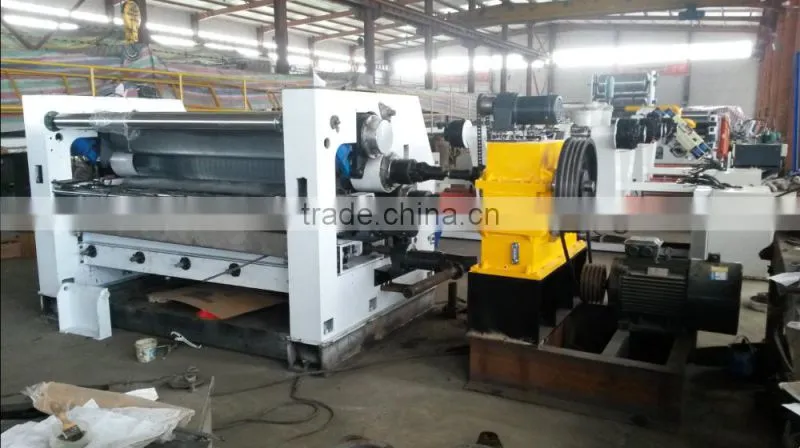

3, Engine base and wall plate: iron casting structure, thickness of the wall plate: 200mm, adopt independent speed changing box, and gimbal transmission.

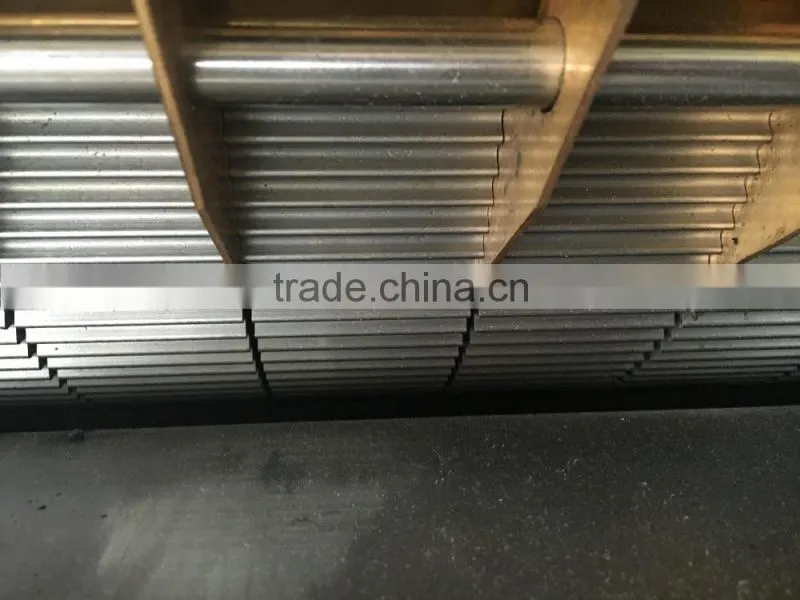

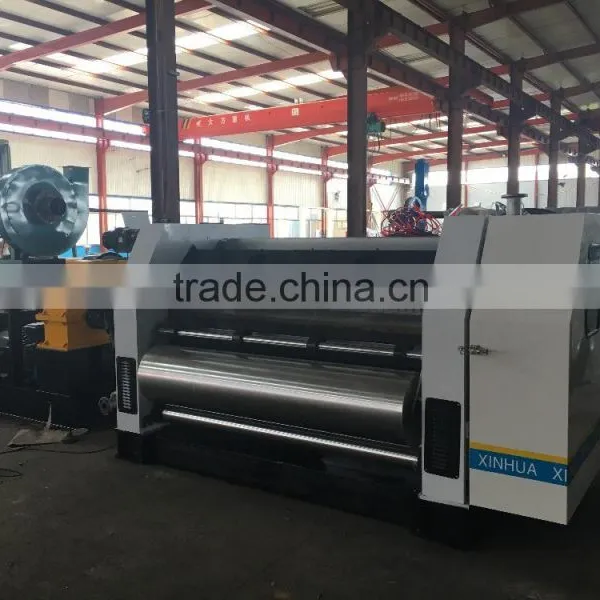

4, Diameter of main corrugated roll: ￠320mm, and are made of 48CrMo alloy steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding, the rigidity of surface is higher than HRC58. Corrugated roll and pressure roll of pivotal section adopt heat resisting bearings which are manufactured by Timken, America.
5, Pressure roll diameter: ￠330mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 45# medium carbon steel, hardening and tempering。
6, Glue wall plates adopt sliding structure, pneumatic control glue supply and glue back, diameter of the applicator glue roll : ￠242mm, surface are treated by polished and chrome plated.
7, The glue parts can be moved overall, changing applicator glue roll is quick and convenient. Electric separate glue and electric adjust the glue quantity. With digital display.
8, Corrugated roll and glue roll made in HeBei, the unilateral edge of corrugated roll is 0.15mm, and the unilateral edge of press roll is 0.075mm, add caging device.
9, Press roll adopt ￠140 double class cylinder
10, Pre-heater roll adopt seamless steel pipe which is produced by Tianjin Iron & steel group co,.ltd. Diameter ￠400mm, are all connected with metal soft pipe.
11, Provide rotary joints of all rollers 2 sets
12, Quick changing roller, paper braking protection, auto tracking glue.
Main Features
1)Working width: 1400-2200mm
2)Design speed： 150m/min
3)Temperature scope: 160-220 C
4)Pneumatic working pressure: 0.4-0.9Mpa
5)Steam pressure: 0.8-1.3Mpa
6)Flute profile (UV type or UVV type)
Machine Parts

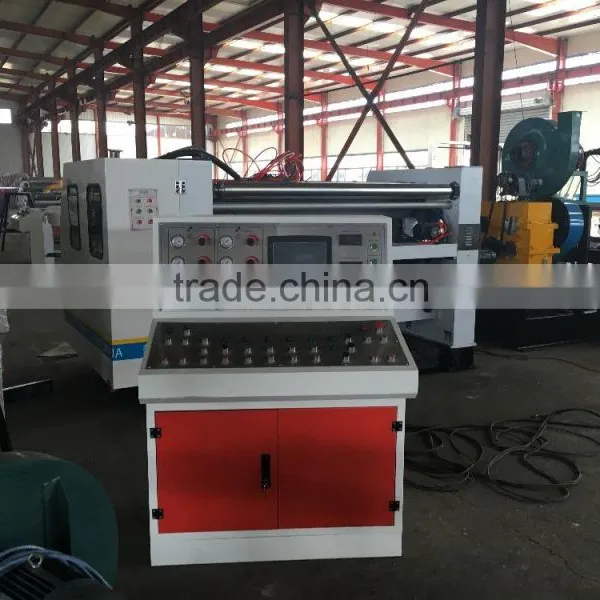

1, Adjust glue thickness: Quantity of pasting glue and controlling glue is controlled by the clearance between glue roll and doctor roll adjustment and the inter-face appear control, there are manual and automatic control.
a.Manual controlling: Press the button that controls motor to adjust the clearance, to ensure enough amount of paste.
b, Auto-controlling: The coder and PLC auto-controls according to change of speed.
2, Adjust advance and retreat of glue roll and pressure roll clearance: The electric motor drive
Main Features
1, With magic eye track set, break-paper detect system, glue roll and pressure roll automatic disengage when paper break.

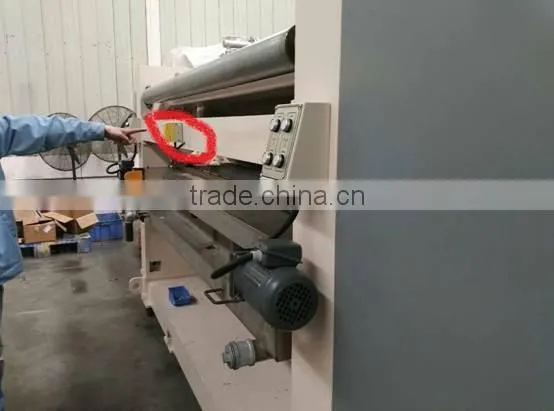

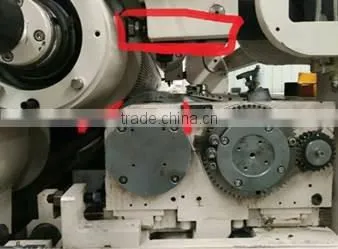

The yellow part is a light sensor which detects the running
condition of paper, in case paper gets cracking, it can recognize it and send signal to PLC to stop the machine to avoid more waste .
Machine Parts
5. Glue roll auto-revolve idly when stop machine.
Drive by R67-46 0.75KW gear reducer motor, avoid glue dry on roll when machine paused, two imported separate glue motor CV100-10S.

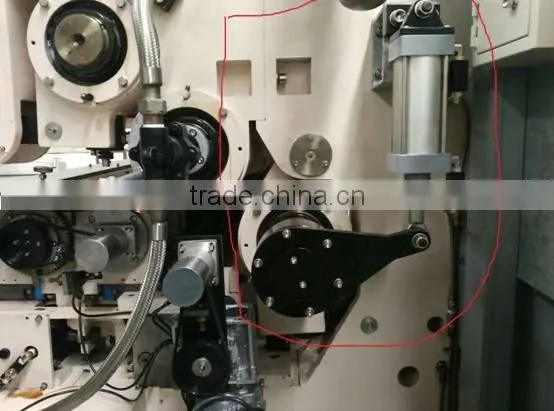

This is an auto rotation system for the roll when the machine is stopped. Not driven by motor but by a single direction bearing with the pneumatic syste
Main Features

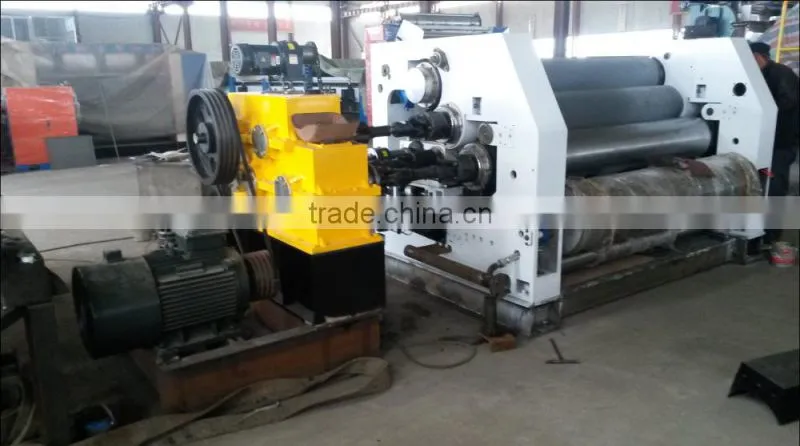

Gimbals Driving
0.75kw Glue roller independent driving motor
(for glue roller keep moving while main drive stops)
