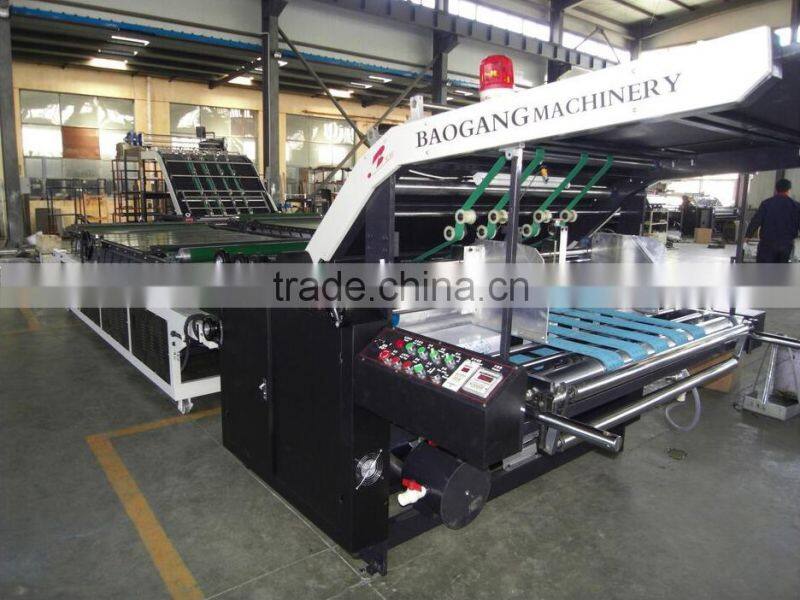

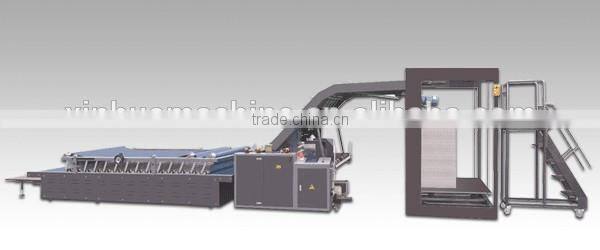

Help CenterSemi-auto Carton Box Flute Laminating Machine/corugated Box Making Machine
Related Products
-
Semi-auto Carton Box Flute Laminator/laminating MachineUS$ 9,000 - 20,000MOQ: 1 Set -
Flute Corrugated Cardboard Laminator MachineUS$ 40,000 - 60,000MOQ: 1 Set
-
Fully Automatic Flute Paper Laminating MachineUS$ 40,000 - 60,000MOQ: 1 Set
-
FM Semi-automatic Flute Laminating MachineUS$ 9,000 - 20,000MOQ: 1 Set
-
New Lift Type Corrugated Carton Box Laminating MachineUS$ 9,000 - 20,000MOQ: 1 Set
Introduction:
This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for the top paper of the Cardboard paper (Duplex paper) from 175-600GSM, kraft paper from 130-450GSM, E flute (for the semi-automatic flute laminator). The bottom paper of the A/B/C/E/F flute, four layers paper, such as: AB/BB/BC/BE/EE, gray board paper from 600GSM to 2000GSM and three layers and five layers corrugated paper.
Function description:

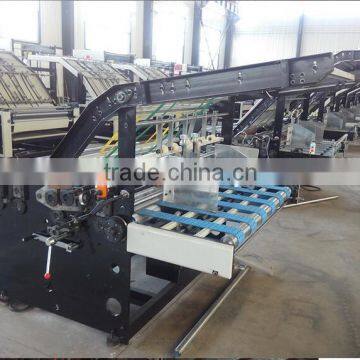

1. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking
2. The humanized design that manually feeding from the front makes delivery more easier and efficient.
3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

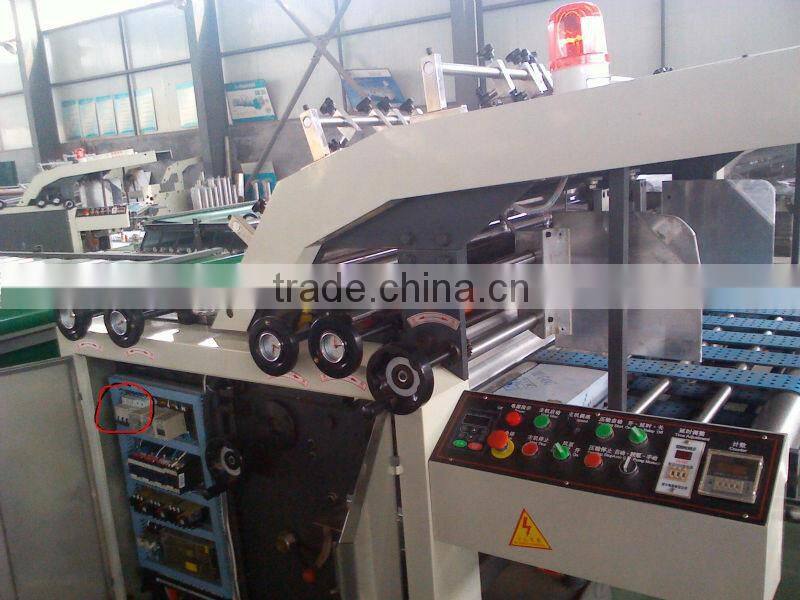

4. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm
5. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;

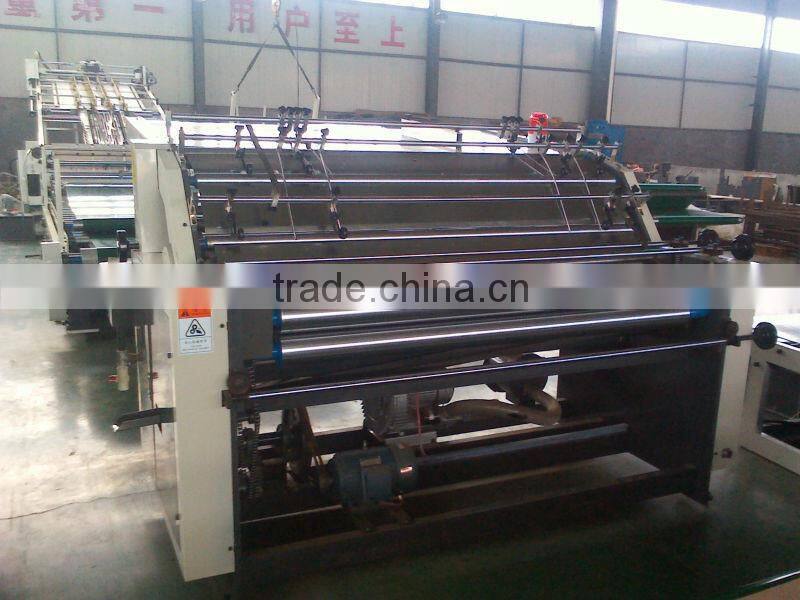

6. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.
7. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick
8. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
9. Suitable for color top sheet 175-600g and A/B/C/D/E/F corrugated paper laminating;
Color top sheet 175-600g and grey cardboard paper laminating
Main Technical Parameter:
Model |
Max.Sheet size |
Min.Sheet size |
Total power |
Speed |
Weight |
Measurement |
YB-1100B |
1100*1100mm |
350*350mm |
8kw |
0-90m/min |
4000kg |
8000*1770*1750mm |
YB-1300B |
1300*1100mm |
350*350mm |
8kw |
0-90m/min |
5000kg |
8000*1970*1750mm |
YB-1450B |
1450*1100mm |
350*350mm |
9kw |
0-90m/min |
6000kg |
8000*2020*1750mm |
YB-1650B |
1650*1300mm |
350*350mm |
11kw |
0-90m/min |
7000kg |
8000*2250*1750mm |
