Specifications
1.Telecommunication2.CATV
3.LAN & WAN
4.Network
5.FTTH

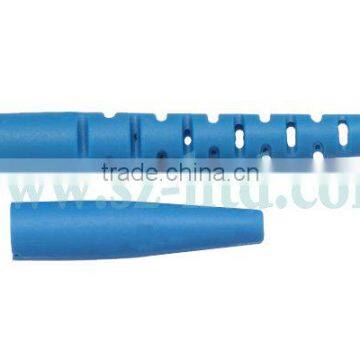

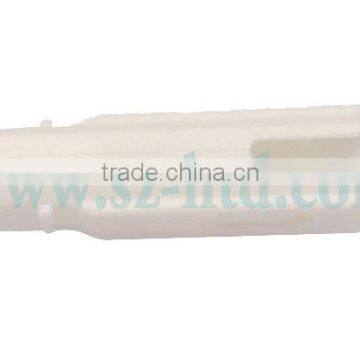

MU Fiber Optic Connector
Description
Fiber Optic Connectors are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard.
The performance of the Fiber optic connector has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others.
Features
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Boots in a variety colors
4. Telcordia style boots
5. Free-floating ceramic ferrule
6.The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit.
7.Clips are avaliable for SC and LC duplex connector.
8.PC and APC, UPC are availiable.
9. Good exchange ability and good durability
Applications
1. FTTH
2. WAN
3. LAN
4. Telecommunication
5. CATV
6. Optical Distribution Frame
Ferrule Hole Sizes
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
Performance Index
