Function and characteristic:

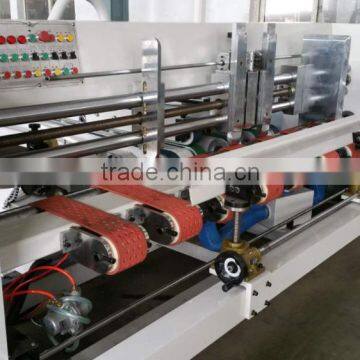

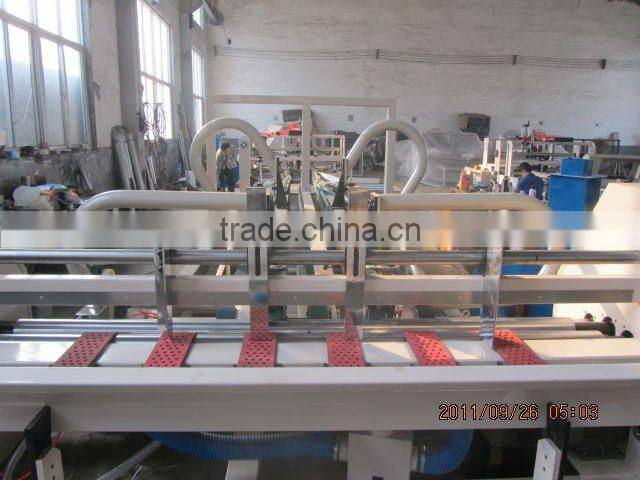

Feeding section
1.Vacuum suction feeding to feed warping paperboard easily.
2.Quality electromagnetic clutch and brake adopted, feeding section controlled independent ,operation easily.
3.Scorer wheel is adjustable, suit for 2-8 mm thick paperboard.
4.Second creasing structure can impress again the paperboard which was not creased well.
Glue &Folding section
1.Simple structure and high reliability , glue quality adjustable, cleaning easily .
2.Stainless steel glue wheel adopted, long life and saving glue cost
3.Imported quality rubber belt adopted ,automatic folding
4.With paperboard rectify device and creasing rectify device ;
Counter &stacker section
1.Stacking and counting are simple and reliable ;
2.Digital control , operation easily and reliable .No-stop put in data and automatic counting .
3.With rectification function
4.Paperboard counting and put out by pneumatic, stable and quick .
Description & Feature:

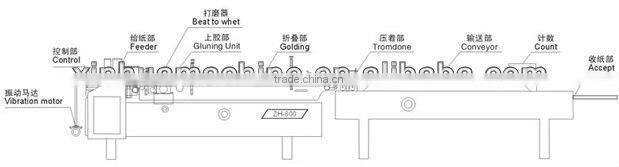

1.TB series Automatic folder gluer machine consists of three sections : vacuum feeding section ,glue& folding section, counter &stacker section.
2. Frequency conversion motor with quality inverter adjust speed.
3.PLC& Tounch control system for easy operation and running stable . Average speed 150 sheets/min. Energy Conservation and High Speed, Saving Labor Cost .
Feeding section
1.Vacuum suction feeding to feed warping paperboard easily.
2.Quality electromagnetic clutch and brake adopted, feeding section controlled independent ,operation easily.
3.Scorer wheel is adjustable, suit for 2-8 mm thick paperboard.
4.Second creasing structure can impress again the paperboard which was not creased well.
Glue &Folding section
1.Simple structure and high reliability , glue quality adjustable, cleaning easily .
2.Stainless steel glue wheel adopted, long life and saving glue cost
3.Imported quality rubber belt adopted ,automatic folding
4.With paperboard rectify device and creasing rectify device ;
Counter &stacker section
1.Stacking and counting are simple and reliable ;
2.Digital control , operation easily and reliable .No-stop put in data and automatic counting .
3.With rectification function
4.Paperboard counting and put out by pneumatic, stable and quick .
Description & Feature:
1.TB series Automatic folder gluer machine consists of three sections : vacuum feeding section ,glue& folding section, counter &stacker section.
2. Frequency conversion motor with quality inverter adjust speed.
3.PLC& Tounch control system for easy operation and running stable . Average speed 150 sheets/min . Energy Conservation and High Speed, Saving Labor Cost .
Model |
2000 |
2400 |
2800 |
Max cardboard |
1000*2000mm |
1000*2400mm |
1200*2800mm |
Min cardboard |
300*580mm |
300*800mm |
300*800mm |
Installable area |
2400*13500mm² |
2800*15500mm² |
3000*15500mm² |
Power |
11.5kw |
11.5kw |
11.5kw |
