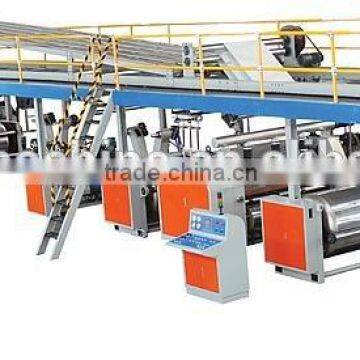

Automatic 3,5,7 ply corrugated cardboard production line/corrugated paperboard production line

 1 The corrugated cardboard production line is used in: base papers made into corrugated paperboard, adhesive, processing drying, definite form, slitting indentation, cross cutting into each kind of specification of corrugated carton box, and finally through the conveyor produce qualified products. High speed and high efficient flow operation.

2 We can produce high quality, medium, ordinary 3 ply, 5 ply and 7ply corrugated production line. Widths from 1300-2200mm, flute profiles: A, B, C, E, production speed from 30-150 meters/min .Customers specific needs catered for by experienced Corrugated Company. We can supply a complete corrugators or individual parts to complement your own line

The production line can be designed and manufactured according to clients’ requirements, such as layers of cardboard, max. width, speed, etc.

Main characteristics:

1 The material is high quality Chrome-Molybdenum steel.

2 The type of corrugation is UV type, which is widely used in the world. The cardboard shrinkage rate is low and the cardboard is of high quality and high strength.

3 Imported precision machine ,adopt the latest form grinding technology and cutting adopted , the precision of the corrugation dimension is assured to be up to national standard.

4 The teeth of corrugated roller are middle frequency quenched.

The top corrugated roller is drum type, with long service life.

We are a professional manufacturer of carton packing machine, with research, product, market and service. We supply the entire Hard Paperboard, Corrugated Cardboard & Carton Production Line, and various single machines can also be provided, which process from kraft reel paper into hard paperboard or corrugated cardboard sheet, and then to carton boxes.

Size, speed, color, left or right control, etc. could be made according to customer requests.

Our main products as following:

1. Flexo Printer, Rotary Slotter, Rotary Die-cutter, Stacker Machine (Units Optional, Semi-auto or Automatic)

These machines could do 1~5 colors printing, slitting, scoring, slicing, slotting, die-cutting, creasing, stacking, etc. on corrugated cardboard sheet to shaped carton sheet.

2. Folder Gluer, Stapler, Stitcher, Strapper Machine (Semi-auto or Automatic)

These machines could do folding, gluing, stapling, stitching carton sheet to carton box, and strapping carton boxes in bundles.

3. Single Machines

These machines are simple and easy to operate, suitable for various materials.

1). (Hot-stamp) Die-cutting & Creasing Machine

2). Platform Mould Die-cutting Machine

3). Four Shaft/Thin Blade Slitter Scorer

4). Four Link Eccentric Slotter

5). Automatic Partition Slotter

6). Simple Gluer

7). Pressing Machine

8). Semi-auto Laminator

9). Single/Double Creasing Machine

10). Automatic Reel Paper Sheeter, etc.

4. 2/3/5/7-layer Corrugated Cardboard Production Line (2/3/4-layer Hard Paperboard, Semi-auto or Automatic)

Higher productivity, better paperboard quality, adoption of central control system, simple and easy operation, convenient repair and maintenance, reliable and safe, greatly lower degree of manpower requirement; mainly consist of the following equipments.

1). Mill Roll Stand (Electrical or Hydraulic)

2). Preheater (Surface Paper & Core Paper)

3). Vacuum Adsorption Single Facer

4). Overhead Conveyer Bridge

5). Gluer (Duplex, Triplex, Quadruplex, etc.)

6). Double Facer (Heating Plate & Cooling Finalize)

7). Thin Blade Slitter Scorer

8). NC. Cut-off Machine

9). Stacker & Conveyer

10). Heating System (Steam, Oil, etc.)

11). Glue Kitchen System

12). Air Compression System

13). Electrical Control System, etc.

To make according to customer needs is available.
