Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 30kw Water Cooled Generator Diesel Engine Deutz Engine Hot Sale

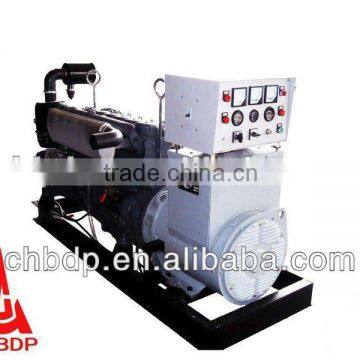

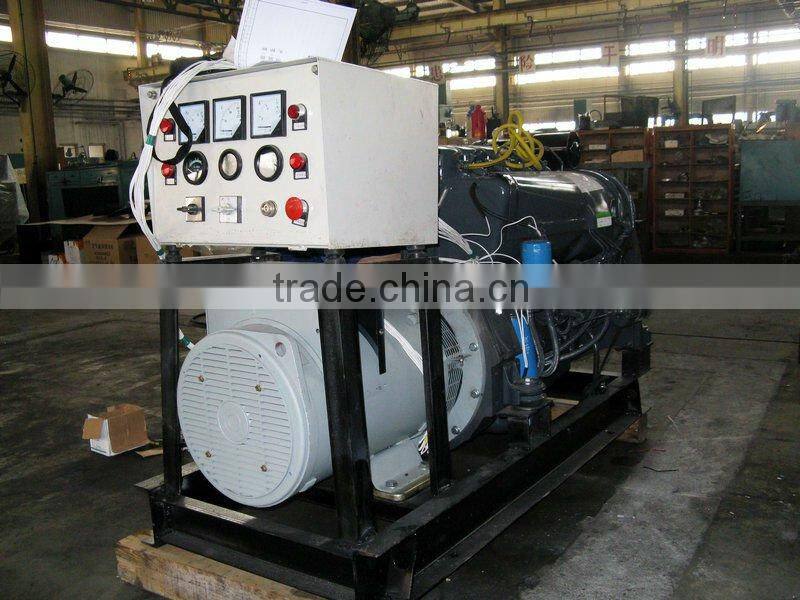

30kw Water Cooled Generator Diesel Engine Deutz Engine Hot Sale

Name: 30kw Water Cooled Generator Diesel Engine Deutz Engine Hot Sale
Brand: Huachai
SKU: 113030497
Availability: InStock

30kw Water Cooled Generator Diesel Engine Deutz Engine Hot Sale thumbnail-1

30kw Water Cooled Generator Diesel Engine Deutz Engine Hot Sale photo-1

US$ 6,030 - 6,560 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Huachai

Model Number:

30GF

Contact Supplier Request Quote Chat Now

Hebei Huabei Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Huachai

Model Number 30GF

Output Type AC Three Phase

Speed 1500/1800 rpm

Frequency 50/60HZ

Rated Power 30kw

Rated Voltage 230/400V

Rated Current 54A

Generator-set Specification Data
Generator-set		Diesel Engine (DEUTZ)		Alternator (Stamford)
Model	30GF	Model	TD226B-3D	Model	PI144J
Rated power	30KW	Prime power	45	Rated power	32KW
Max. power		Stand power		Rated voltage	400V
Rated voltage	400/230V	Rated speed	1500rpm	Efficiency	88.20%
Rated currency	54A	No. of Cylinder	3	Rated current	57A
Power factor	0.8	Bore/stroke	line	Power factor	0.8
Steady state volt deviation	≤±5%	Cylinder arrangement	105/120	Frequency	50Hz
Steady state frequency	≤2.5%	Fuel consumption	208g/KWh	Protection/ insulation	IP23/H
Frequency drop scope	≤8%	Start mode	24V electrical	Exciting way	brushless self-exciting
Phase	Three phase	Governor	mechanical	Weight
Dimension (mm)	1700×900×1100	Aspiration type	Turbocharged
Weight	850Kg	Cooling way	water cooled
		Displacement	3.12L
		Weight	450kg
Running Condition: According:GB/T2820;Altitude: 0~1000m;Ambient temperature: -35~40°C;Relative humidity: 95%
Standard scope of supply: Generator-set assembly(diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)
Option: base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system(including Weidian, Comap, Deep sea, etc).Different alternator brands available. One phase is optional.
Control system function: start and stop function. Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc. Failure protection(alarm and stop)function: over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc.
