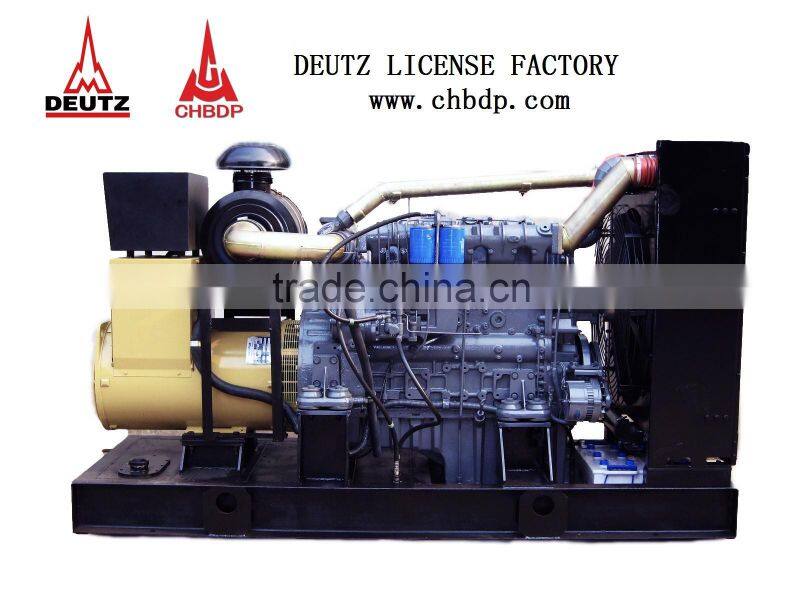

Help CenterDeutz Small Diesel Power Generator 45kw Genset Good Quality
Related Products
-
Air-cooled Deutz Engine Diesel Generator Good Quality Factory PriceUS$ 3,900 - 20,000MOQ: 1 Set -
Deutz Engine Huachai Diesel Generator Set 30kw Good QualityUS$ 5,000 - 7,000MOQ: 1 Set
-
Large Power 400kw Diesel Generator Set Genset Water CooledUS$ 37,000 - 41,000MOQ: 1 Set
-
Diesel Genset With BF6M1015C Deutz Engine Large Power Factory PriceUS$ 0.01 - 28,000MOQ: 1 Set
-
Deutz Diesel Engine Diesel Generator Water Cooled 40kw AC 3 PhaseNegotiableMOQ: 1 Set
(1)The generator sets choose the advanced air-cooled and water-cooled DEUTZ diesel engines as power and equipped with the first class manual, automatic and intelligent control system and also generators such as Siemens, Stamford, Marathon, Leroysomer, Lanzhou etc. both at home and abroad.
Generator-set Specification Data | |||||
Generator-set |
Diesel Engine (DEUTZ) |
Alternator (Stamford) |
|||
Model |
45GF |
Model |
F6L912D |
Model |
UCI224E |
Rated power |
43KW |
Prime power |
48KW |
Rated power |
48KW |
Max. power |
45KW |
Stand power |
|
Rated voltage |
400/230V |
Rated voltage |
400/230V |
Rated speed |
1500rpm |
Efficiency |
88.80% |
Rated currency |
77A |
No. of Cylinder |
6 |
Rated current |
86A |
Power factor |
0.8 |
Bore/stroke |
line |
Power factor |
0.8 |
Steady state volt deviation |
≤±5 |
Cylinder arrangement |
100/120 |
Frequency |
50Hz |
Steady state frequency |
≤2.5 |
Fuel consumption |
228g/KWh |
Protection/ insulation |
IP23/H |
Frequency drop scope |
≤8 |
Start mode |
12V electrical |
Exciting way |
brushless self-exciting |
Phase |
Three phase |
Governor |
mechanical |
Weight |
|
|
Dimension (mm) |
1870×770×1200 |
Aspiration type |
Naturally aspirated |
||
Weight |
900Kg |
Cooling way |
air cooled |
||
|
|
Displacement |
5.655L |
||
|
|
Weight |
410kg |
||
Running Condition: According:GB/T2820;Altitude: 0~1000m;Ambient temperature: -35~40°C;Relative humidity: 95% | |||||
Standard scope of supply: Generator-set assembly(diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket) | |||||
Option: base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system(including Weidian, Comap, Deep sea, etc).Different alternator brands available. One phase is optional. | |||||
|
Control system function: start and stop function. Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc. Failure protection(alarm and stop)function: over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc. | |||||
