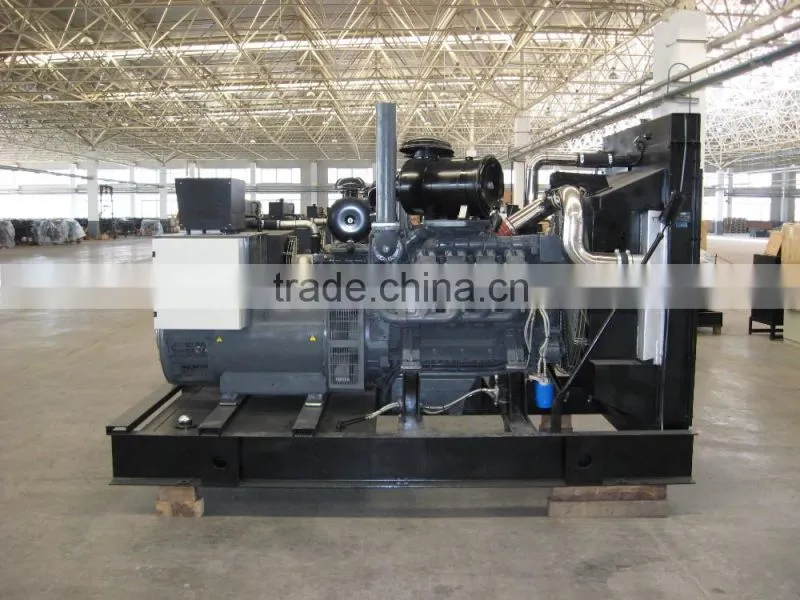

450kw Diesel Generator Deutz Engine Bf8m1015cp Stable AC 3 Phase Engine

Name: 450kw Diesel Generator Deutz Engine Bf8m1015cp Stable AC 3 Phase Engine
Brand: Huachai
SKU: 113029655
Availability: InStock

450kw Diesel Generator Deutz Engine Bf8m1015cp Stable AC 3 Phase Engine thumbnail-1

450kw Diesel Generator Deutz Engine Bf8m1015cp Stable AC 3 Phase Engine photo-1

US$ 0.01 - 37,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Huachai

Model Number:

450GF

Contact Supplier Request Quote Chat Now

Hebei Huabei Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Huachai

Model Number 450GF

Output Type AC Three Phase

Speed 1500rpm/min

Frequency 50HZ

Rated Power 450kw

Rated Voltage 400/230V

Rated Current 812A

Engine Features:

1.Deutz brand diesel engine, single cylinder, single head, AC three phase, high-speed 4-stroke,V-90°shape

2.Turbocharged, inner oil pipe, inner water channel, four valve, central top-mounted 8 hole fuel injector

3.Electronic Governor

4.Bosch/Weifu Fuel injection pump, electronic motor starting system

5.Forged steel crankshaft ( imported from Deutz AG Germany), cast iron cylinder and replaceable wet type cylinder liner, crankshaft(imported from Deutz AG Germany), main bearings and big end bearings (imported from Deutz AG Germany)

Alternator Features:

1.Meccalte/Stamford/Customized

2.Brushless, 4 poles,rotation magnet, IP23(NEMA1)4.H class insulation system

Control Panel:Deep Sea

1.Automatic control panel, LCD display

2.Emergency stop

Generator-set Specification Data
Generator-set		Diesel Engine (DEUTZ)		Alternator (Stamford)
Model	450GF	Model	BF8M1015CP-LA G4	Model	HCI5E
Rated prime power	450KW	Prime power	490KW	Rated power	488KW
Standby power	490KW	Stand power	530KW	Stand power	400V/230V
Rated voltage	400/230V	Rated speed	1500rpm	Efficiency	94.90%
Rated frequency	50Hz	No. Of Cylinder	8	Rated current	878A
Rated currency	812A	Bore/stroke	132/145	Power factor	0.8
Power factor	0.8	Cylinder arrangement	V	Frequency	50Hz
Steady state volt deviation	≤±%1	Fuel consumption	208g/kwh	Protection/ insulation	IP23/H
Steady state frequency	≤1.5%	Start mode	24V electrical	Exciting way	brushless self-exciting
Frequency drop scope	≤5%	Governor	electronic	Weight	1498kg
Phase	three phase	Aspiration type	Turbocharged inter-cooled
Base Frame	steel	Cooling way	Water cooled
Dimension (mm)	3120×1650×2015	Displacement	15.874L
Weight	3500kg	Weight	1060kg
Running Condition:According:GB/T2820;Altitude:0~1000m; Ambient temperature:-35~40℃; Relative humidity :95%
Standard scope of supply:Generator-set assembly(diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)
Option :base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system(including Weidian, Comap, Deep sea, etc). Different alternator brands available. One phase is optional.
Control system function:start and stop function. Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc. Failure protection(alarm and stop)function:over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc.
