RGB led dmx512 controller(Constant Current 700mA)

Specifications

led DMX Decoder (Constant Current) /350ma DMX RGB controller / Dmx512 system controller / DMX512 component / DMX decoder Module



Item No.: SW-DMX-D35
Name: LED DMX Decoder (Constant Current)
1 Constant Current DMX Decoder 350mA output.
2 Work between DMX Digital console and high power LED products.

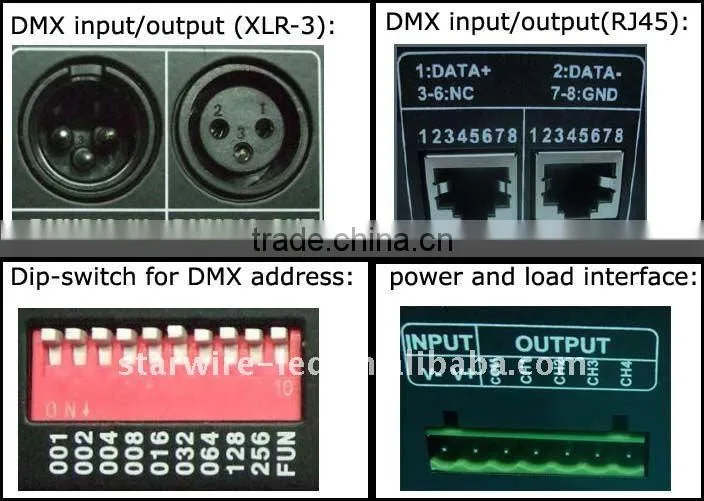

3 With RJ45 & XLR 3 interface.
4 With DIP-switch can set DMX address independently.
5 When using without DMX digital console the DMX decoder can act as normal RGB controller with initial 24-functions.



Working Temperature:	-20-60
Voltage:	12-24V
Output:	3 channels
Grayscale	256
The number of occupied channel:	3
Connecting mode	common anode
External dimension:	L165XW68XH40mm
Packing size:	L180XW95XH60mm
Net weight:	320g
Gross weight:	355g
Static power consumption:	< 1W
Output current:	each channel 350mA

We also provide a full solution:

LED RGB Module, Constant voltage DMX decoder, RGB Strip. strip connector.
