3535 32W Led Linear Pendant Light1. hanging ,wall mounted , ceiling installation
2. DC24V 144led 2835 chip
3. CE.ROHS
3535 Led Linear Lighting 32W Led Pendant Light
Features for Led Linear Lighting 32W :
1. Energy saving, no UA, infrared and mercury pollution, conform to the requirements of the ROHS.
2. Adopt high quality SMD LED, high brightness, bright color, the color temperature can be chosen according to personal preferences.
3. It saves more than 50% energy compared with the traditional lamp.
4. Optional installation: hanging, wall mounted, ceiling installation.
5. Long life span, the life can be over 30,000hrs (The life is not equivalent to the warranty period).

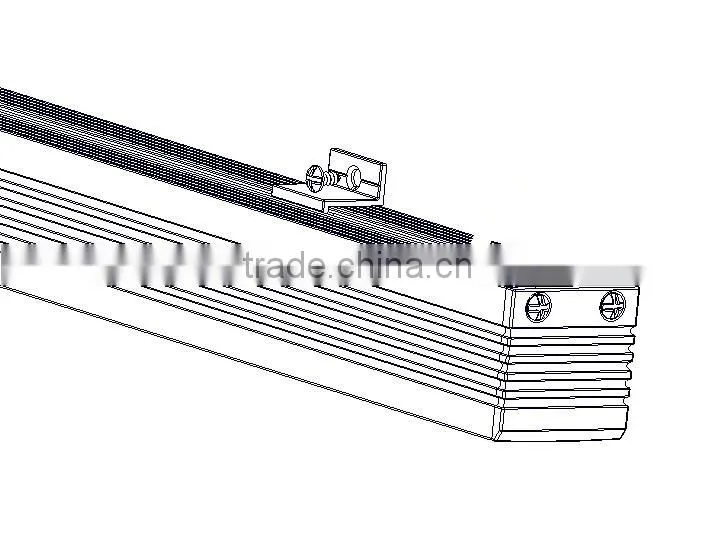

Installation accessories:
Specifications for Led Linear Lighting 32W :
| Item No | SW-A104T-F2835X36-4-WF5 |
| Dimension | 1021*35*35MM |
| Operating Voltage | DC24V |
| Current (MAX): | 1.3A |
| Power(MAX): | 32W |
| IP rate: | IP40 |
| Lamp color: | Silver white |
| Surface Finish: | Diffused |
| LED type: | 2835 SMD |
| LED Quantity (PCS): | 144 led |
| Operating Temperature: | -20-60℃ |
| Color Temperature | 2800-3000k 4000-4500k 6000-6500K |
| Luminous flux(LM): | 1860lm 2050lm 2140lm |
| CRI: | 80 |
| Beam angel: | 120 |
| Lamp net weight(KG): | 0.62 |
| Accessories net weight(KG): | 0.07 |

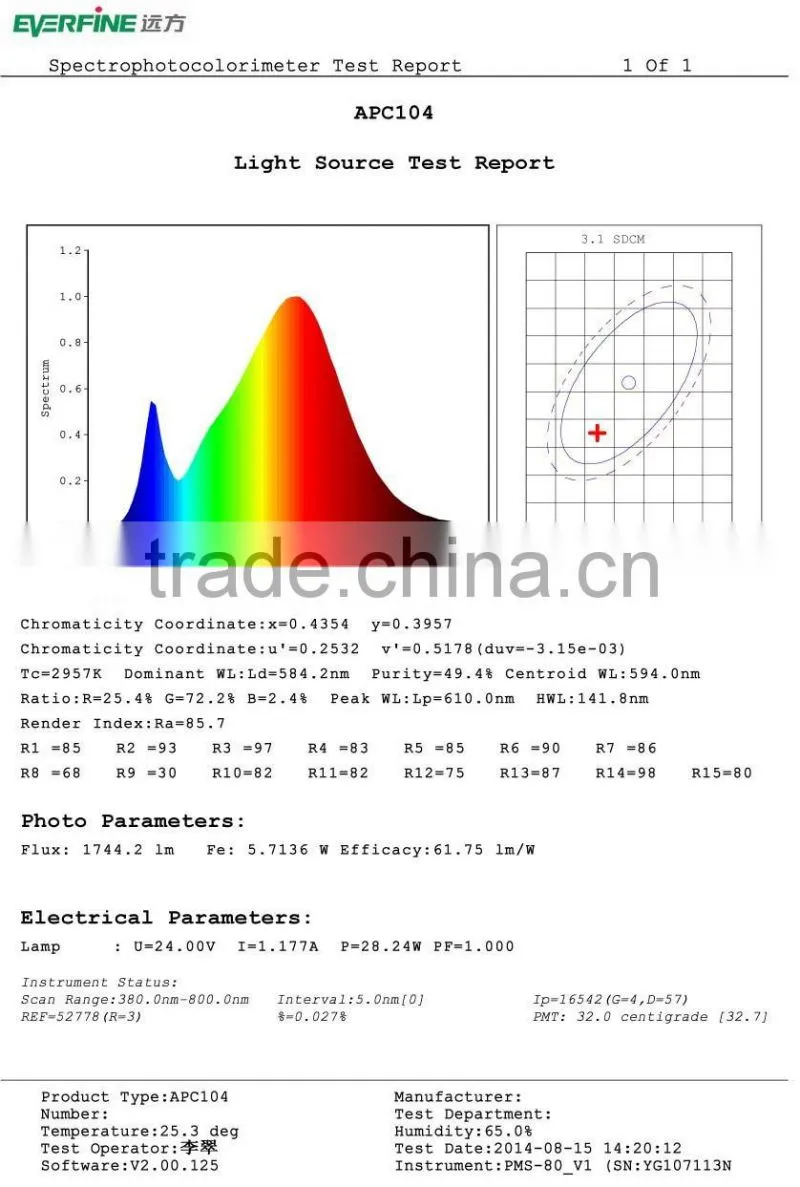

Photoelectric test with integrating spheres (WW) :

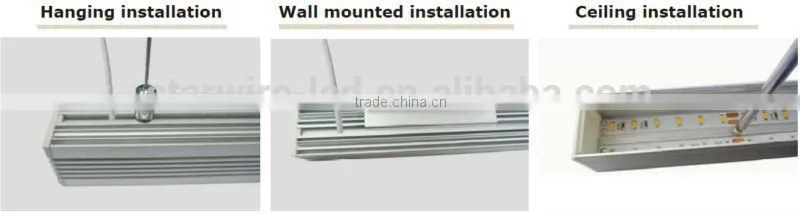

Installation for Led Linear Lighting 32W :

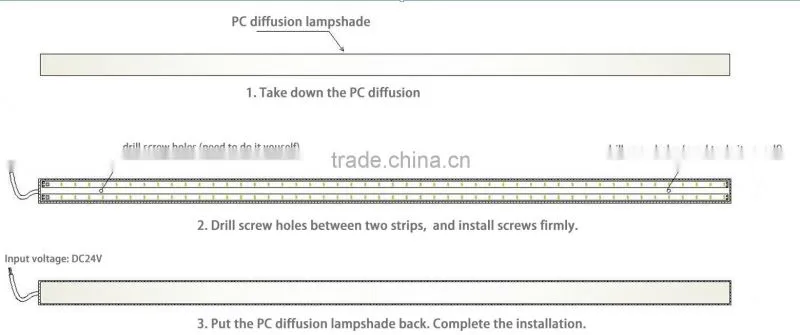

1. Ceiling installation

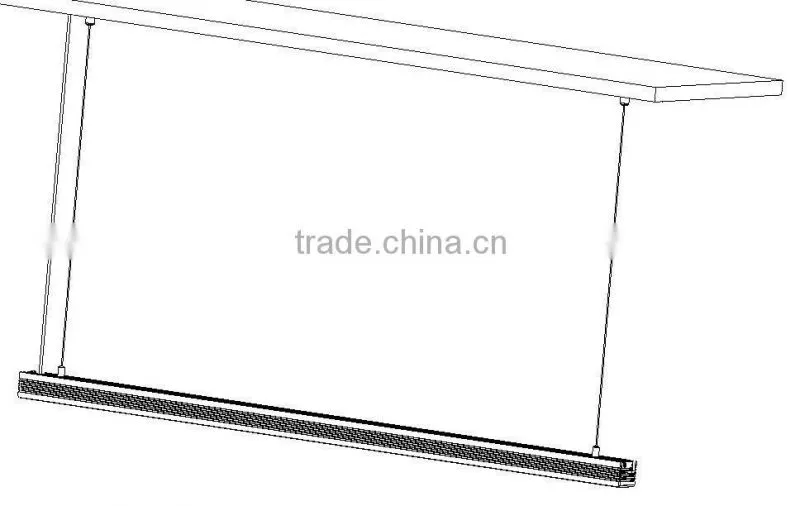

2. Hanging installation
3. Wall mounted installation
Attention for Led Linear Lighting 32W :
1. Please do use the products indoors.
2. Please confirm the applicable power supply before using.
3. Lamps quantities in series connection are no more than 3pcs.
4. Please choose suitable driver according to the lamps total power.
5. Please confirm the screws are installed firmly after installation.

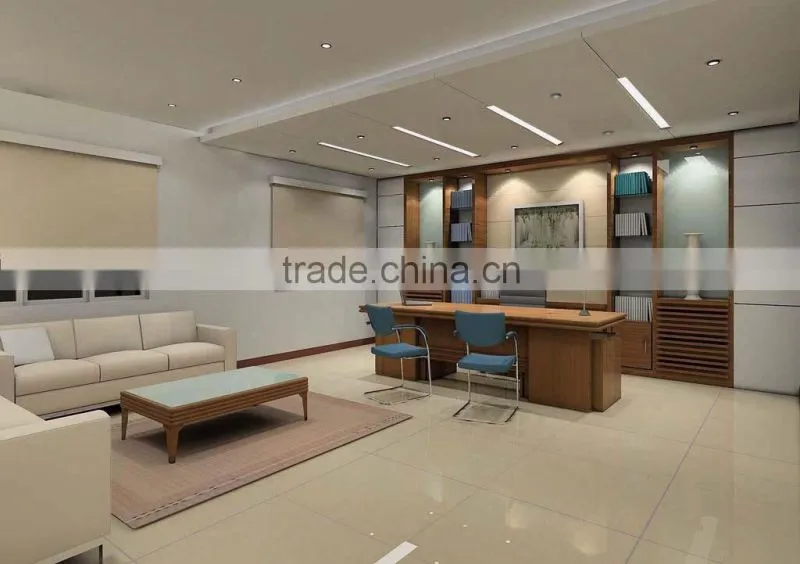

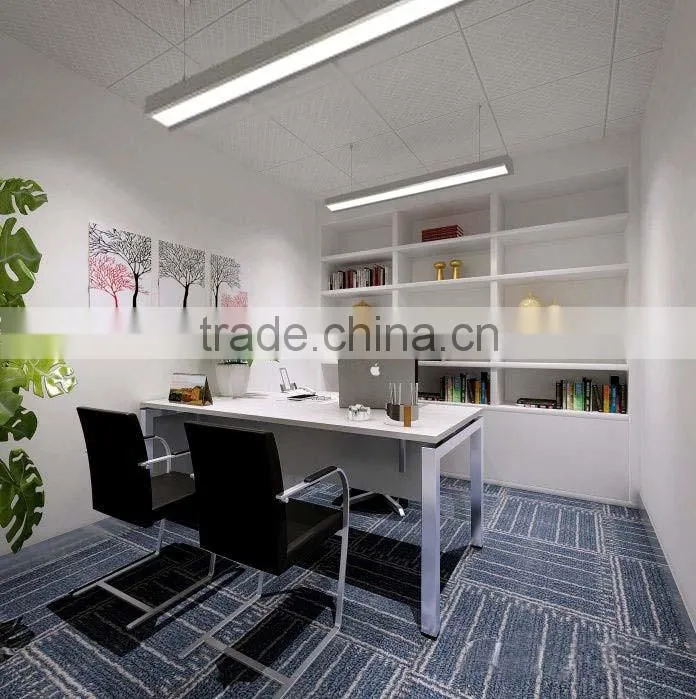

Applications for Led Linear Lighting 32W :
Apply occasion: household decorative lighting, supermarket, shop, hotel, bar, coffee shop, restaurant, office, etc.
