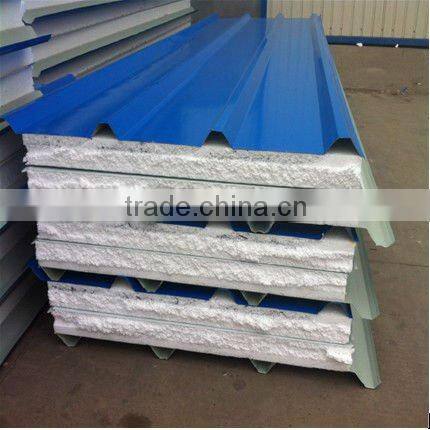

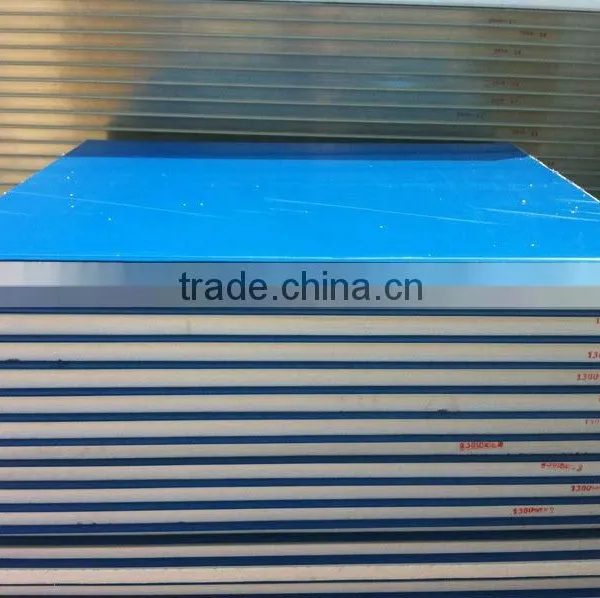

EPS Sandwich Panel for Roof
- Tianjin Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | GH | |
| Model Number | EPS Sandwich Panels | Panel Material | Metal | |
| Type | Polyurethane Sandwich Panels |
Product Description
Specifications
EPS Sandwich Panel for RoofStandard: AISI,ASTM,DIN,GB,JIS
Type: Polyurethane Sandwich Panels .
Thickness: 50-175mm
Metal Thickness: 0.2-0.6mm
Width:950-1150mm
Excellent waterproof
Specification | |
Effective width | Wall panel: 950mm 1150mm 1200mm Roof panel: 950mm 980mm |
Length | According to customer's request |
materials | Polystyrene foam board(EPS), Color steel sheet |
Structure | Upper and lower layer: Color steel sheet |
Middle: polystyrene foam board or polyurethane foam board | |
Thickness | Color steel sheet: 0.3-0.6mm |
The polystyrene density | 8-25kg/m3 |
Conventional color | Ocean blue, tephrosious |
lifetime | 15~20 years |
Character | Light in weight, heat insulation, water resistant, green and environmental |
Use | various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc. |
Features:
1. Light weight: Installation is easy and flexible thanks to its light weight, only 10-14kg/m2.
2. High intensity and large rigidity ensures suitability for weight-bearing structures.
3. Temperature retention and heat insulation. Temperature resistance range from -110º C to 50º C.
4. Excellent sound insulation performance.
5. Pleasing appearance and durable.
6. Environmentally friendly thanks to using environmental materials.
Application:
It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.
We can supply sandwich panels with 8 different core materials such as PU, PIR, rock wool, glass wool, EPS, XPS. flame retardant paper honeycomb and magnesium paper honey comb.
The facing materials can be PPGI(prepainted galvanized iron), GI(galvanized iron), Galvalume, stainless steel, Prinpiainted steel, aluminum foil, PVC, aluminum sheet and veneer. More than twenty kinds of profiles are available as per customers’ requirements.
