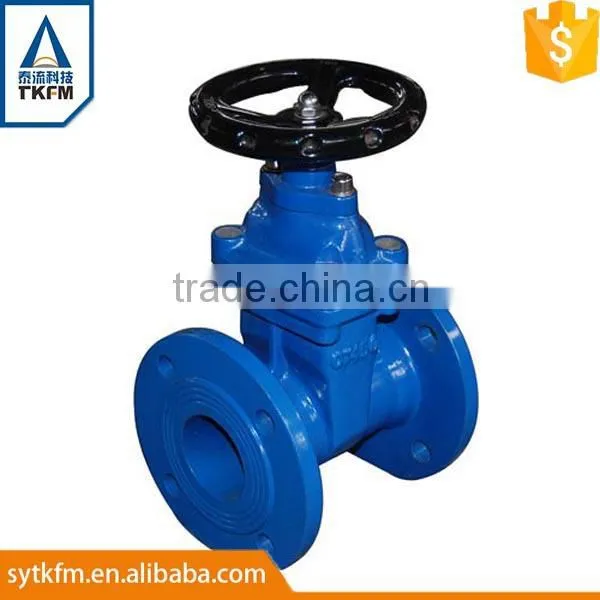

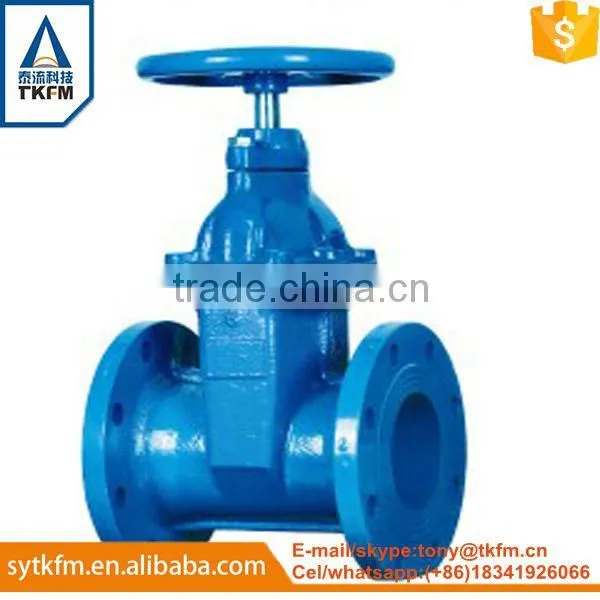

Help CenterTKFM Water Supply 304 Stainless Steel Flange Gate Valve Pn16
Related Products
-
TKFM Forged Steel Gate Valves With Welded End Z41H - 16US$ 32 - 1,846MOQ: 10 Sets -
TKFM Water Supply WCB Plain Gate Valve With Flanged ConnectionUS$ 32 - 1,846MOQ: 10 Sets
-
TKFM Water Pipe Used Gate Valve With Flanged Connection Supplier's ChoiceUS$ 32 - 1,846MOQ: 10 Sets
-
Originality China Supplier All Types of Stainless Steel Gate Valve for WaterUS$ 55 - 1,760MOQ: 1 Set
-
TKFM Medium Temperature Flanged Wafer Gate Valve Z41H-16US$ 32 - 1,846MOQ: 10 Sets
Z41H-16 PN16 flanged WCB / 304 stainless steel material hard seal gate valve dn40

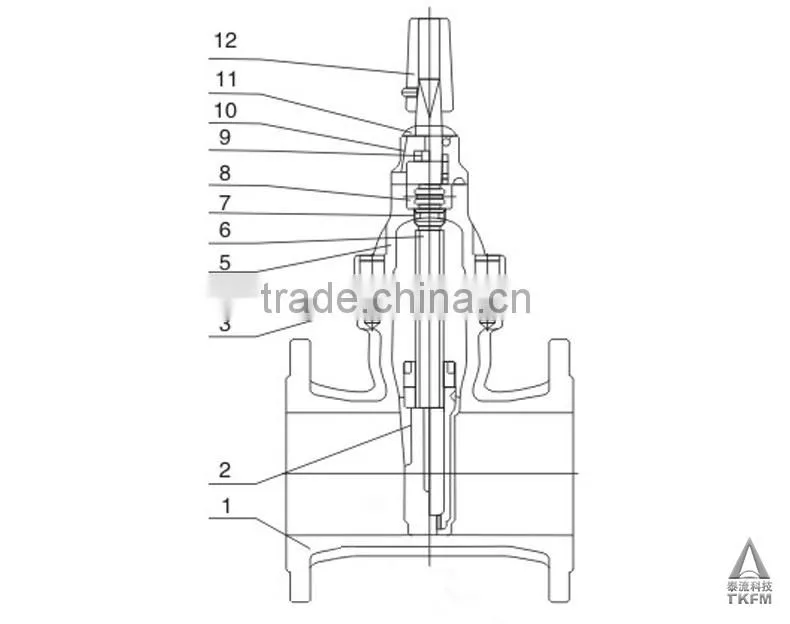

| no. | name | material |
| 1 | valve body | wcb/stainless steel 304/forged A105/etc |
| 2 | wedge disc | forged steel |
| 3 | seal | metal/ stainless steel |
| 5 | bonnet | cast steel/stainless steel |
| 6 | stem | stainless steel |
| 8 | thrust bearing | tin-bronze |
| 9 | bolt | stainless steel |
| 10 | gland | ductile cast iron/cast steel/stainless steel |
| 11 | dust wheel | stainless steel |
| 12 | hand wheel | cast iron |

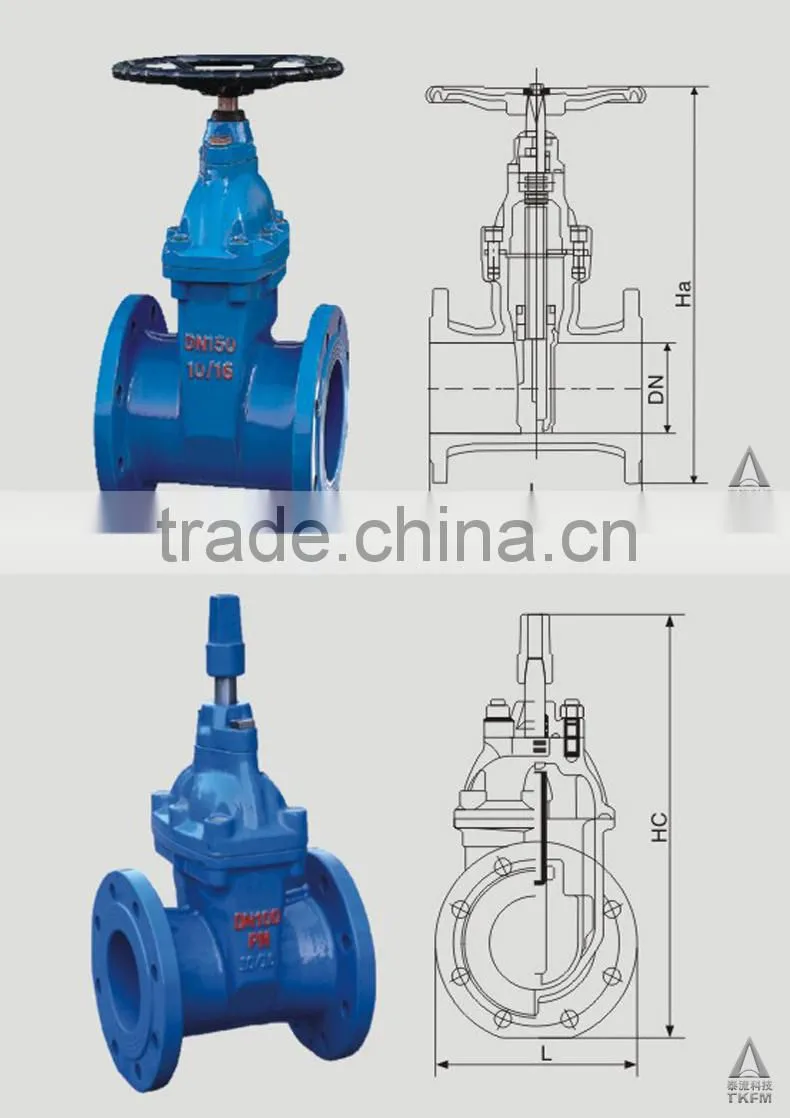

Main shape connection dimensions
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
381 |
406 |
313 |
332 |
372 |
424 |
497 |
562 |
680 |
837 |
948 |
1010 |
1220 |
355 |
375 |
415 |
476 |
540 |
600 |
720 |
875 |
990 |
1050 |
1245 |
By using hard seal for the whole gate to produce deformation compensation to achieve good sealing effect. Overcomed other gate valves’ shortcomings such as poorly sealed, leakage or rust. Our gate valve is more effective and save installation space. Widely used in city water supply, sewage treatment, construction industry, petroleum pipe line, chemical industry, foodstuff industry, pharmaceutical industry, textile-industry, power sector, shipbuilding, metallurgical industry, energy system and other fluid pipes as regulator or cut-off equipment.
Technical Parameters
Nominal pressure:1.0~2.5MPa
DN: 15~400mm
Operating temperature :0~80℃
Applicable medium: water oil gas and so on
Flange standard:GB/T 17241.6 GB/T 9113
Test standard: GB/T 13927 API 598
Terms of payment: 30% in advance as deposit, the balance paid before delivery.
Delivery time: 30 days after receiving the prepayment.
Terms of trading: FOB, CFR, CIF
Guarantee: 12 months
Fully welded ball valve - Company advantages:

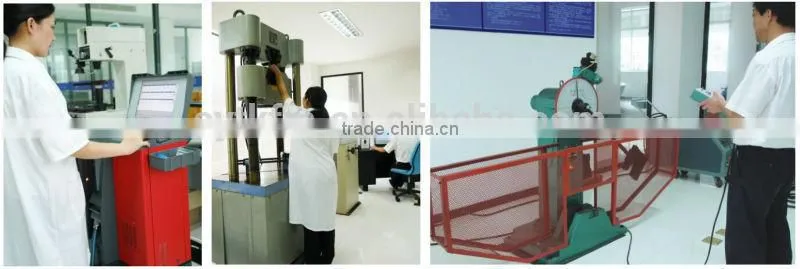

1. We are factory: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. also can provide the competitive price.

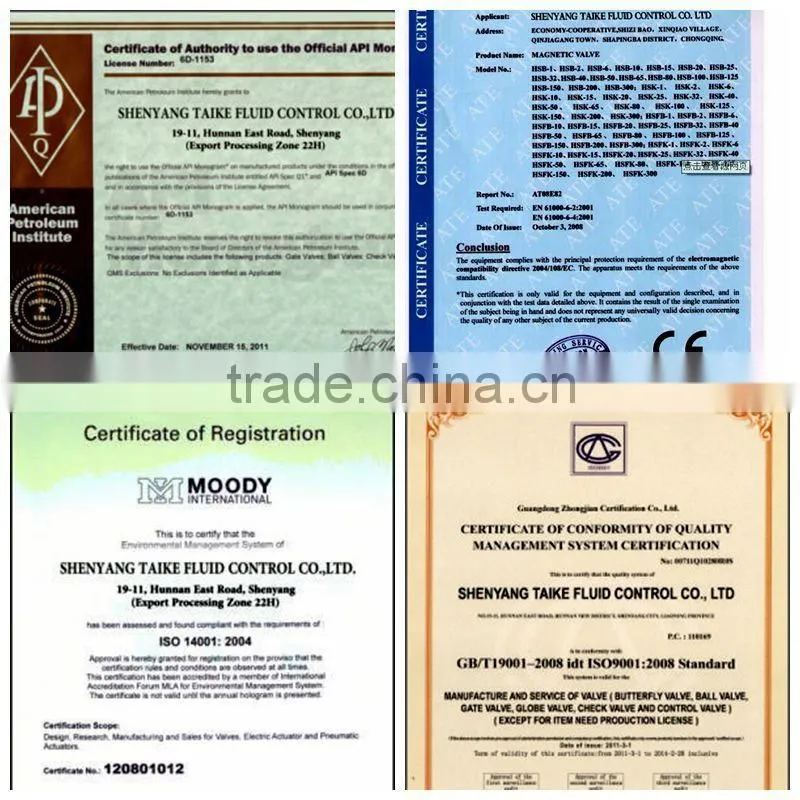

2. Certification: API, CE, ISO,GOST, TS ..etc
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the customer requirement.
5. Complete Service: We are always ready to hear from you, reply within 12 hours.
6. Quick Delivery: We always keep the large stock for some hot products.
Z41H-16 PN16 flanged WCB / 304 stainless steel material hard seal gate valve dn40
1.What's payment terms? 30% payment in advance, 70% balanced before delivery. (if total value is USD$ 500, we suggest 100% payment in advanve.)
2.What's MOQ? One set. (if small size, we can check if free sample or not, freight need to be paid by customer.)
3.How control the quality of valve?
Select high quality raw material; Strict required during machining; Seat material comply with food grade; Tested twice to insure zero leakage; First copper plating disc, then nickle plating disc to increase the adhesiveness
4.Delivery time?
10-30 days after received the advance payment. (if stock, about 10 days)
