Home > Products > gate valve > TKFM water pipe used gate valve with flanged connection Supplier's Choice

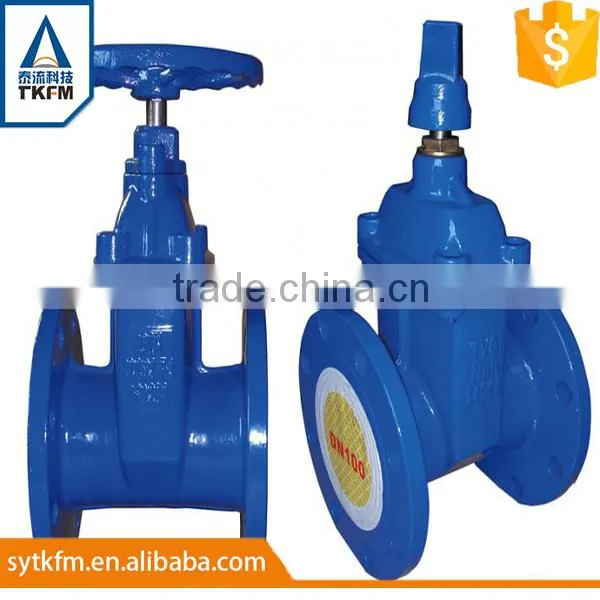

TKFM water pipe used gate valve with flanged connection Supplier's Choice
- 1000 Set / Sets per Month
- DALIAN
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | High Pressure |
| Power: | Manual | Material: | Stainless Steel | Temperature of Media: | Medium Temperature |
| Media: | Water | Port Size: | DN15(1/2')~DN400(16'') | Place of Origin: | Liaoning, China |
| Model Number: | Z41H-16 | Brand Name: | TKFM | Application: | General |
Product Description

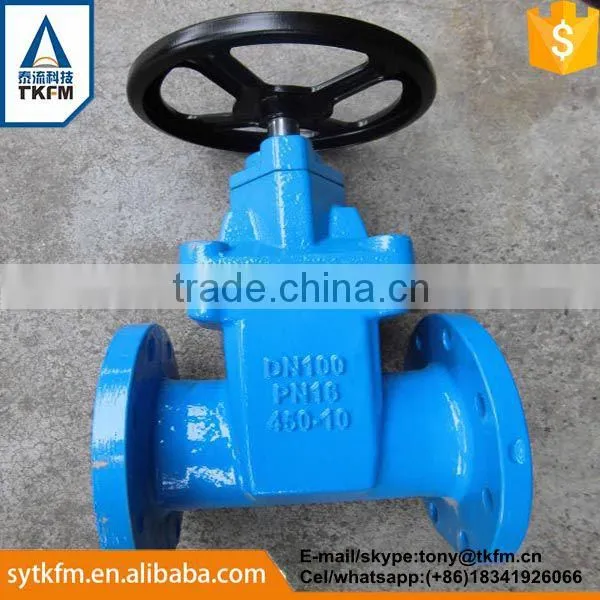

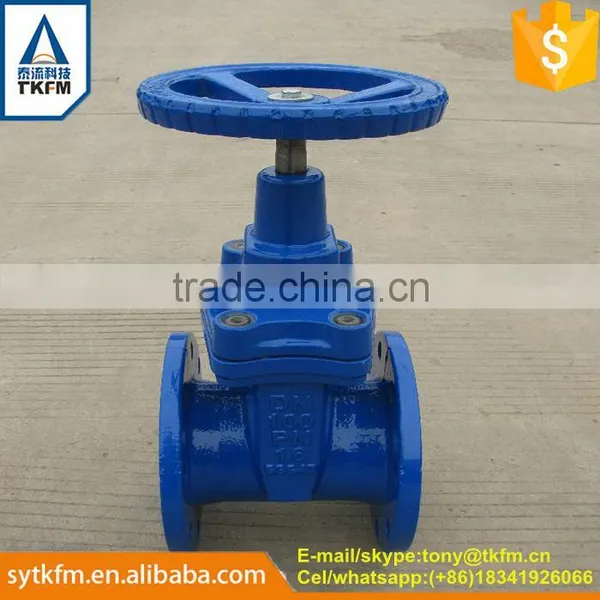

flanged 2 inch water pipe used wheel handle plain gate valve
| no. | name | material |
| 1 | valve body | wcb/stainless steel 304/forged A105/etc |
| 2 | wedge disc | forged steel |
| 3 | seal | metal/ stainless steel |
| 5 | bonnet | cast steel/stainless steel |
| 6 | stem | stainless steel |
| 8 | thrust bearing | tin-bronze |
| 9 | bolt | stainless steel |
| 10 | gland | ductile cast iron/cast steel/stainless steel |
| 11 | dust wheel | stainless steel |
| 12 | hand wheel | cast iron |
Main shape connection dimensions
50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 |
313 | 332 | 372 | 424 | 497 | 562 | 680 | 837 | 948 | 1010 | 1220 |
355 | 375 | 415 | 476 | 540 | 600 | 720 | 875 | 990 | 1050 | 1245 |
By using hard seal for the whole gate to produce deformation compensation to achieve good sealing effect. Overcomed other gate valves’ shortcomings such as poorly sealed, leakage or rust. Our gate valve is more effective and save installation space. Widely used in city water supply, sewage treatment, construction industry, petroleum pipe line, chemical industry, foodstuff industry, pharmaceutical industry, textile-industry, power sector, shipbuilding, metallurgical industry, energy system and other fluid pipes as regulator or cut-off equipment.
Technical Parameters
Nominal pressure:1.0~2.5MPa
DN: 15~400mm
Operating temperature :0~80℃
Applicable medium: water oil gas and so on
Flange standard:GB/T 17241.6 GB/T 9113
Test standard: GB/T 13927 API 598
Terms of payment: 30% in advance as deposit, the balance paid before delivery.
Delivery time: 30 days after receiving the prepayment.
Terms of trading: FOB, CFR, CIF
Guarantee: 12 months
Fully welded ball valve - Company advantages:
1. We are factory: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. also can provide the competitive price.
2. Certification: API, CE, ISO,GOST, TS ..etc
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the customer requirement.
5. Complete Service: We are always ready to hear from you, reply within 12 hours.
6. Quick Delivery: We always keep the large stock for some hot products.
flanged 2 inch water pipe used wheel handle plain gate valve
1.What's payment terms? 30% payment in advance, 70% balanced before delivery. (if total value is USD$ 500, we suggest 100% payment in advanve.)
2.What's MOQ? One set. (if small size, we can check if free sample or not, freight need to be paid by customer.)
3.How control the quality of valve?
Select high quality raw material; Strict required during machining; Seat material comply with food grade; Tested twice to insure zero leakage; First copper plating disc, then nickle plating disc to increase the adhesiveness
4.Delivery time?
10-30 days after received the advance payment. (if stock, about 10 days)
Contact Us
- Shenyang Taike Fluid Control Co., Ltd.
- Contact nameTony Yu
- Phone86-24-88588388
- Address19-11 EAST ROAD HUNNAN Shenyang,Liaoning
-
