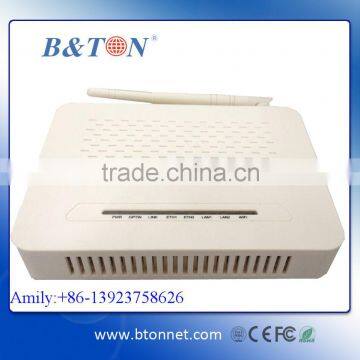

GEPON ONU 4FE+ 1POTS +1 WiFi FTTH GPON Optical Network Terminal ONT
GEPON ONU FD104HW,is designed mainly for FTTH use and FTTO use as well. GEPON ONU FD104HW support 1000Base-PX10/PX20 standard with 1:64/1:32 maximum optical splitting ratio and 10/20km distance, and provide 1uplink GE PON port.
ONU FD104HW work together with C-Data's OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
ONU FD104HW adopts single fiber WDM technology with downlink wavelength 1490nm and uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.
ONU FD104HW has 1 PON port ,4 10/100BASE-T ports and support WiFi
n Support port-based rate limitation and bandwidth control;
n In compliant with IEEE802.3ah Standard
n Up to 20KM transmission Distance
n Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
n Support Dynamic Bandwidth Allocation (DBA)
n Support ONU auto-discovery/Link detection/remote upgrade of software;
n Support VLAN division and user separation to avoid broadcast storm;
n Support power-off alarm function ,easy for link problem detection
n Support broadcasting storm resistance function
n Support port isolation between different ports
n Support ACL and SNMP to configure data packet filter flexibly
n Specialized design for system breakdown prevention to maintain stable system
n Support software online upgrading
EMS network management based on SNMP ,convenient for maintenance
Item |
Parameter |
Model |
FD104HW |
PON Interface |
1 GEPON optical interface |
User Ethernet |
4*10/100Mauto-negotiation |
Power Interface |
12V DC Power supply An external 12V 0.5A AC/DC power supply adapter |
|
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm |
Data Transmission |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps |
Business |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support RSTP |
Network |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Management |
Status monitor, Configuration management, Alarm management, |
LED Indicator |
PWR: Power up or down OPTIN: Optical Link Status LINK:ONU Registered LAN: Link Status of Ethernet Interface |
Shell |
Plastic casing |
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: < 3.8W |
Physical |
Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H) Item weight:0.2kg |
Environmental |
Operating temperature: 0 to 50 ºC |
WIFI Specification | ||
Performance parameters |
Operating Mode |
Router or bridge |
Throughput |
IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps |
|
Frequency |
2.412 ~ 2.472 GHz |
|
Channel |
13*Channel, configurable to meet the standard of USA, CCanada, Japan and China |
|
Modulation |
DSSS , CCK and OFDM |
|
Coding |
BPSK, QPSK, 16QAM and 64QAM |
|
RF receive sensitivity |
802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps 802.11n: -65dBm @ 65 MbpsHT40; -61dBm @ 135 MbpsHT40; |
|
RF output lever |
802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps |
|
Encryption Mode |
802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) |
|
Product Name |
Product Model |
Descriptions |
ONU With Four Fast Ethernet Port and Built-in WiFi |
FD104HW |
4*10/100M Ethernet interface, built-in WiFi, 1 GEPON interface, plastic casing, external power supply adapter |
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
