FTTH 2 Ethernet ports+ 1POTS GPON ONT ONU GEPON Cortina chipset FTTH 2 Ethernet ports+ 1POTS GPON ONT ONU GEPON Cortina chipset

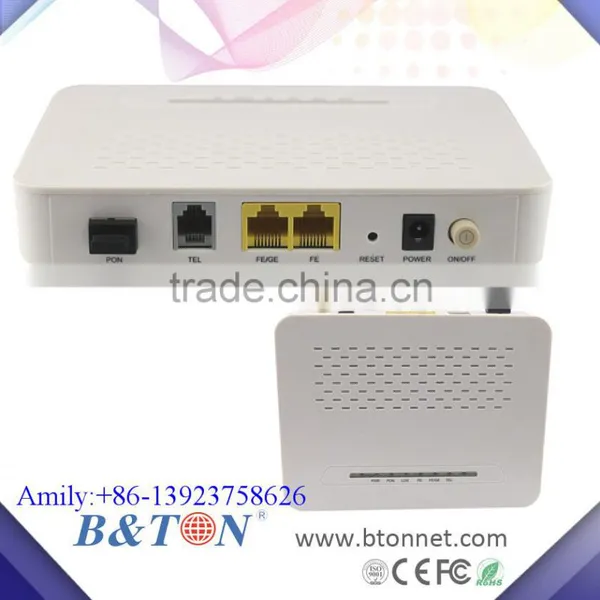

BT612H is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the GPON network
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.

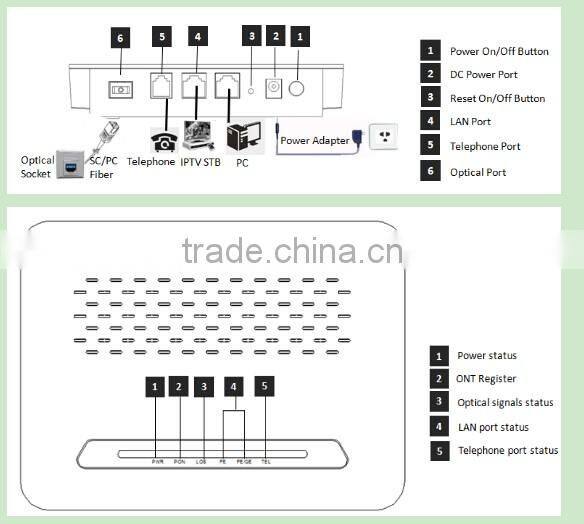

BT612H provide one POTS ports, one FE and one GE auto-adapting Ethernet ports. The FD612H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the FD612H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
n Full compatible with ITU-T G.984
n Support one POTS
n Support one FE and one GE auto-adapting Ethernet ports
n Support OMCI and TR069 for remote management
n Support Web for local management
n Support Auto-negotiation and MDI/MDIX
n Support the Ethernet interface rate, working mode and flows control
n Support loopback at UNI
n Support packet filtering and anti-illegal message attack protection
n Support performance statistics of Ethernet lines
n Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
n Support DHCP Option60 reporting the location information of the Ethernet interface
n Support PPPoE+ for accurate subscribers identification
n Support H.248,MGCP and SIP protocol
n Support IGMP Snooping
n Support AES-128
Item | Parameters | Specification |
Interface | PON Port | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128 |
Ethernet Port(LAN) |
| |
POTS Port | 1*RJ11 with 3REN Max 1km distance Balanced Ring, 55V RMS | |
Power Supply Port | 12V DC input | |
Management | Network Management | Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management |
Management Function | Status monitor, Configuration management, Alarm management, Log management | |
Environmental | Shell | Plastic casing |
Power | External 12V 1A AC/DC power supply adapter Power consumption: <6W | |
Dimensions | 160mm(L) x 120mm(W) x33mm (H) 0.2kg | |
Environment | Operating Temperature:0~50℃ Storage Temperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) Storage Humidity:5%~95%(Non-condensing) |
Product Name | Product Model | Descriptions |
HGU Type GPON ONT | FD612H | 1*GE and 1*FE Ethernet interface, 1*POTS interface, 1 GPON interface, plastic casing, external power supply adapter |
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
