EPON ONU 4FE+1 WiFi Port GEPON ONU FTTH GPON CPE Wireless ONU

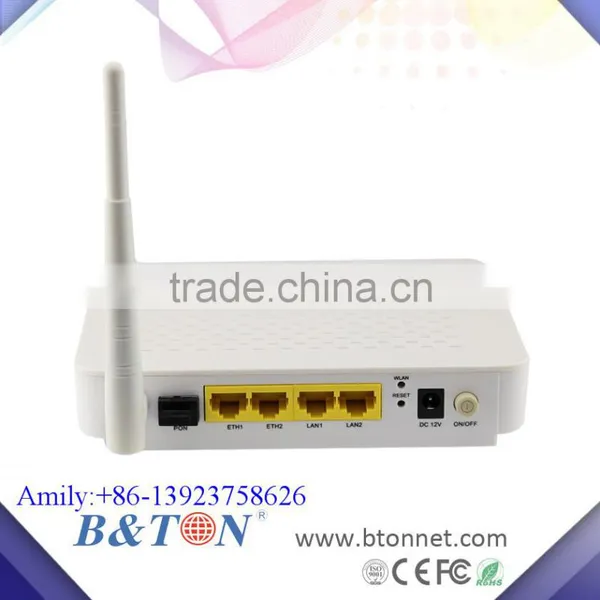

EPON ONU 4FE+1 WiFi Port GEPON ONU FTTH GPON CPE Wireless ONU photo-1

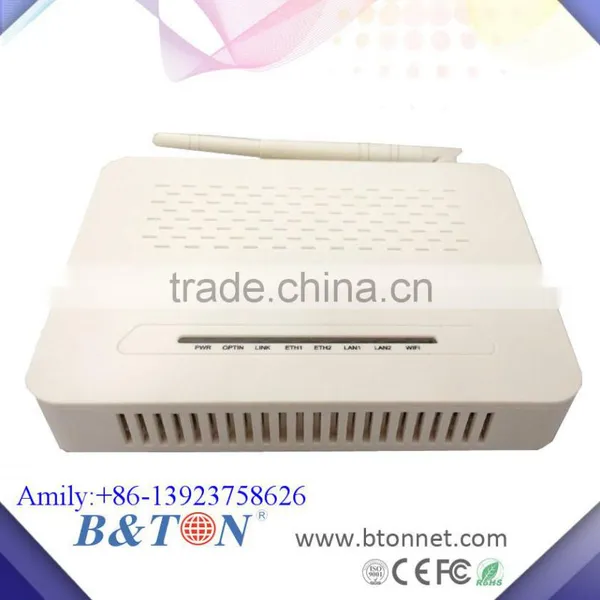

EPON ONU 4FE+1 WiFi Port GEPON ONU FTTH GPON CPE Wireless ONU photo-2

US$ 60 - 95 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

BT-Gpon-4e

Contact Supplier Request Quote Chat Now

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name BT

Model Number BT-Gpon-4e

EPON ONU 4FE+1 WiFi Port GEPON ONU FTTH GPON CPE Wireless ONU

ONU FD104HW has 1 PON port ,4 10/100BASE-T ports and support WiFi

Product Description

1.Support port-based rate limitation and bandwidth control;

2.In compliant with IEEE802.3ah Standard

3. Up to 20KM transmission Distance

4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.

5. Support Dynamic Bandwidth Allocation (DBA)

6.Support ONU auto-discovery/Link detection/remote upgrade of software;

7. Support VLAN division and user separation to avoid broadcast storm;

8.Support power-off alarm function ,easy for link problem detection

9. Support broadcasting storm resistance function

10.Support port isolation between different ports

11.Support ACL and SNMP to configure data packet filter flexibly

12. Specialized design for system breakdown prevention to maintain stable system

13. Support software online upgrading

14.EMS network management based on SNMP ,convenient for maintenance

Features

Item	Parameter
Model	FD104HW
PON Interface	1 GEPON optical interface Meet 1000BASE-PX20 standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM @ split ratio<1:32
User Ethernet Interface	4*10/100Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
Power Interface	12V DC Power supply An external 12V 0.5A AC/DC power supply adapter
PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -24dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125m single-mode fiber
Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps(FD101H,FD104H),1000Mbps(FD112H) Packet Loss Ratio: <1*10E-12 latency: <1.5ms
Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support RSTP
Network Management	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
Management Function	Status monitor, Configuration management, Alarm management, Log management
LED Indicator	PWR: Power up or down OPTIN: Optical Link Status LINK:ONU Registered LAN: Link Status of Ethernet Interface
Shell	Plastic casing
Power	External 12V 0.5A AC/DC power supply adapter Power consumption: < 3.8W
Physical Specifications	Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H) Item weight:0.2kg
Environmental Specifications	Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 5% to 95% (Non-condensing)

WIFI Specification
Performance parameters	Operating Mode	Router or bridge
	Throughput	IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps
	Frequency	2.412 ~ 2.472 GHz
	Channel	13*Channel, configurable to meet the standard of USA, CCanada, Japan and China
	Modulation	DSSS , CCK and OFDM
	Coding	BPSK, QPSK, 16QAM and 64QAM
	RF receive sensitivity	802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps 802.11n: -65dBm @ 65 MbpsHT40; -61dBm @ 135 MbpsHT40;
	RF output lever	802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
	Encryption Mode	802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

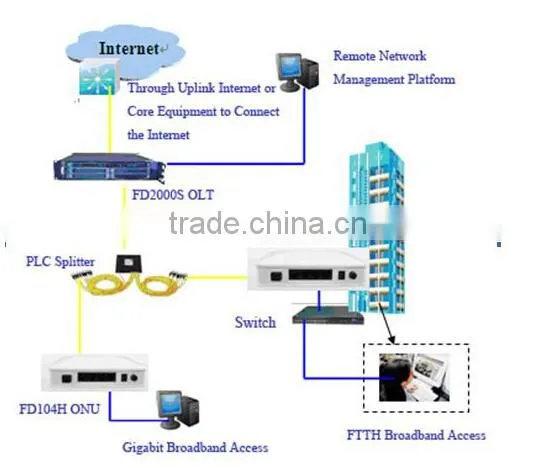

Application&solution

Typical Access Solution: FTTH, FTTB+LAN and FTTB+EOC
Typical Service: Broadband Access, IPTV, VOD and CCTV

Certifications

Order Information

Product Name	Product Model	Descriptions
ONU With Four Fast Ethernet Port and Built-in WiFi	FD104HW	4*10/100M Ethernet interface, built-in WiFi, 1 GEPON interface, plastic casing, external power supply adapter
