EPON ONU ,WIFI CATV/FTTH WIFI ONU WIth 4FE(4FE+1TV+WIFI+WDM ONU)
The ONU is mainly designed for FTTH,FTTO application. It support 1000Base-PX20 standard
with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON
port.

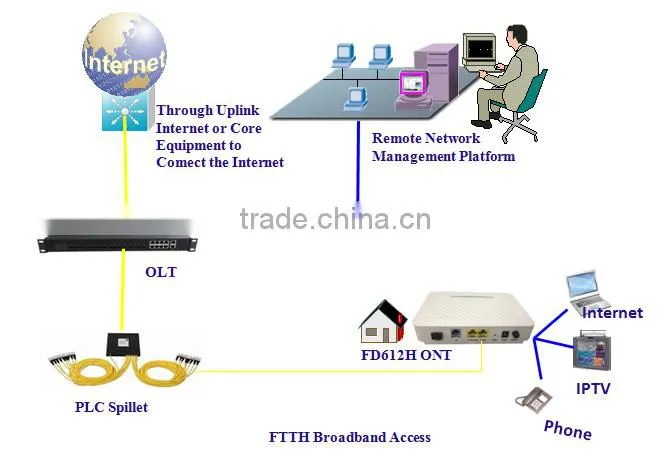

It work together with OLT could realize flexible network structure and maintenance and
provide total FTTx solutions.

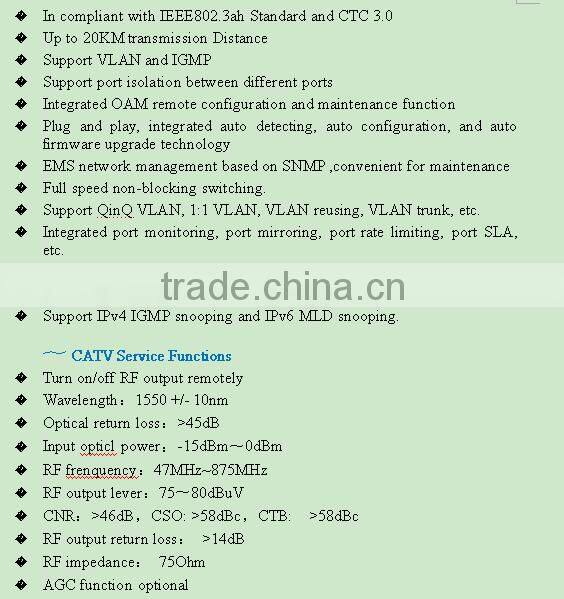

It built in CATV Receiver to realize the analog or DVB TV signals transmission.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm,
uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.

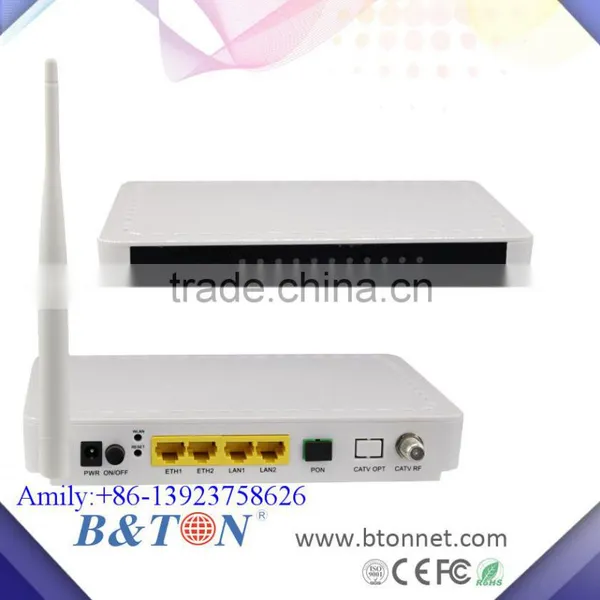

ONU FD304HW has 1 PON port, four10/100BASE-T ports ,one CATV output and support
WiFi.
Item |
Parameter |
|
Interface |
PON Interface |
1 GEPON optical interface |
User Interface |
4*10/100Mauto-negotiation |
|
|
1 RF output Female F-Type Connector | ||
Power Interface |
12V DC Power supply An external 12V 0.5A AC/DC power supply adapter |
|
Performance Parameters |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm |
Data Transmission |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps |
|
Business |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support RSTP |
|
Network Management |
Management Mode |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Management |
Status monitor, Configuration management, Alarm management, |
|
Indicator |
LED Indicator |
PWR, SYS,PON, LAN1~LAN4, CATV |
Physical Features |
Shell |
Plastic casing |
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: < 3W |
|
Dimension and Weight |
Item Dimension:200mm(L) x 140mm(W) x 28mm (H) Item weight:0.35kg |
|
Environmental |
Operating temperature: 0 to 50 ºC |
|
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
