Help CenterHandle 1 Inch Carbon Steel Floating Ball Valve
Related Products
-
Worm Gear Isolation Lined Natural Gas Ball ValveUS$ 210 - 3,000MOQ: 1 Set -
Stainless Steel Full Welded Ball Valve for Heating SystemUS$ 12 - 200MOQ: 10 Sets
-
Worm Gear Standard Trunion Mounted Ball Valve,rotary Ball Valve,rotary Ball ValveUS$ 3,000 - 68,900MOQ: 1 Set
-
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball ValveUS$ 44.26 - 265.57MOQ: 10 Sets
-
Small Lever Compact Ball ValveUS$ 13 - 380MOQ: 1 Set

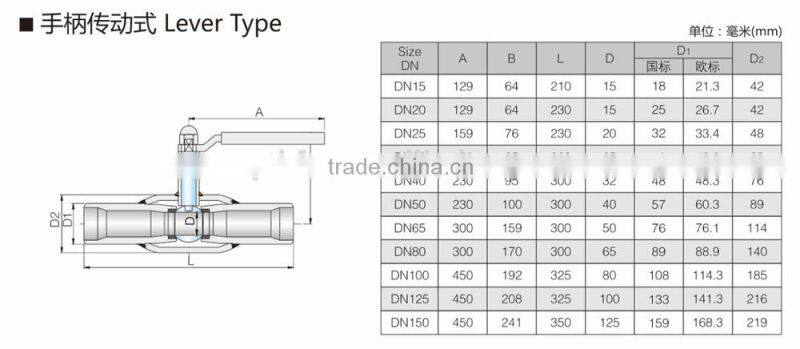

Size:full port&standard diameter DN20-150(3/4"-6")
Pressure: below 2.5Mpa
Temperature: -40℃~+200℃
Medium:water,gas,oil,solid particle,mixed medium etc.(Non-corrosive)
Operation:manual/with gear/electrical/worm gear/pneumatic/hydraulic
Advantage:
International certificate and standard
Design for water,oil and gas pipe line use
As long life as pipeline system
Maintenance free, low cost
Two-way valve
main characteristics:
One-piece welded body & End piece connection pipe (Connection dimension to ASTM / EN / KS / JIS / GOST Standard .etc will be available.
Bubble tight excellent sealing with PTFE+C seats.
Pre-loaded seat springs ensure leak-tight at low pressure and reduce valve operational torque.
Anti blow-out stem.
Double O-rings ensure the stem sealing and are replaceable.
Stem dry bearing, metal with PTFE coating having self-lubricating capabilities

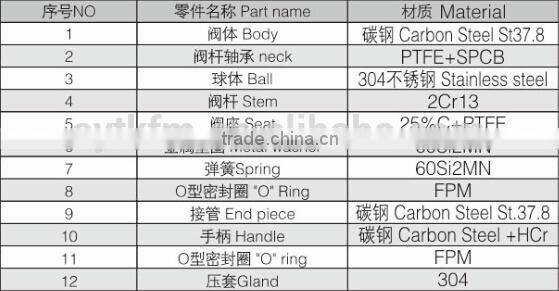

Material:
Body: carbon steel ST37,A106-B,STPG 370,A105,ASTM A516-60,A216-WCB. 304 or 316 stainless(depend on customer)
Ball: 304 or 316 stainless
Stem:PTFE+25% carbon fiber
