TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve

TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve thumbnail-1
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve thumbnail-2
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve thumbnail-3
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve thumbnail-4
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve thumbnail-5
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve photo-1
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve photo-2
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve photo-3
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve photo-4
TKFM Manual Type Gas Media 2 Inch Underground Forged Ball Valve photo-5
US$ 44.26 - 265.57 MOQ: 10 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Shenyang Taike Fluid Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Manual
Material Stainless Steel
Temperature of Media Normal Temperature
Media Gas
Port Size DN20-150(3/4"-6")
Place of Origin Liaoning, China
Model Number HQM61FC-25
Brand Name TKFM
Application General
Product Description

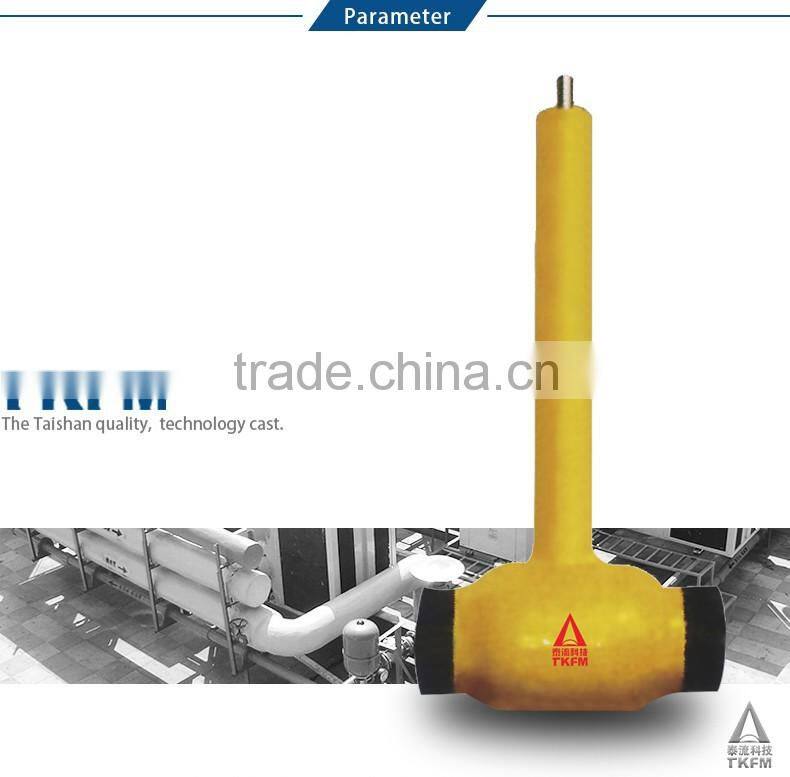

 TKFM manual type gas media 2 inch underground forged ball valve

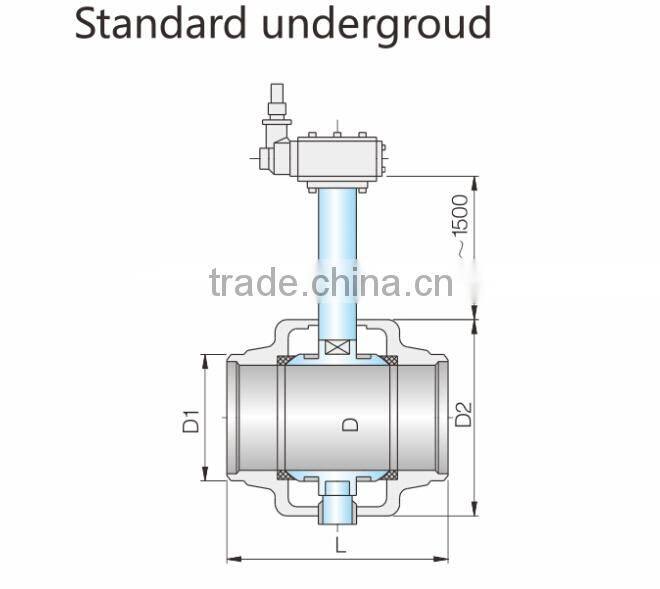

TKFM manual type gas media 2 inch underground forged ball valve

                                                                           unit:millimeter(mm)
Size NPS L D D1 D2
CN EU
DN50 2 300 50 57 60.3 114
DN65 2-1/2 300 65 76 76.1 140
DN80 3 300 80 89 88.9 165
DN100 4 325 100 108 114.3 216
DN125 5 350 125 133 141.3 219
DN150 6 490 150 159 168.3 355
DN200 8 580 200 219 219.1 356
DN250 10 550 250 273 273.1 457
DN300 12 630 300 325 323.9 508
DN350 14 762 337 377 355.6 559
DN400 16 840 387 426 406.4 660
DN500 20 1010 489 530 508 812
DN600 24 1140 591 630 609.6 1016
DN700 28 1346 686 730 711.2 1095
DN800 32 1524 781 830 812.8 1237
DN900 36 1727 874 930 914.4 1385

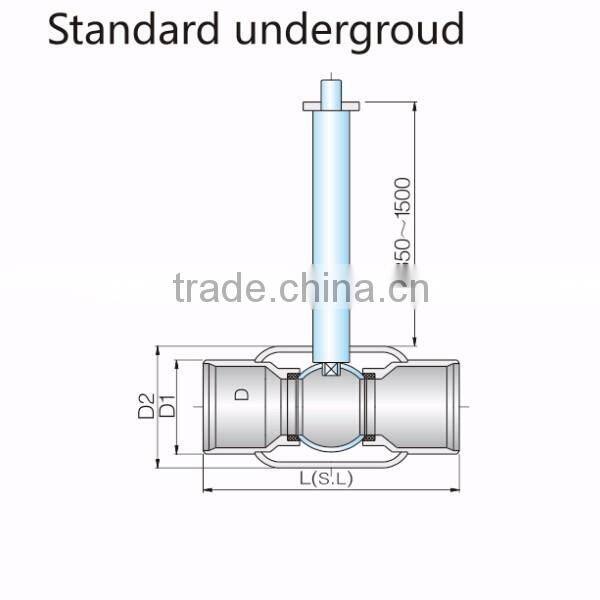

TKFM manual type gas media 2 inch underground forged ball valve

                                                                                          unit:millimeter(mm)
Size NPS D D1 D2 L
CN EU S L
DN50 2 40 57 60.3 89 300 1000
DN65 2-1/2 50 76 76.1 114 300 1000
DN80 3 65 89 88.9 140 300 1000
DN100 4 80 108 114.3 165 325 1000
DN150 6 125 159 168.3 219 350 1000
DN200 8 150 219 219.1 267 400 1000
DN250 10 200 273 273.1 355 560 1000
DN300 12 250 325 323.9 457 635 1100
DN400 16 337 426 406.4 558 760 1360
DN500 20 387 530 508 660 910 1510
DN600 24 489 0.63 609.6 812 1065 1660
DN700 28 591 730 711.2 1016 1346 1940
DN800 32 686 830 812.8 1095 1524 2120
DN900 36 781 930 914.4 1237 1727 2320



CERTIFICATION: ISO, TS, API, GOST, CE....etc

We pay much attention in Test process:

(1) Shell Hydrostatic Test

ANSI B 16.34 Section 7.1
Valve Size NPS Test pressure Test Time. Sce
Below DN50 1:5 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 60 Sce
Up DN250 Max. Operating Pressure 180 Sce
  Test pressure should be above 1.5 times  than the valve's Max work pressure (100F)

(2) Seal Hydrostatic Test

The pressure should be more 1.1 times than working pressure by seal hydrastatic test

 TKFM manual type gas media 2 inch underground forged ball valve

ANSI B 16.34 Section 7.2
Valve Size NPS Test pressure Test Time. Sce
below DN50 1:1 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 30 Sce
above DN250 Max. Operating Pressure 60 Sce
  Test pressure should be more 1.5 times  than the valve's Max work pressure (100F) 180Sce

(3) Seal Air Test

Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.

 TKFM manual type gas media 2 inch underground forged ball valve



Packaging & Shipping

 TKFM manual type gas media 2 inch underground forged ball valve



Our Services



1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.

2.Market, technical support and after-sale service within 24 hours.

3. You can order your own configuration.

A: Manual     B: pneumatic   C: electric   D: bare shaft  E: disc with pin    F: disc without pin   G: double half shaft   H: one piece body   I: two pieces body  J: logo

TKFM manual type gas media 2 inch underground forged ball valveTKFM manual type gas media 2 inch underground forged ball valve



Company Information

 TKFM manual type gas media 2 inch underground forged ball valve



Fully welded ball valve - Company advantages:

1. We are factory:  We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. also can provide the competitive price.

2. Certification: API, CE, ISO,GOST, TS ..etc

3. Low MOQ:  Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.

4. OEM Accepted: We can make the products with the client's demand standard or the customer requirement.

5. Complete Service: We are always ready to hear from you, reply within 12 hours.

6. Quick Delivery: We always keep the large stock for some hot products.



FAQ



  gas heat & water used fully welded ball valve (DN15~150)

1.What's payment terms?   30% payment in advance, 70% balanced before delivery.  (if total value is USD$ 500, we suggest 100% payment in advanve.)

2.What's MOQ?   One set.    (if small size, we can check if free sample or not, freight need to be paid by customer.)

3.How control the quality of ball valve?

Select high quality raw material; Strict required during machining; Seat material comply with food grade; Tested twice to insure zero leakage; First copper plating disc, then nickle plating disc to increase the adhesiveness

4.Delivery time?

10-30 days after received the advance payment.  (if stock, about 10 days)
