FTTH Network Fiber Optic 4FE +1CATV Port FTTx Solution ZTE Huawei Epon GEPON ONU

US$ 60 - 95 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

BT-Gpon-314HC-13

Contact Supplier Request Quote Chat Now

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name BT

Model Number BT-Gpon-314HC-13

FTTH Network Fiber Optic 4FE +1CATV port FTTx Solution ZTE huawei Epon GEPON ONUU ONT

The ONU is designed mainly for FTTH use and FTTO use as well. It support 1000Base-PX10/PX20 standard with 1:64/1:32 maximum optical splitting ratio and 10/20km distance, and provide 1uplink GE PON port.

It work together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.

It built in CATV Receiver to realize the analog or DVB TV signals transmission.

It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data service.

It also have a HFC optical port, received the CATV optical signals and convert into electric CATV signals.

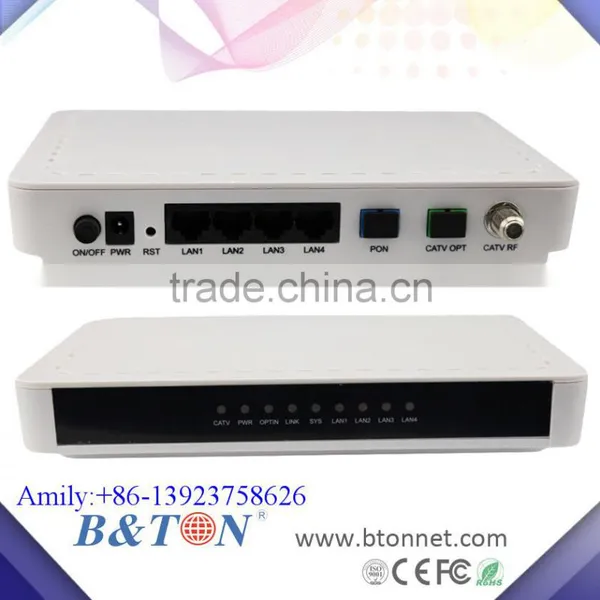

ONU FD314HC has 1 PON port , 1 HFC optical port, four10/100BASE-T ports and one CATV output.

Product Description

1.In compliant with IEEE802.3ah Standard and CTC2.1

2.Up to 20KM transmission Distance

3.Support VLAN and IGMP

4.Support port isolation between different ports

5.Integrated OAM remote configuration and maintenance function

6.Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology

7.EMS network management based on SNMP ,convenient for maintenance

8.Full speed non-blocking switching.

9.Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.

10.Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

11.Support auto polarity detection of Ethernet ports (AUTO MDIX).

12.Integrated IEEE802.1p QoS with four level priority queues.

13.Support IPv4 IGMP snooping and IPv6 MLD snooping.

1.Functional Features

Comply with IEEE802.3ah(EPON),China Telecom EPON technology standard V2.1
Support IEEE802.3AH OAM function
Maximum distance:20km;Maximum splitting Ratio:1:64(10km)
Support various service ,such as Data ,Voip and IPTV
Support Dynamic Bandwidth Allocation technology

2.CATV (RF) technical feature

Working wavelength: 1550+/-10nm
Optical Reflection Loss:>45dB
Support output RL level detection
Support remote centralized management

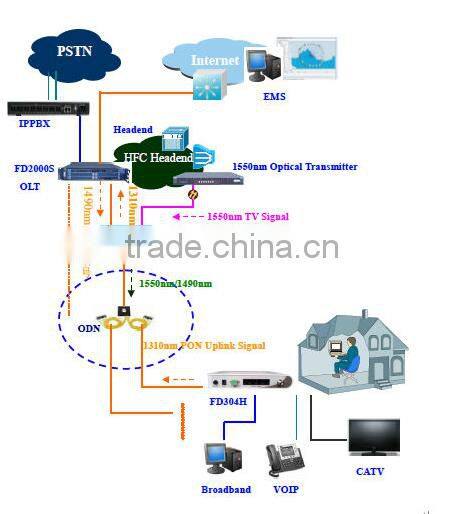

3.Typical Application

High speed data access

CATV transmission

Features

Item		Parameter
Interface	Uplink Interface	PON Interface: 1 GEPON optical interface Meet 1000BASE-PX20 standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM @ split ratio<1:32
	Uplink Interface	CATV Interface: 1 HFC Optical input SC/APC
	User Interface	4*10/100Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
	User Interface	1 RF output Female F-Type Connector
	Power Interface	12V DC Power supply An external 12V 0.5A AC/DC power supply adapter
Performance Parameters	PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -24dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125m single-mode fiber
	Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
	Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support RSTP
Network Management	Management Mode	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
Network Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Indicator	LED Indicator	PWR, SYS,PON, LAN1~LAN4, CATV
Physical Features	Shell	Plastic casing
	Power	External 12V 0.5A AC/DC power supply adapter Power consumption: < 3W
	Dimension and Weight	Item Dimension:200mm(L) x 140mm(W) x 28mm (H) Item weight:0.35kg
	Environmental Specifications	Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 5% to 95% (Non-condensing)
