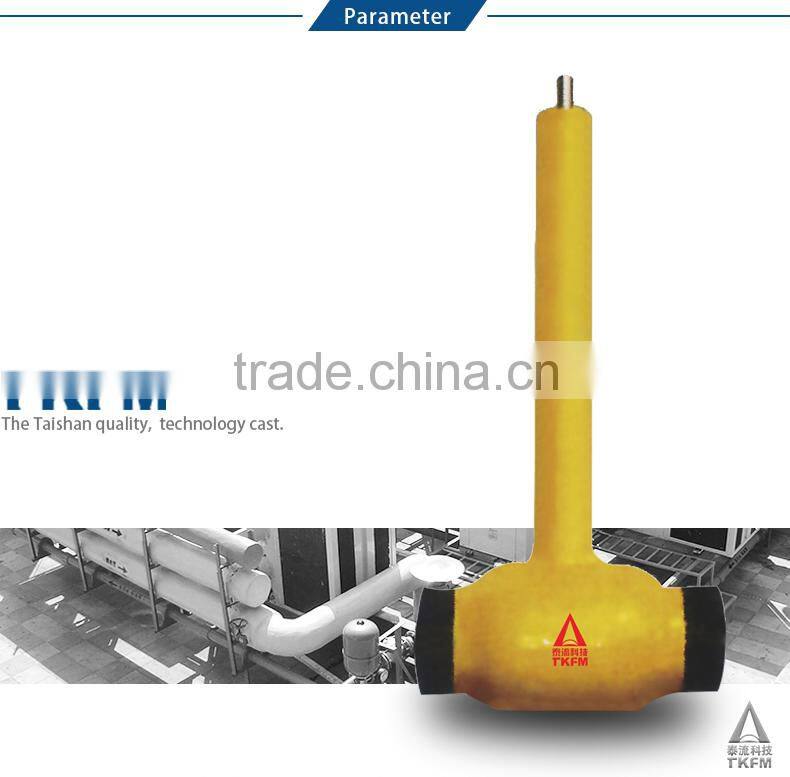

TKFM Hot Sale Directly Sale Handle One Way Gas Service Valve Underground Ball Valve Long Stem

TKFM Hot Sale Directly Sale Handle One Way Gas Service Valve Underground Ball Valve Long Stem thumbnail-1
TKFM Hot Sale Directly Sale Handle One Way Gas Service Valve Underground Ball Valve Long Stem photo-1
US$ 13 - 380 MOQ: 10 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Shenyang Taike Fluid Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Manual
Material Stainless Steel
Temperature of Media Normal Temperature
Media Gas
Port Size DN20-150(3/4"-6")
Place of Origin Liaoning, China
Model Number HQM61FC-25
Brand Name TKFM
Application General
Product Description

 TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

unit:millimeter(mm)
Size NPS L D D1 D2
CN EU
DN50 2 300 50 57 60.3 114
DN65 2-1/2 300 65 76 76.1 140
DN80 3 300 80 89 88.9 165
DN100 4 325 100 108 114.3 216
DN125 5 350 125 133 141.3 219
DN150 6 490 150 159 168.3 355
DN200 8 580 200 219 219.1 356
DN250 10 550 250 273 273.1 457
DN300 12 630 300 325 323.9 508
DN350 14 762 337 377 355.6 559
DN400 16 840 387 426 406.4 660
DN500 20 1010 489 530 508 812
DN600 24 1140 591 630 609.6 1016
DN700 28 1346 686 730 711.2 1095
DN800 32 1524 781 830 812.8 1237
DN900 36 1727 874 930 914.4 1385

TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

unit:millimeter(mm)
Size NPS D D1 D2 L
CN EU S L
DN50 2 40 57 60.3 89 300 1000
DN65 2-1/2 50 76 76.1 114 300 1000
DN80 3 65 89 88.9 140 300 1000
DN100 4 80 108 114.3 165 325 1000
DN150 6 125 159 168.3 219 350 1000
DN200 8 150 219 219.1 267 400 1000
DN250 10 200 273 273.1 355 560 1000
DN300 12 250 325 323.9 457 635 1100
DN400 16 337 426 406.4 558 760 1360
DN500 20 387 530 508 660 910 1510
DN600 24 489 0.63 609.6 812 1065 1660
DN700 28 591 730 711.2 1016 1346 1940
DN800 32 686 830 812.8 1095 1524 2120
DN900 36 781 930 914.4 1237 1727 2320

TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

No. Part name Material
1 Valve cover A105 F304 LF2
2 Coil spring Inconel X750
3 Spring seat A105 F304 LF2+ENP
4 Seat A105+ENP F304 LF2+ENP
5 O-ring NBR/VITON
6 Sealing ring RPTFE/Molon/Teflon
7 Lining A105+ENP F304 LF2+ENP
8 Ball A105+ENP F304 LF2+ENP
9 Body A105 F304 LF2
10 Packing gland F6a F304 F304
11 Packing gland A105 F304 LF2
12 Thrust bearing LSS304
13 Valve neck A105 F304 LF2
14 Stuffing box A105 F304 LF2
15 Stem F6a F304 F304
16 Extension tube connectiong plate A105 F304 LF2
17 With sleeve A105 F304 LF2
18 Thrust bearing SS304
19 Gland A105 F304 LF2
20 Disk drive connected A105 F304 LF2
21 On stem F6a F304 F6a
22 Extension tube  A105 F304 A105
23 Extensions bar A105 F304 A105
24 Nut A194 2H/2HM A194 8 A14 2H/2HM
25 Stud A193 B7/B7M A193 B8 A193 B7M
26 Pin SS304
27 Turbine head Assemblies





Five Advantages:

1. integral seamless steel tube pressed full-auto welded without leaking outward.

2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.

3. can be directly buried without need of a high ground well,saving the engineering cost.

4. both valve and pipeling are made of the same material, without the condition of uneven sterss.

5. in multiple connection combination, for use with special working conditions.



This series of products sealing performance, reliable, maintenance-free for 20 years, can be installed in needs to be buried or carts through the pipeline for the off-road by lengthening the stem , operating lever can be achieved through a dedicated vertical distance ground operation of the valve switch, easy to use saving maintenance costs, protect the personal safety of operating personnel. The main use of natural gas mains, branch pipelines, city gas compressor stations, gas pipelines, gas equipment for urban heat main branch pipelines.

TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

(1) Shell Hydrostatic Test

ANSI B 16.34 Section 7.1
Valve Size NPS Test pressure Test Time. Sce
Below DN50 1:5 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 60 Sce
Up DN250 Max. Operating Pressure 180 Sce
  Test pressure should be above 1.5 times  than the valve's Max work pressure (100F)

(2) Seal Hydrostatic Test

The pressure should be more 1.1 times than working pressure by seal hydrastatic test

 TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

ANSI B 16.34 Section 7.2
Valve Size NPS Test pressure Test Time. Sce
below DN50 1:1 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 30 Sce
above DN250 Max. Operating Pressure 60 Sce
  Test pressure should be more 1.5 times  than the valve's Max work pressure (100F) 180Sce

(3) Seal Air Test

Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.

TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

Packaging & Shipping

 TKFM hot sale directly sale handle one way gas service valve underground ball valve long stemTKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

Our Services



1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.

2.Market, technical support and after-sale service within 24 hours.

3. You can order your own configuration.

A: Manual     B: pneumatic   C: electric   D: bare shaft  E: disc with pin    F: disc without pin   G: double half shaft   H: one piece body   I: two pieces body  J: logo

TKFM hot sale directly sale handle one way gas service valve underground ball valve long stemTKFM hot sale directly sale handle one way gas service valve underground ball valve long stemTKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

Company Information

 TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

Fully welded ball valve - Company advantages:

1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169

2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.

3. Low MOQ:  Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.

4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.

5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.

6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.

7. Quick Delivery: We have the large stock for some hot products.

8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.

TKFM hot sale directly sale handle one way gas service valve underground ball valve long stem

FAQ



1.What's payment terms?

30% down payment, 70% balance paid before shipment.



2.What's MOQ?

One set.



3.How control the quality of ball valve?

Select high quality raw material

Strict required during machining

Seat material comply with food grade

Tested twice to insure zero leakage



4.Delivery time?

15-25 days after received the advance payment.
