Product Details
Place of Origin: | Guangdong, China | Brand Name: | BT | Model Number: | BT-Gpon-1g-1 |
Product Description
GPON ONU 1GE+1FE HGU GPON/GEPON ONT/ONU Ethernet RJ45 Ports Comply with Huawei ZTE ZYXEL Fiberhome OLT GPON
GEPON ONU FD101HC is designed mainly for FTTH use and FTTO use as well. GEPON ONU FD101HC support 1000Base-PX10/PX20 standard with 1:64/1:32 maximum optical splitting ratio and 10/20km distance, and provide 1uplink GE PON port.
ONU FD101HC together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
ONU FD101HC has 1 PON port and one 10/100BASE-T ports.
FD511HZ GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
FD511HZ is based on ZTE high-performance xPON access chip. The chip supposes three mode:GPON/EPON/P2P, comply with the GPON standard of g.984, g.983, 802.3-2005, CTC EPON equipment technical requirements, have good xPON interoperability compatibility.
FD511HZ provide one GE auto-adapting Ethernet ports. The FD511HZ features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the FD511HR provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Support downlink rate 2.448Gbit/s, uplink rate is 1.244Gbit/s
Support 32 TCONT, 256 GEMPORT
Support bidirectional FEC, supports the RS (255, 239) FEC decoding
Support AES128 encryption and decryption functions with G.984 standard
Support SBA and DBA bandwidth allocation
Support PLOAM, embedded OMCI management with G.984 standard
Support Dying-Gas detection and reporting
Support rogue ONU detection
Support GPON energy saving of G987.3 protocol
Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ
Support CTC2.1, TR156 requirements of flexible tag processing
Support for flexible flow classification, maximum 520 flow classification rules
Support link error monitoring and loop monitoring
Support a variety of multicast forwarding mode, support multicast replication
Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode
UNI interface supports STP/RSTP protocol
Provide QoS guarantees for different priority business through SLA restraining, Policing, queue management scheduling / congestion avoidance, discarding management mode
nSupport flow control based on entrance , choose Pause frame reaction pressure to Packet loss for the business beyond
Support HQoS function
Indicator | Description | ||
1 | LAN | LAN port status | On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up; |
2 | LOS | GPON optical signals | On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
3 | PON | ONT Register | On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT; |
4 | PWR | Power status | On: The ONT is power on; Off: The ONT is Power off; |
Item | Parameters | Specification |
Interface | PON Port | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128 |

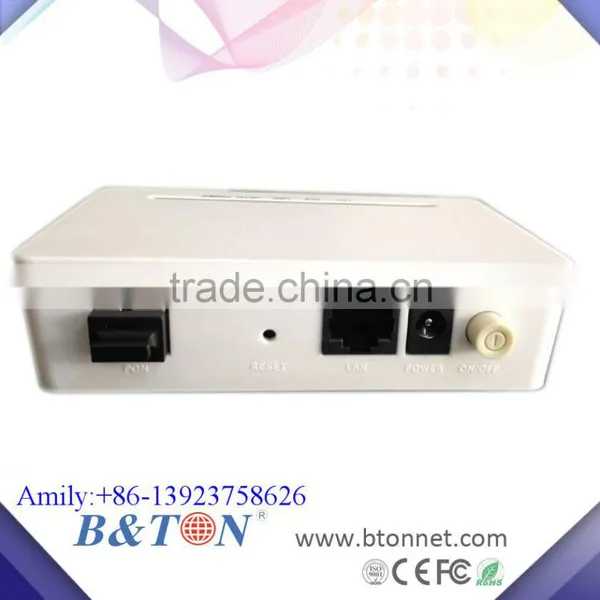

Ethernet Port(LAN) | 1*GE Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter | |
Power Supply Port | 12V DC input | |
Management | Network Management | Standard compliant OMCI interface as defined by ITU-T G.984.4 Support WEB management |
Management Function | Status monitor, Configuration management, Alarm management, Log management | |
Environmental | Shell | Plastic casing |
Power | External 12V 0.5A AC/DC power supply adapter Power consumption: <3W | |
Dimensions | 110mm(L) x70mm(W) x30mm (H) 0.1kg | |
Environment | Operating Temperature:0~50℃ Storage Temperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) Storage Humidity:5%~95%(Non-condensing) |
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
