Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > FTTH GPON EPON 4FE+1POTS + CATV+ Wi-Fi GPON ONT ONU Modem

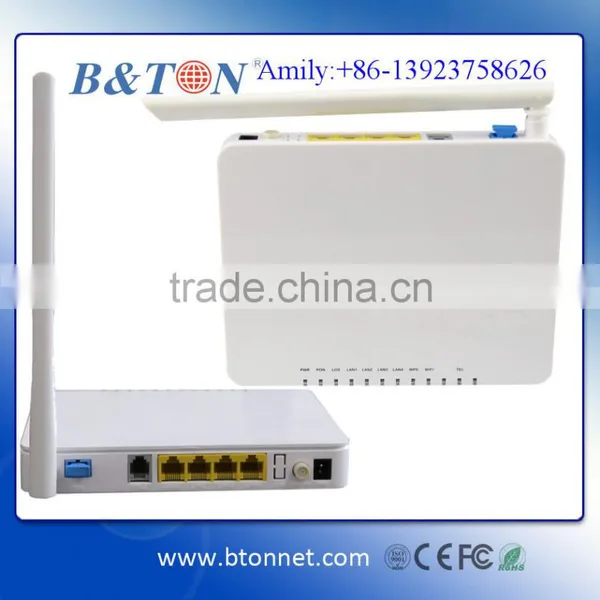

FTTH GPON EPON 4FE+1POTS + CATV+ Wi-Fi GPON ONT ONU Modem

US$ 60 - 95 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

BT-Gpon-614

Contact Supplier Request Quote Chat Now

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name BT

Model Number BT-Gpon-614

FTTH GPON EPON 4FE+1POTS + CATV+ Wi-Fi GPON ONT ONU Modem

614HW GPON HGU ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice andvideo service based on the GPON network

Product Description

614HW provide two POTS ports, four FE auto-adapting Ethernet ports and one 802.11 n/b/g WiFi port. The FD614HW features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the FD614HW provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.

Application&solution

Typical Access Solution: FTTH, FTTB+LAN and FTTB+EOC
Typical Service: Broadband Access, IPTV, VOD and CCTV

Indicator			Description
1	WIFI	WIFI	Blinking:Data is being transmitted On:Wi-Fi function Opens
2	LOS	GPON optical signals	On: Optical power lower than receiver sensitivity ; Off: Optical in normal
3	PON	ONT Register	On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT;
4	TEL	Telephone port status	On:The connection between the TEL port and the voice server has been set up Blinking:The voice service of the TEL port is established; Off:The connection between the TEL port and the voice server is not set up.
5	LANn	LAN port status	On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up;
6	PWR	Power status	On: The ONT is power on; Off: The ONT is Power off;

Item	Parameters	Specification
Interface	PON Port	1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128
	Ethernet Port(LAN)	4*10/100M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter
	POTS Port	2*RJ11 with 3REN Max 1km distance Balanced Ring, 55V RMS
	Power Supply Port	12V DC input
Management	NetworkManagement	Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management
Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Environmental Specifications	Shell	Plastic casing
	Power	External 12V 1A AC/DC power supply adapter Power consumption: <7W
	Dimensions	170mm(L)130mm(W)30mm(H) 0.3kg
	Environment	Operating Temperature:0~45℃ StorageTemperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) StorageHumidity:10%~90%(Non-condensing)
