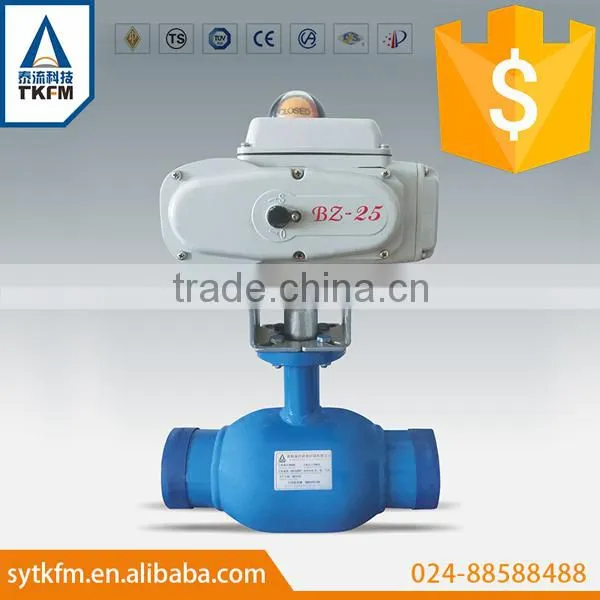

TKFM Factory Directly Sale Water Gas Oil Media Electric Standard Fully Welded Ball Valve

TKFM Factory Directly Sale Water Gas Oil Media Electric Standard Fully Welded Ball Valve thumbnail-1
TKFM Factory Directly Sale Water Gas Oil Media Electric Standard Fully Welded Ball Valve photo-1
US$ 27 - 1,938 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Shenyang Taike Fluid Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Other, electric
Material Stainless Steel
Temperature of Media Medium Temperature
Media Water
Port Size DN50-350(2"-14")
Place of Origin Liaoning, China
Model Number HQG961FC-25
Brand Name TKFM
Application General
Product Description

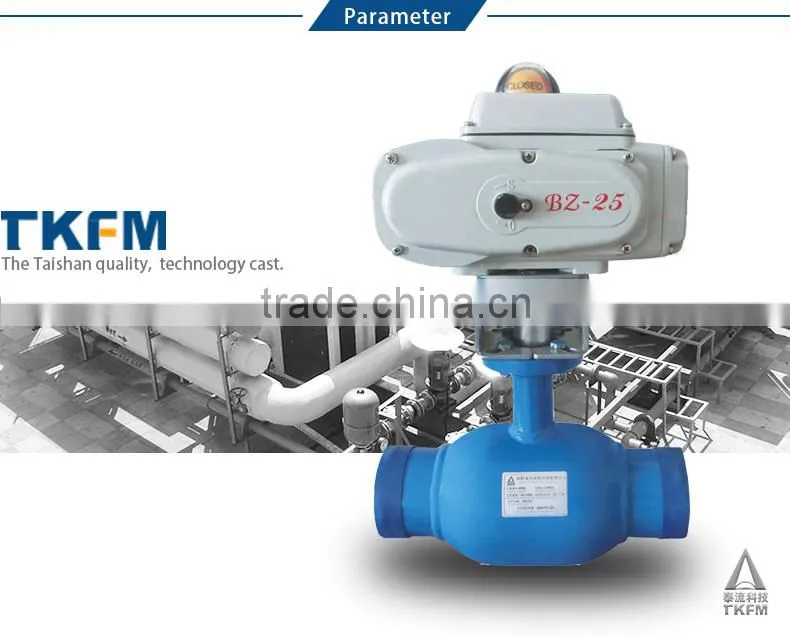

TKFM factory directly sale water gas oil media electric standard fully welded ball valve

TKFM factory directly sale water gas oil media electric standard fully welded ball valve

                                                unit:millimetre(mm)
Size NPS A b L D D1 D2
CN EU
DN15 3/8 129 64 210 15 18 21.3 42
DN20 3/4 129 64 230 15 25 26.7 42
DN25 1 159 76 230 20 32 33.4 48
DN32 1-1/4 159 85 260 25 42 42.2 60
DN40 1-1/2 230 95 300 32 48 48.3 76
DN50 2 230 100 300 40 57 60.3 89
DN65 2-1/2 300 159 300 50 76 76.1 114
DN80 3 300 170 300 65 89 88.9 140
DN100 4 450 192 325 80 108 114.3 185
DN125 5 450 208 325 100 133 141.3 216
DN150 6 450 241 350 125 159 168.3 219

TKFM factory directly sale water gas oil media electric standard fully welded ball valve

                                          unit:millimetre(mm)
Size NPS A b L D D1 D2
CN EU
DN15 3/8 129 90 210 15 18 21.3 42.7
DN20 3/4 159 103 230 20 25 26.7 48
DN25 1 159 107 260 25 32 33.4 60
DN32 1-1/4 230 120 260 32 42 42.2 76
DN40 1-1/2 230 126 300 40 48 48.3 89
DN50 2 300 177 300 50 57 60.3 114
DN65 2-1/2 300 186 300 65 76 76.1 140
DN80 3 400 210 300 80 89 88.9 165
DN100 4 400 214 325 100 108 114.3 216
DN125 5 450 220 350 125 133 141.3 219
DN150 6 450 280 490 150 159 168.3 355



Smart Electric Valve Executor

model torque rpm

travle

time

(S)

Hand

wheel

turns

Power

supply

voltage

(V)

Power

phase

Frequency

(HZ)

Motor

power

(KW)

Rated

current

(A)

Work

system

connection

of flange

MAX

diameter

(mm)

weight

(kg)

Default

flanges

Note

the

flange
BIT08 60 1 15 8.5 380 3 50 15 0.25  S2(10min) F05 - 22 11
BIT10 100 1 15 8.5 380 3 50 25 0.28  S2(10min) F05 - 22 11
BIT15 150 1 18 10 380 3 50 40 0.39  S2(10min) F05 - 28 13
BIT15 150 2 9 10 380 3 50 45 0.50  S2(10min) F05 - 28 13
BIT20 200 1 18 10 380 3 50 45 0.50  S2(10min) F07 - 28 13
BIT20 200 2 9 10 380 3 50 45 0.50  S2(10min) F07 - 28 13
BIT30 300 0.5 24 12.5 380 3 50 50 0.40  S2(10min) F10 - 38 17
BIT30 300 1 12 12.5 380 3 50 50 0.40  S2(10min) F10 - 38 17
BIT30 300 2 6 12.5 380 3 50 60 0.45  S2(10min) F10 - 38 17
BIT40 400 0.5 24 12.5 380 3 50 60 0.45  S2(10min) F10 - 38 17
BIT40 400 1 12 12.5 380 3 50 60 0.45  S2(10min) F10 - 38 17
BIT40 400 2 6 12.5 380 3 50 90 0.73  S2(10min) F10 - 38 17
BIT50 500 0.5 24 12.5 380 3 50 90 0.73  S2(10min) F10 - 38 17
BIT50 500 1 12 12.5 380 3 50 90 0.73  S2(10min) F10 - 38 17
BIT50 500 2 6 12.5 380 3 50 90 0.73  S2(10min) F10 F14 38 17
BIT60 600 0.5 28 14.5 380 3 50 90 0.73  S2(10min) F12 F14 50 25
BIT60 600 1 14 14.5 380 3 50 140 0.80  S2(10min) F12 F14 50 25
BIT60 600 2 7 14.5 380 3 50 140 0.80  S2(10min) F12 F14 50 25
BIT80 800 0.5 28 14.5 380 3 50 140 0.80  S2(10min) F12 F14 50 25
BIT80 800 1 14 14.5 380 3 50 180 0.98  S2(10min) F12 F14 50 25
BIT80 800 2 7 14.5 380 3 50 180 0.98  S2(10min) F12 - 50 25
BIT90 900 0.4 37 38.8 380 3 50 50 0.40  S2(10min) F12 F14 60 35
BIT100 1000 0.5 28 14.5 380 3 50 180 0.98  S2(10min) F12 F14 50 25
BIT100 1000 1 14 14.5 380 3 50 180 0.98  S2(10min) F12 - 50 25
BIT120 1200 0.4 37 38.8 380 3 50 60 0.45  S2(10min) F14 - 60 35
BIT160 1500 0.4 37 38.8 380 3 50 90 0.73  S2(10min) F14 - 60 35
BIT180 1800 0.3 45 46 380 3 50 140 0.80  S2(10min) F14 F16 75 50
BIT240 2400 0.3 45 46 380 3 50 180 0.98  S2(10min) F14 F16 76 50
BIT300 3000 0.3 45 46 380 3 50 180 0.98  S2(10min) F14 F16 75 50



TKFM factory directly sale water gas oil media electric standard fully welded ball valve

No. Part name Material
1 Body Carbon steel St37.8
2 Neck PTFE+SPCB
3 Ball  304 stainless steel
4 Stem 2Cr13
5 Seat 25%C+PTFE
6 Metal washer 60Si2Mn
7 Spring 60Si2Mn
8 "O" Ring FPM
9 End piece Carbon steel St37.8
10 Handle Carbon steel +HCr
11 "O" Ring FPM
12 Gland  304 stainless steel



Five Advantages:

1. integral seamless steel tube pressed full-auto welded without leaking outward.

2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.

3. can be directly buried without need of a high ground well,saving the engineering cost.

4. both valve and pipeling are made of the same material, without the condition of uneven sterss.

5. in multiple connection combination, for use with special working conditions.



This series of products for welded connections, reliable sealing performance, maintenance-free for 20 years, can be installed in the the heat transfer stations, heat the main line, branch piping, heat exchangers and other ancillary equipment or device is connected, make off with a deadline, the main use of the range there are urban heat, city gas, city water supply and drainage lines, and control system is connected to remote automatic control, the use of fine small control device, small footprint.

TKFM factory directly sale water gas oil media electric standard fully welded ball valve

(1) Shell Hydrostatic Test

ANSI B 16.34 Section 7.1
Valve Size NPS Test pressure Test Time. Sce
Below DN50 1:5 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 60 Sce
Up DN250 Max. Operating Pressure 180 Sce
  Test pressure should be above 1.5 times  than the valve's Max work pressure (100F)

(2) Seal Hydrostatic Test

The pressure should be more 1.1 times than working pressure by seal hydrastatic test

TKFM factory directly sale water gas oil media electric standard fully welded ball valve

ANSI B 16.34 Section 7.2
Valve Size NPS Test pressure Test Time. Sce
below DN50 1:1 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 30 Sce
above DN250 Max. Operating Pressure 60 Sce
  Test pressure should be more 1.5 times  than the valve's Max work pressure (100F) 180Sce

(3) Seal Air Test

Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.

TKFM factory directly sale water gas oil media electric standard fully welded ball valve

Packaging & Shipping

 TKFM factory directly sale water gas oil media electric standard fully welded ball valveTKFM factory directly sale water gas oil media electric standard fully welded ball valve

Our Services

1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.

2.Market, technical support and after-sale service within 24 hours.

3. You can order your own configuration.

A: Manual     B: pneumatic   C: electric   D: bare shaft  E: disc with pin    F: disc without pin   G: double half shaft   H: one piece body   I: two pieces body  J: logo

 TKFM factory directly sale water gas oil media electric standard fully welded ball valveTKFM factory directly sale water gas oil media electric standard fully welded ball valveTKFM factory directly sale water gas oil media electric standard fully welded ball valve

Company Information

 TKFM factory directly sale water gas oil media electric standard fully welded ball valve

Fully welded ball valve - Company advantages:

1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169

2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.

3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.

4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.

5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.

6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.

7. Quick Delivery: We have the large stock for some hot products.

8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.

TKFM factory directly sale water gas oil media electric standard fully welded ball valve

FAQ

1.What's payment terms?

30% down payment, 70% balance paid before shipment.



2.What's MOQ?

One set.



3.How control the quality of ball valve?

Select high quality raw material

Strict required during machining

Seat material comply with food grade

Tested twice to insure zero leakage



4.Delivery time?

15-25 days after received the advance payment.
