Product Description

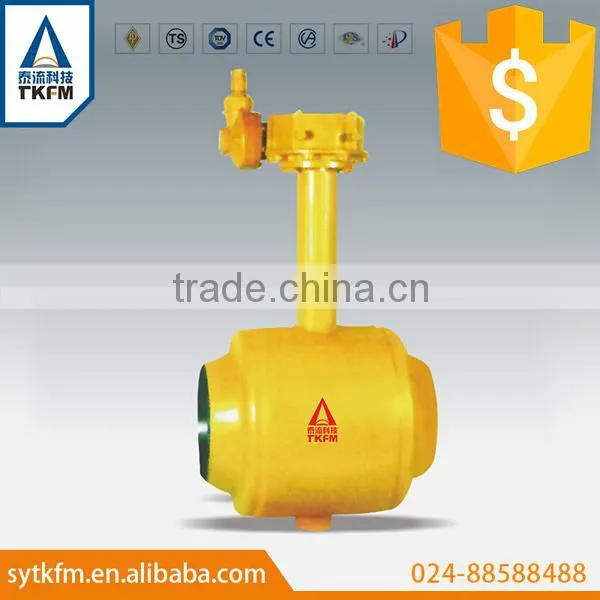

 TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve

TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve

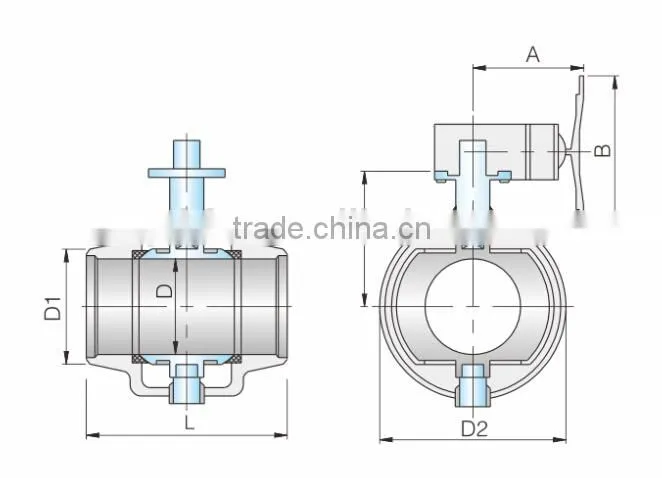

                                                                                                                          unit:millimetre(mm)
Size NPS A B L D D1 D2 E
CN EN
DN200 8 252 500 550 200 219 219.1 356 345
DN250 10 236 500 580 250 273 273.1 457 402
DN300 12 331 600 630 300 325 323.9 508 491
DN350 14 331 600 762 337 377 355.6 559 479
DN400 16 360 700 840 387 426 406.4 660 540
DN500 20 413 800 1010 489 530 508 812 662
DN600 24 433 900 1140 591 630 609.6 1016 790
DN700 28 433 900 1346 686 730 711.2 1095 860
DN800 32 433 900 1524 781 830 812.8 1237 913
DN900 36 433 900 1727 874 930 914.4 1385 965
DN1000 40 550 900 1900 976 1020 1016 1600 970
DN1100 - 550 900 2000 1020 1130 117.6 1700 975
DN1200 48 550 900 2100 1166 1230 1219.2 1967 980
DN1300 - 550 900 2200 1262 1320 1320.2 2100 990
DN1400 - 550 900 2300 1360 1430 1422.4 2281 990

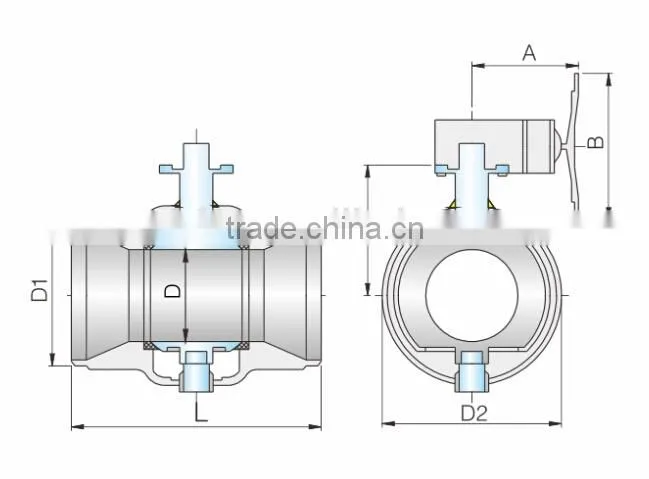

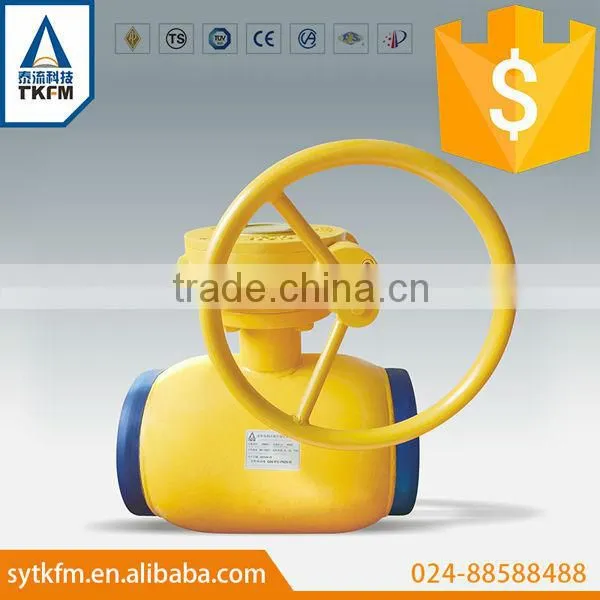

TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve

                                                                                                                           unit:millimetre(mm)
Size NPS A B L D D1 D2 E
CN EN
DN200 8 243 400 400 150 219 219.1 267 315
DN250 10 252 500 560 200 273 273.1 356 346
DN300 12 236 500 635 250 325 323.9 457 402
DN350 14 331 600 650 300 377 355.6 508 491
DN400 16 331 600 760 337 426 406.4 559 479
DN450 18 331 600 842 337 477 457.2 559 479
DN500 20 360 700 910 387 530 508 680 540
DN550 - 360 700 1065 438 - - 718 577
DN600 24 413 800 1092 489 630 609.6 812 662
DN650 - 413 800 1245 540 - 660.4 898 755
DN700 28 433 900 1346 591 730 711.2 1016 790
DN750 - 433 900 1397 635 - 768 1020 835
DN800 32 433 900 1524 686 830 812.8 1095 860
DN850 - 433 900 1625 737 - 863.6 1172 793
DN900 36 433 900 1727 781 930 914.4 1237 913
DN1000 40 433 900 1900 874 1020 1016 1385 968
DN1100 - 550 900 2000 976 1130 1117.6 1600 970
DN1200 48 550 900 2100 1020 1230 1219.2 1700 975
DN1300 - 550 900 2200 1166 1320 1320.2 1967 980
DN1400 - 550 900 2300 1262 1430 1422.4 2100 990

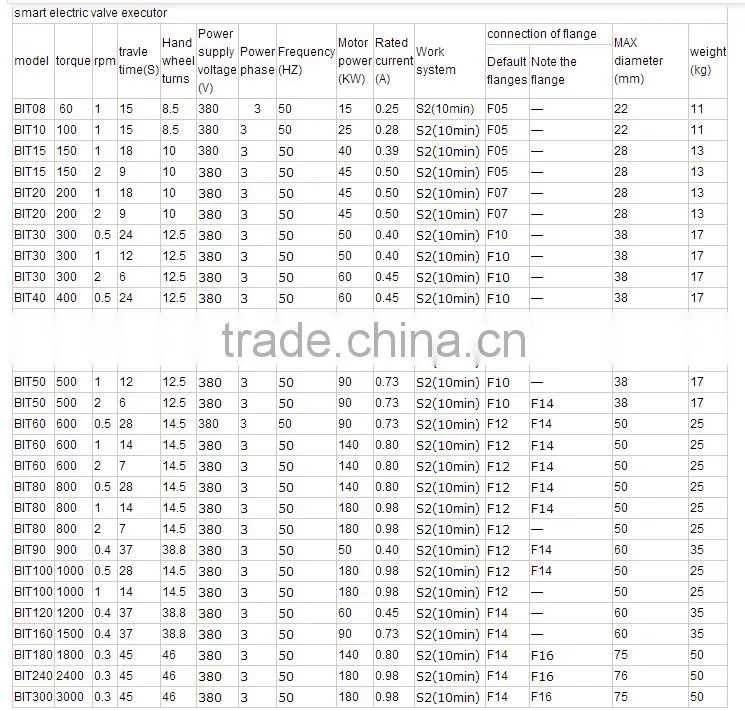

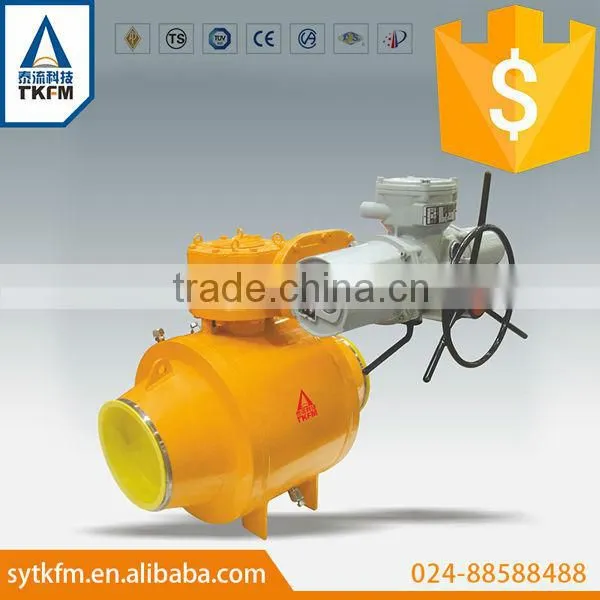

smart electric valve executor

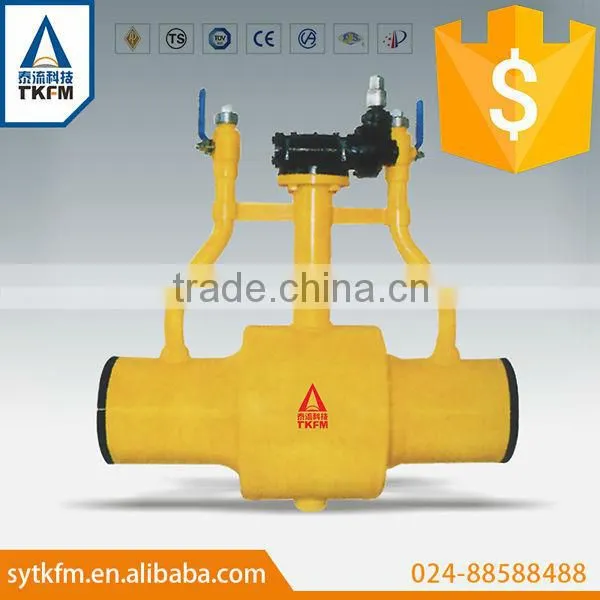

TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve

TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve

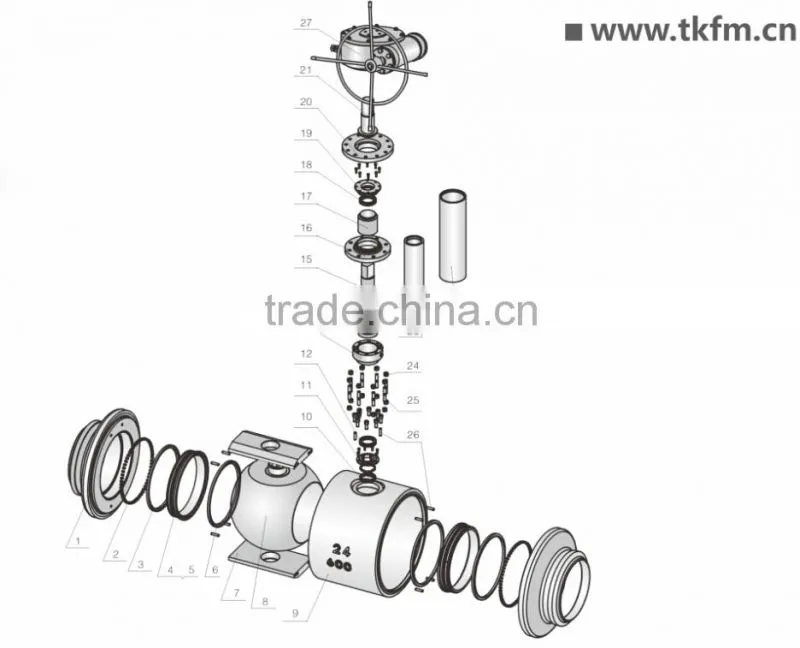

No. Part name Material
1 Valve cover A105 F304 LF2
2 Coil spring Inconel X750
3 Spring seat A105 F304 LF2+ENP
4 Seat A105+ENP F304 LF2+ENP
5 O-ring NBR/VITON
6 Sealing ring RPTFE/Molon/Teflon
7 Lining A105+ENP F304 LF2+ENP
8 Ball A105+ENP F304 LF2+ENP
9 Body A105 F304 LF2
10 Packing gland F6a F304 F304
11 Packing gland A105 F304 LF2
12 Thrust bearing LSS304
13 Valve neck A105 F304 LF2
14 Stuffing box A105 F304 LF2
15 Stem F6a F304 F304
16 Extension tube connectiong plate A105 F304 LF2
17 With sleeve A105 F304 LF2
18 Thrust bearing SS304
19 Gland A105 F304 LF2
20 Disk drive connected A105 F304 LF2
21 On stem F6a F304 F6a
22 Extension tube  A105 F304 A105
23 Extensions bar A105 F304 A105
24 Nut A194 2H/2HM A194 8 A14 2H/2HM
25 Stud A193 B7/B7M A193 B8 A193 B7M
26 Pin SS304
27 Turbine head Assemblies



Five Advantages:

1. integral seamless steel tube pressed full-auto welded without leaking outward.

2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.

3. can be directly buried without need of a high ground well,saving the engineering cost.

4. both valve and pipeling are made of the same material, without the condition of uneven sterss.

5. in multiple connection combination, for use with special working conditions



This series of products for the whole forging valve side of the tube. high strength,  strong anti-extrusion capability, 20-year maintenance-free. can be installed in need buried or carts through the pipeline for cut off. the main use of natural gas main line, branch line city gas compressor stations, gas pipelines, gas and other ancillary equipment, and control system is connected to remote automatic control.



CERTIFICATION: ISO, TS, API, GOST, CE....etc

We pay much attention in Test process:

(1) Shell Hydrostatic Test

ANSI B 16.34 Section 7.1
Valve Size NPS Test pressure Test Time. Sce
Below DN50 1:5 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 60 Sce
Up DN250 Max. Operating Pressure 180 Sce
  Test pressure should be above 1.5 times  than the valve's Max work pressure (100F)

(2) Seal Hydrostatic Test

The pressure should be more 1.1 times than working pressure by seal hydrastatic test

 TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve

ANSI B 16.34 Section 7.2
Valve Size NPS Test pressure Test Time. Sce
below DN50 1:1 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 30 Sce
above DN250 Max. Operating Pressure 60 Sce
  Test pressure should be more 1.5 times  than the valve's Max work pressure (100F) 180Sce

(3) Seal Air Test

Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.

 TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve



Packaging & Shipping

 TKFM hot sale low pressure pipeline gas shielded welding trunnion ball valve



Our Services



1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.

2.Market, technical support and after-sale service within 24 hours.

3. You can order your own configuration.

A: Manual     B: pneumatic   C: electric   D: bare shaft  E: disc with pin    F: disc without pin   G: double half shaft   H: one piece body   I: two pieces body  J: logo
