Cisco Catalyst WS-C2960S-48FPS-L POE Switch

Name: Cisco Catalyst WS-C2960S-48FPS-L POE Switch
Brand: B&TON
SKU: 112996483
Availability: InStock

Shenzhen Bton Weiye Technology Co., Ltd.

US$ 1 - 40 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

B&TON

Model Number:

BT-P1601E

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name B&TON

Model Number BT-P1601E

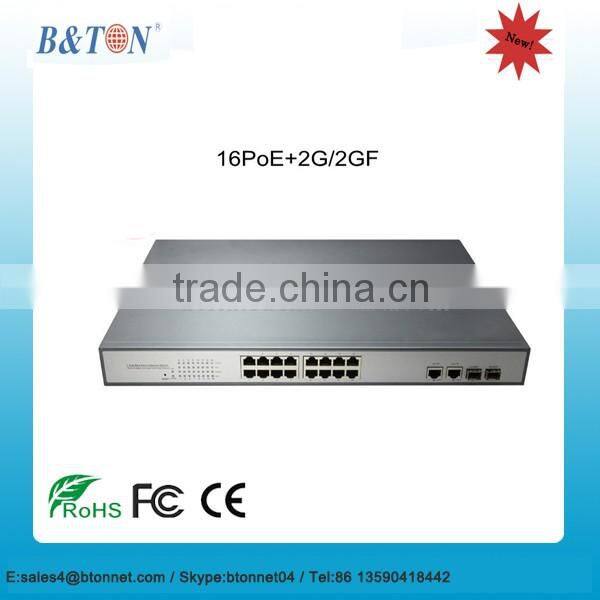

16 Port PoE Switch with 16 PoE Ports and 2 SC Fiber Port

Features

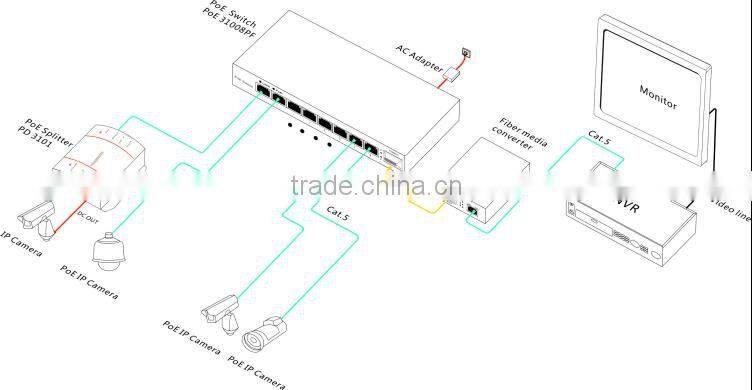

Can supply power to network surveillance cameras that without PoE function

9x 10/100Mbps auto-sensing RJ45 ports, 8x 10/100Mbps PoE ports, 1x 155Mbps SC fiber port

Supports port auto-flip (Auto MDI/ MDIX)

External power supply

Maximum PoE ports power: 120W (Port 1 to Port 8)

Maximum power of single PoE port: 15.4W

Adopts store-and-forward architecture

IEEE 802.3af power on up to 8 ports

Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall

Built-in 1U rack power supply series, easy to place it into standard mounting brackets

Specification

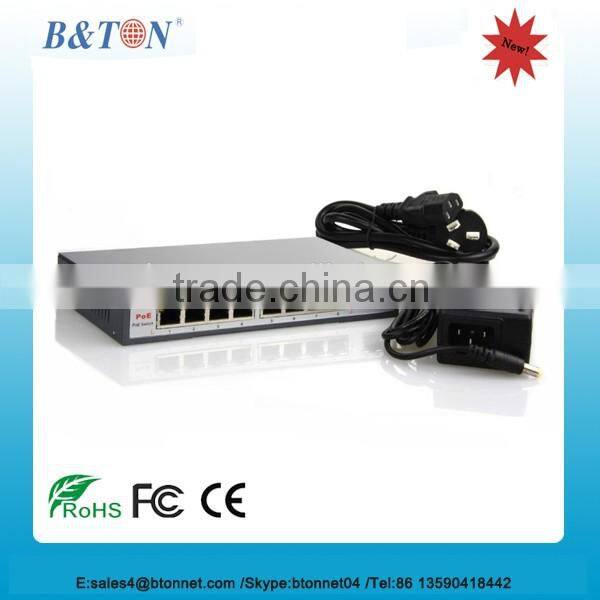

Product Name	9-Port PoE Switch with 8 PoE Ports and 1 SC Fiber Port
Product Model	POE31008PF
Connector	9x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 8x PoE ports, 1x 155Mbps SC fiber port
Transfer Mode	Store-And-Forward
Network Medium	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Network Medium	Data transmission distance: 100m; Fiber transmission: 25km
Performance Specifications	Bandwidth: 1.6Gbps (non-blocking) Network Latency (100 to 100M bps): maximum delay less than 20 microseconds Packet Buffer Memory: 96KB Address Database Size: 1,000 MTBF: 190,000 hours (about 21 years)
Network Protocols and Standards	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af
LEDs Status	System: power supply Every Port: connecting, PoE working status
Power	Maximum PoE power: 120W PoE port power:15.4 W(1~8 port) Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

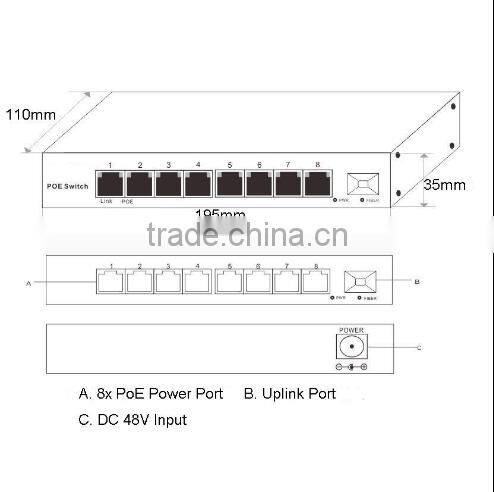

Dimensions/Weight	Dimensions(LxWxH): 195x110x35mm, 0.52kg
Working Environment	Operating Temperature: 0 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing
Radiation	CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety	CE Mark ,commercial CE/LVD EN60950, RoHS
Warranty	1 year warranty(2 yeas warranty for power adapter)
