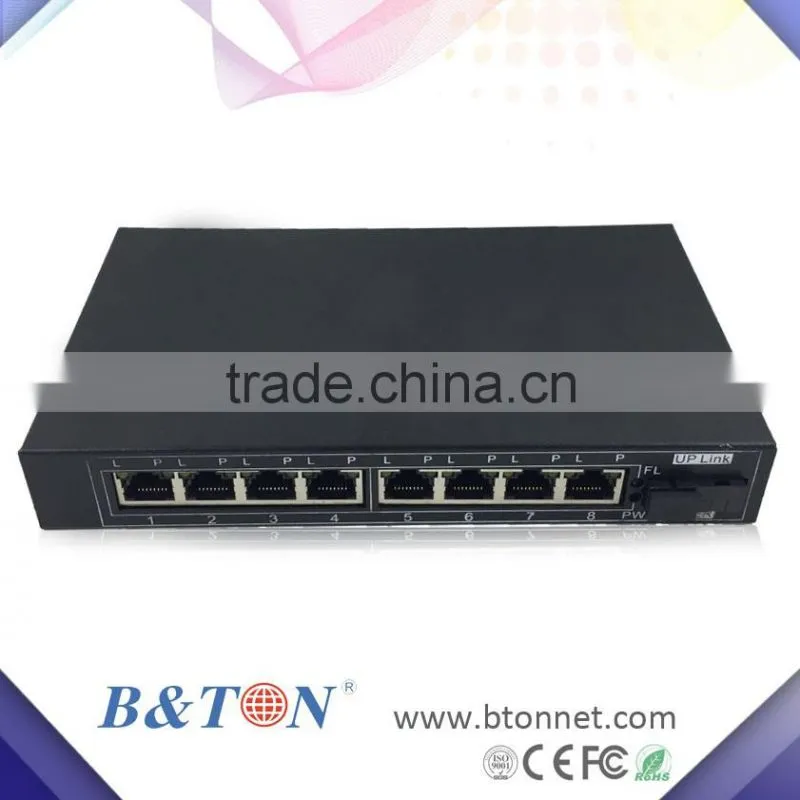

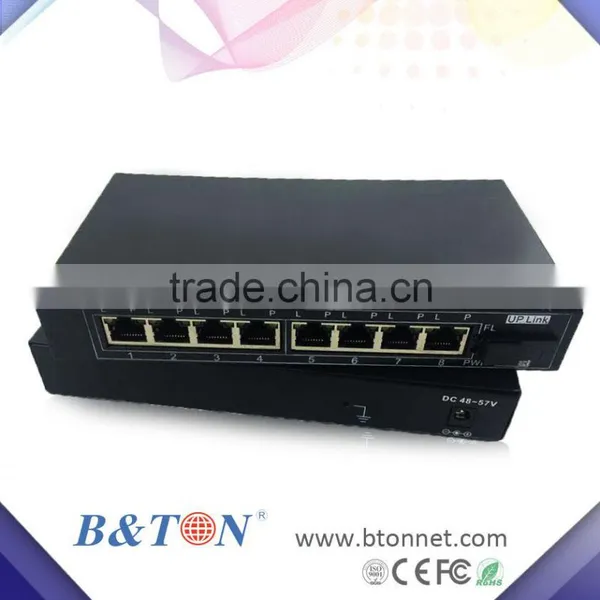

8port POE Fiber Switch
10/100M unmanaged PoE switch can provide both 10/100M Ethernet data and Power over network cable, it can be used as Ethernet Power Sourcing Equipment, it can automatically detect and identify whether connected devices such as IP camera comply with standard IEEE PoE 802.3af, 802.3at and supply power for them. 10/100M unmanaged PoE switch easier the deployment of Wilress AP, IP camera and IP-based network equipment. PoE Technology is Power over Ethernet technology, It is refering to transfer both Ethenet data and and DC Power at the same time for IP Phone, Wilress AP, IP-based camera. These devices which receive DC power is called Powered Device(PD).
ØFeatures
1.IEEE 802.3af/at power on up to 4 ports
2.Supply power to wireless access points and surveillance cameras over Cat-5 cabling
3.8 x 10/100 Mbps Ports with AutoUplink™
4.Supports PoE power up to 15.4/25.5W for each PoE port
5.Supports PoE power up to 110/220W for all PoE ports
6.Supports PoE IEEE 802.3af/at compliant PDs
7.Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
8.2K entry MAC address table of the PoE Switch with auto-learning and auto-aging
9.LED indicators for monitoring power, link, activity and speed
10.External power adapter supply
ØTechnical parameter list
Product Name |
8-Port AF/AT PoE Switch with 8 PoE Ports and 1 Uplink |
Model |
BT-P801F |
Connector Type |
8x 10/100M copper cable RJ45 ports |
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
Bandwidth |
1.6Gbps (non-blocking) |
Address Database Size |
1K |
MTBF |
190,000 hours (about 21 years) |
Forwarding Mode |
Store-And-Forward |
Network Protocols |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af/at DTE Power via MDI; IEEE 802.3af/at |
LED Display |
System: power supply; Every Port: connecting, PoE working status |
Power Supply |
Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
PoE Ports |
Port1-8 support POE |
PoE Port Power |
15.4/25.5W for each POE port |
PoE Standard |
IEEE 802.3af/at |
PoE Feature |
All ports support MDI/MDIX |
Working Environment |
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing |
Certification |
CE Mark ,commercial; CE/LVD EN60950, RoHS |
Radiation |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
Transmission Distance |
Data transmission distance: 100m |
Product Size |
118x85x27mm, 0.24kg |
Warranty |
1 year warranty(2 yeas warranty for power adapter) |
ØOrder Information:
Product: BT-P801F
Type: 8-PORT 10/100 switch: 8 PoE ports, IEEE 802.3af/at;
PoE Power Output: 15.4/25.5Watts per port. Total power consumption: 110/220 Watts
Mid-span: Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
End-span: Data and Power provided over 1/2(+), 3/6(-) , OPTIOANL
Package Contents |
8-Port 10/100 SWITCH with 8 POE ports and 1 Fiber Uplink |
AC Adapter | |
User Guide | |
Warranty Card |
Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.
B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China.

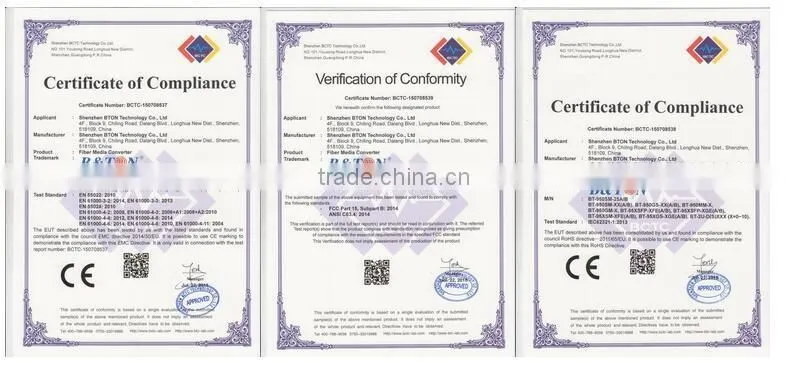

Our products are all certified with ROHS,CE,FCC standards. If you are interested in any items, we shall be pleased to provide you with competitive price, superior quality and fast delivery. We sincerely look forward to estabishing partnership with you.
