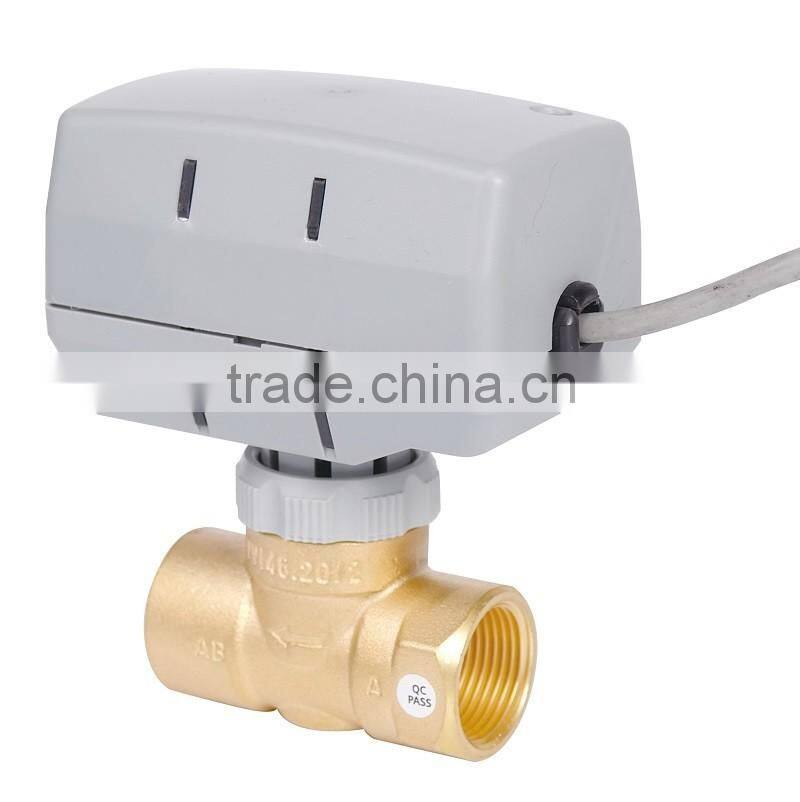

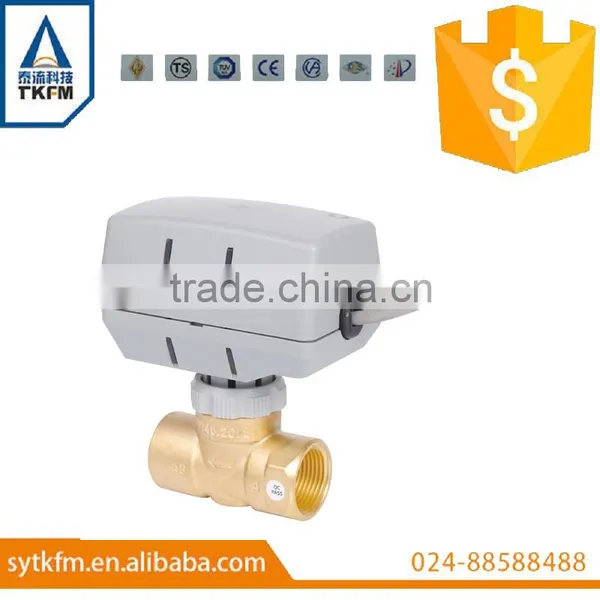

SR5121 motorized 2 way 3 way auto electric operated ball valve
Product description:
SR5121 motorized two-way valve consists of the SR 5121-A valve actuator and the SR 5121-B brass valve, used in controlling the cold or hot water pipe on or off in air conditioning system, for the purpose of controlling room temperature. Valve is driven by hysteresis synchronous motor, returned by spring. When the valve does not work, it’s in normally closed state, when it works, A opening signal is provided by thermostat, to make the electric valve connect AC power and become opening state, cold water or hot water flows into the fan coil, to provide cool air or hot air for room; once the room temperature reaches the setting point of thermostat, the thermostat will shut down the power of electric valve and the spring will return to make the valve closed, thus cutting off the flow of water into the fan coil. As the valve closed or open, room temperature is always maintained at the thermostat setting temperature range.

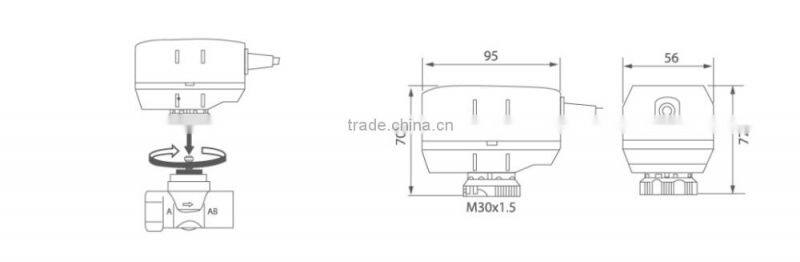

SR5121 motorized two-way valve’s actuator and valve itself use thread connection, the actuator can be installed after the valve is installed. Site assembly, easy wiring. Graphic design of the actuator is suitable for closing the wall, and small occupied space. The Product is reliability and durability, low noise.which can be installed inside the concealed fan coil unit and reliable work in the often high-temperature environment.
Features:
Forged brass body
Stainless steel base, aluminum casing
Fully enclosed hysteresis synchronous motor, stainless steel spring
Body Connection thread: British standard flat thread (female thread) BSPP
North America used pipe thread (female thread) NPT
Motor power, low noise, light weight, easy to use, at the rated voltage frequency of the motor speed is not affected,
Remains constant, if the motor overload or stall, the motor coil will not burn
actuator and valve itself are installed by slip-on connection, which can be quickly and easily disassembled without any tools, so it’s easy to install and use
Technical Parameters:
Technical Parameters:
Valve size: DN15, DN20, DN25
Connection: threaded connection (BSPP, NPT)
Valve structure: two-way, three-way
Media: hot / cold water and 60% ethylene glycol
Close pressure: 0.18mpa ~ 0.25mpa
Body pressure: PN20
Close pressure: 0.2 ~ 0.3Mpa
Power supply voltage: AC220V ± 10%, AC24V 50 / 60HZ
Connection method: a three-wire control
Since the consumption power: 4VA
Drive thrust: 200N, stroke: 4mm
Operating modes: on or off, or PAT
Valve action time: On / Off Time: 30S ~ 40S
Model and size
|
Model
|
Flow Coefficient(KV) |
Thread
|
Differential pressure |
Medium |
Medium Temp |
Ambient Temp |
PN |
Store temp |
DN15 two-way valve |
2.0 |
1/2’’ |
0.25 |
Water/ Hot water |
1-95℃ |
0-65℃ |
2.0 |
-20℃~65℃ |
DN15 three-way valve |
3.2 |
1/2’’ |
0.25 |
|||||
DN20 two-way valve |
3.2 |
3/4’’ |
0.20 |
|||||
DN20 three-way valve |
4.6 |
3/4’’ |
0.20 |
|||||
DN25 two-way valve |
5.7 |
1’’ |
0.18 |
|||||
DN25 three-way valve |
5.8 |
1’’ |
0.18 |
CERTIFICATION: ISO, TS, API, GOST, CE....etc
Fully welded ball valve - Company advantages:
1. We are factory: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. also can provide the competitive price.
2. Certification: API, CE, ISO,GOST, TS ..etc
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the customer requirement.
5. Complete Service: We are always ready to hear from you, reply within 12 hours.
6. Quick Delivery: We always keep the large stock for some hot products.
1.What's payment terms? 30% payment in advance, 70% balanced before delivery. (if total value is USD$ 500, we suggest 100% payment in advanve.)
2.What's MOQ? One set. (if small size, we can check if free sample or not, freight need to be paid by customer.)
3.How control the quality of ball valve?
Select high quality raw material; Strict required during machining; Seat material comply with food grade; Tested twice to insure zero leakage; First copper plating disc, then nickle plating disc to increase the adhesiveness
4.Delivery time?
10-15 days after received the advance payment. (if stock, about 10 days)
