Home > Products > Multi- way valves > CDB-F20 Multi-valve

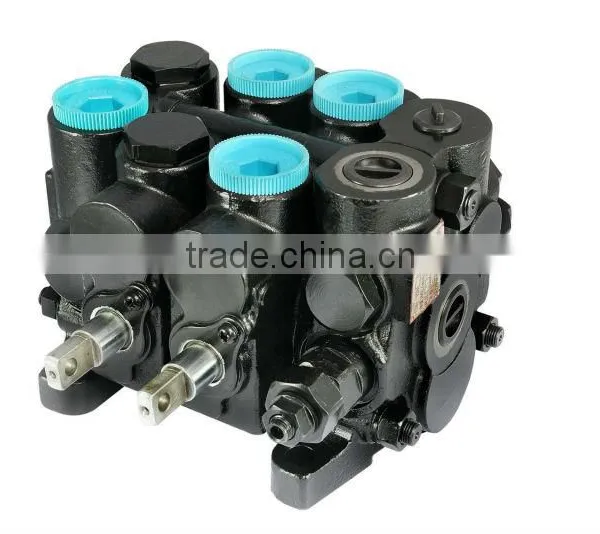

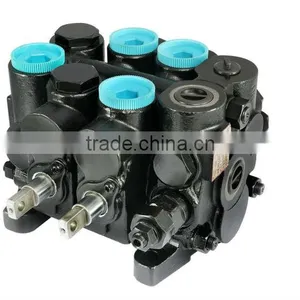

CDB-F20 Multi-valve
- 100000 Piece / Pieces per Month
- Ningbo
Product Details
Place of Origin: | Zhejiang, China | Model Number: | CDB-F20 | Brand Name: | JD |
Product Description
Specifications
Be applied to hydrauliclocomotive of TCM,5t~10tMax. Pressure
Outlet A&B 25 MPa
Inlet P 20 MPa
Outlet T 1.5 MPa
Pressure Adjustment Range
Primary Safety Valve 10~20 MPa
Secondary Relief Valve 8~25 MPa
Steering Interface Safety Valve 8~20 MPa
Flow Rate
P→T Operating Mode 160 L/min
P→PF Operating Mode 24~27 L/min
Spool Operatingforce max.300N
Viscosity Range 10~380mm2/s
Oil Temperature Range -20°C~80°C
Oil&Systerm Cleanliness Rank no lower than 19/16 (GB/T14039-93) or10(NAS
Performance Characters the data is tested in 50°C(for 2-spool-valve)
