2015 TKFM Low Pressure Flange Connection Dn150 Butterlfy Valve for Water Treatment

2015 TKFM Low Pressure Flange Connection Dn150 Butterlfy Valve for Water Treatment thumbnail-1
2015 TKFM Low Pressure Flange Connection Dn150 Butterlfy Valve for Water Treatment photo-1
US$ 28 - 555 MOQ: 10 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Shenyang Taike Fluid Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure Low Pressure
Power Manual
Material Casting
Temperature of Media Medium Temperature
Media Water
Port Size DN50(2'')~DN450(18'')
Place of Origin Liaoning, China
Model Number D341X-16Q
Brand Name TKFM
Application General



Product Description

  2015 TKFM low pressure flange connection dn150 butterfly valve seal ring

2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment

Valve Standard:

Comply with ISO 5752/BS 5155/BS EN 593



Pressure Temperature Ratings

Work Pressure: 16 bar

Testing Pressure:Shell 24 bar

                            Seat: 17.6 bar

Working Temperature:-20°C  to 110°C EPDM Seat

                                    -10°C to 80°C NBR Seat



Suitable Media: Water,Oil & Gas



Material Specification:

Part Material EN Spec.
Body Ductile Iron EN-JS 1050
DISC Ductile Iron EN-JS 1050
Bronze EN 1982 CC491K
Stainless Steel 304 BS970 304 C15
Stainless Steel 316 BS970 316 C16
Shell Stainless Steel 410 BS970 410 S 21
Stainless Steel 431 BS970 431 S 29
Seal Ring EPDM/NBR
O-Ring EPDM/NBR
Bushing Bronze EN 1982 CC491K



2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment

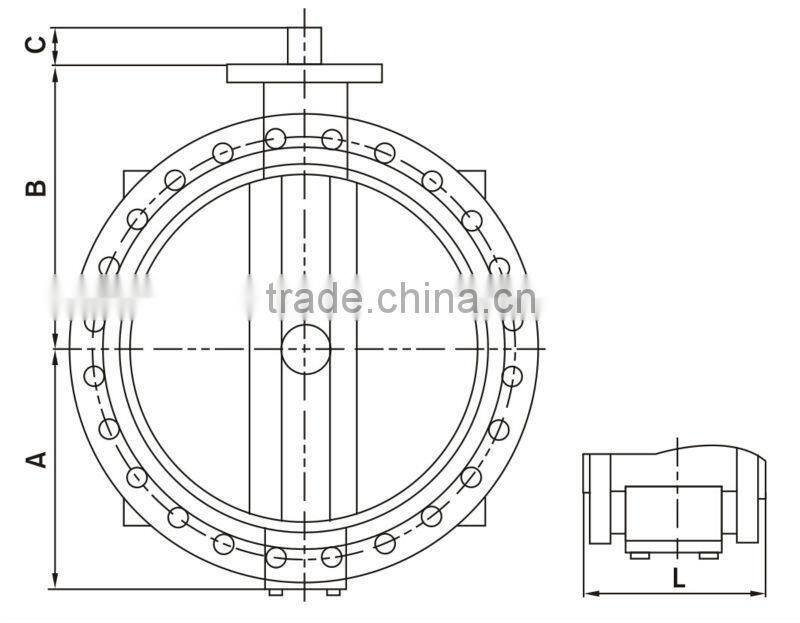

Dimensions

DN mm 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 750
Inch 2 2½ 3 4 5 6 8 10 12 14 16 18 20 24 28 30
A 80 80 95 114 114 139 175 203 250 250 310 332 358 423 479 508
B 110 134 131 150 170 180 210 245 328 328 376 407 433 508 560 610
C 30 30 30 30 30 30 34 34 40 40 52 52 64 70 95 95
L 108 112 114 127 140 140 152 165 190 190 216 222 229 267 292 305





DN mm 800 900 1000 1200 1300 1350 1400 1500 1600 1800 2000 2200 2400 2600 2800 3000
Inch 32 36 40 48 52 54 56 60 64 72 80 88 96 104 112 120
A 533 602 656 781 915 925 925 950 1041 1156 1350 1430 1610 1795 1900 2040
B 620 692 735 917 990 1000 1000 1050 1150 1200 1360 1500 1650 1780 1900 2070
C 95 130 130 150 150 200 200 200 200 200 200 300 300 300 300 350
L 318 330 410 470 530 530 530 570 600 670 760 636 850 900 950 1000

  2015 TKFM low pressure flange connection dn150 butterfly valve seal ring

2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment

 2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment

2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment

2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment



Packaging & Shipping

 2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment

Our Services



Terms of payment: 30% in advance as deposit, the balance paid before delivery.

Delivery time: 30 days after receiving the prepayment.

Terms of trading: FOB, CFR, CIF

Guarantee: 12 months



2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment



2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment



2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment



Company Information



2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment

Fully welded ball valve - Company advantages:



1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169

2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.

3. Low MOQ:  Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.

4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.

5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.

6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.

7. Quick Delivery: We have the large stock for some hot products.

8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.

2015 TKFM low pressure flange connection dn150 butterlfy valve for water treatment
