TKFM hot sale low pressure rubber seal butterfly valve
- 1000 Set / Sets per Month
- DALIAN
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Butterfly | Pressure: | Low Pressure |
Power: | Manual | Material: | Casting | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | DN50(2'')~DN450(18'') | Place of Origin: | Liaoning, China |
Model Number: | D371X-16Q | Brand Name: | TKFM | Application: | General |
Product Description
Valve Standard:
Comply with ISO 5752/BS 5155/BS EN 593/MSS SP-67/API 609
Pressure Temperature Ratings
Work Pressure: 10 bar/16 bar,Class 150
Testing Pressure: API 598
Working Temperature:-20°C to 110°C EPDM Seat
-10°C to 80°C NBR Seat
Suitable Media: Water,Oil & Gas
Material Specification:
Part | Material | ASTM | ||
Body | Cast Iron | A126 Class B | ||
Ductile Iron | A536 Gr.65-45-12 | |||
DISC | Ductile Iron | A536 Gr.65-45-12 | ||
Bronze | B148 C95400 | |||
Stainless Steel 304 | A351 CF-8 | |||
Stainless Steel 316 | A351 CF-8M | |||
Shall | Stainless Steel 410 | A276 S410 00 | ||
Stainless Steel 431 | A276 S410 00 | |||
Seal Ring | EPDM/NBR | |||
O-Ring | EPDM/NBR | |||
Bushing | PTFE | B62 C83600 | ||
Bronze |

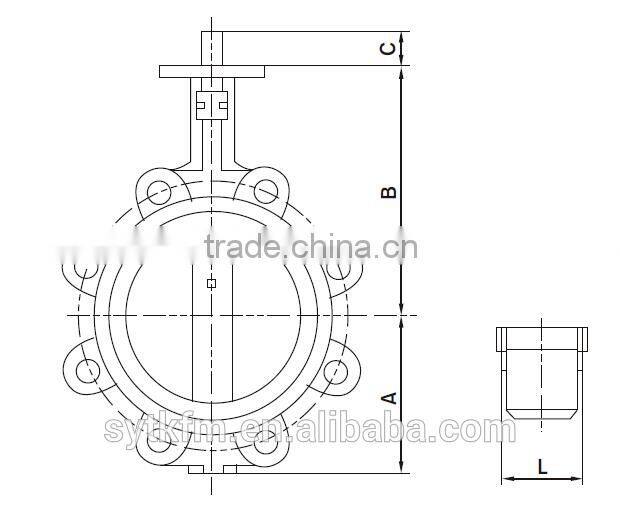

Dimensions
DN | mm | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
inch | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | |
A | 68 | 80 | 89 | 95 | 114 | 127 | 139 | 175 | 203 | 242 | 267 | 309 | |
B | 110 | 161 | 175 | 181 | 200 | 213 | 226 | 260 | 292 | 337 | 368 | 400 | |
C | 24 | 30 | 30 | 30 | 30 | 30 | 30 | 34 | 34 | 34 | 40 | 52 | |
L | 33 | 42 | 45 | 45 | 51 | 55 | 55 | 60 | 67 | 76 | 76 | 102 |
DN | mm | 450 | 500 | 550 | 600 | 650 | 700 |
inch | 18 | 20 | 22 | 24 | 26 | 28 | |
A | 18 | 20 | 22 | 24 | 26 | 28 | |
B | 327 | 361 | 412 | 459 | 472 | 527 | |
C | 52 | 64 | 70 | 70 | 70 | 95 | |
L | 114 | 127 | 151 | 151 | 172 | 165 |
Terms of payment: 30% in advance as deposit, the balance paid before delivery.
Delivery time: 30 days after receiving the prepayment.
Terms of trading: FOB, CFR, CIF
Guarantee: 12 months
Fully welded ball valve - Company advantages:
1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.
