Fiber Optical Video Transmitter and Receiver
For CCTV Security Surveillance
B&TON fiber optical video transmitter and receiver can simultaneously transmit 1-72 channels of 8-bit digitally
encoded broadcast quality video / reverse or bidirectional data / unidirectional or bidirectional
audio / Ethernet / Telephone / Dry contact over one single-mode or multimode optical fiber.
These multiplexers are typically used in applications where the cameras have PTZ capabilities.
Plug and Play design ensures the ease of installation and operation.
Electronic and optical adjustments are never required.
LED indicators are provided for instantly monitoring system status.
Features
•8-bit digitally encoded and non-compression broadcast quality video transmission;
• Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols;
• Support any high-resolution video signal;
• Automatic compatible PAL, NTSC and SECAM video system;
• Power supply and other parameter state indication, which can monitor the operation condition of system;
• Support no-damage regenerative trunk of video;
• Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required;
• Special ASIC design;

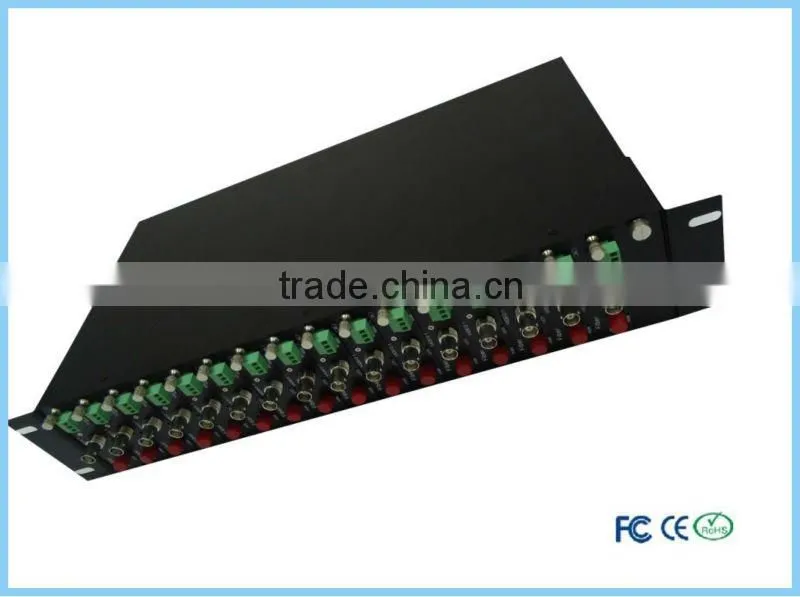

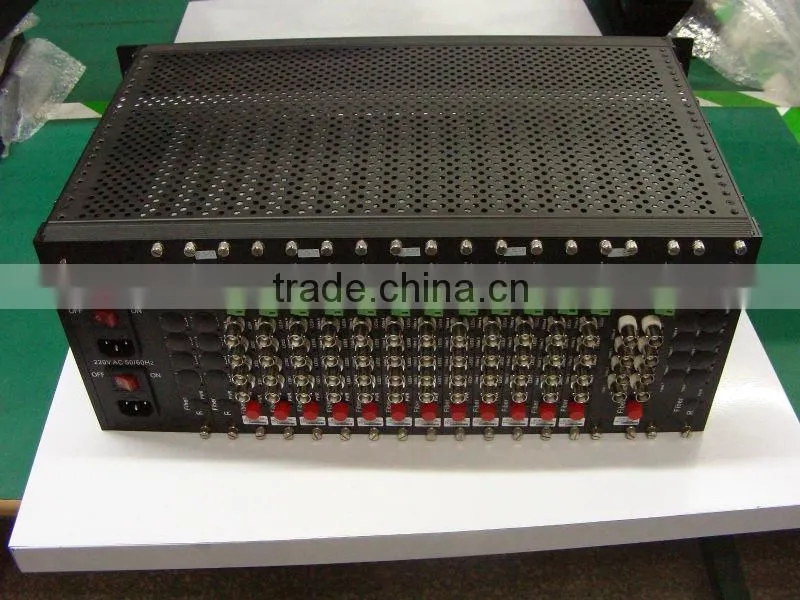

• Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis;
Application
Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
Industrial Closed Circuit Television Surveillance
Technical Specifications
Video Interface:BNC
Video bandwidth:8-Bit
Video in/output impedance:75 Ω(unbalance)
Video in/output Voltage:1.0Vp-p,max 1.5Vp-p
Video signal-to-noise ratio:≥65dB
Differential gain : <1%
Differential phase:<0.7°
Fiber-optic Specification:
Connector: FC/ST/SC
Transmitter: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm
Receiver: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm
Transmission Distance: 2km(mm), 20/40/60/80/100km(sm) (Optional)
Operating Wavelength: Tx1310/Rx1550(Transmitter),Tx1550/Rx1310nm(Receiver)
Operating Voltage: DC5V, AC100-240V
Operating Temperature (°C): 0~50
Storing Temperature(°C) : -40~85
Humidity: 0 to 95% non-condensing
MTBF: ≥ 105 hours
Warranty: 3 year
Specification of Customized Options
Data
Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : DC ~ 300Kbps
BER: ≤10-9
Audio
Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:20HZ~20KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥85dB
Telephone
Connector: RJ11
Bandwidth :8KHZ
Features: Support call-showing function ;support H-F
Operating mode : Point to point hot-line mode / FXS-FXO
Ethernet
Connector: RJ45
Support mode : Half duplex or Full duplex
Standards: IEEE802.3
Data rate: 10M / 100Mbps
Bandwidth: 25M
Contact Closure
Physical connector: Industrial standard connector port
Alarm output: Support any type of active or passive alarm output
Data Interface: Support TTL, RS232/485/422 or relay output
Optical Budget
Multimode / 20dBm / 2KM
Single mode / 20dBm / 20KM
Single mode / 22dBm / 40KM
Single mode / 25dBm / 60KM

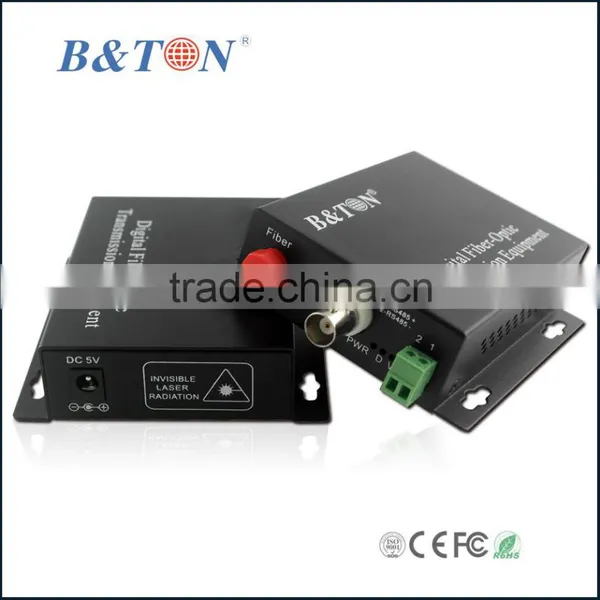

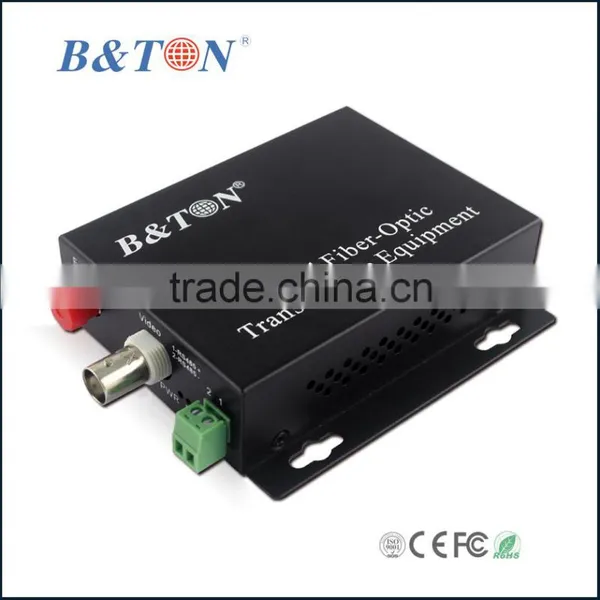

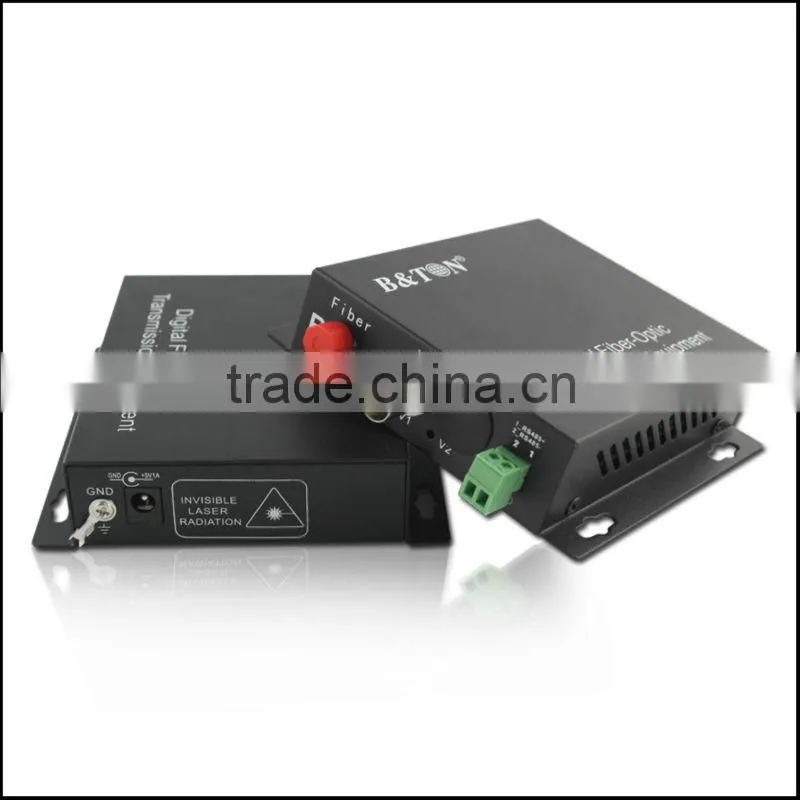

1 Channel Video Series
Dimensions: 105(L)×108(W)×27(H)mm
Weight: 1KG

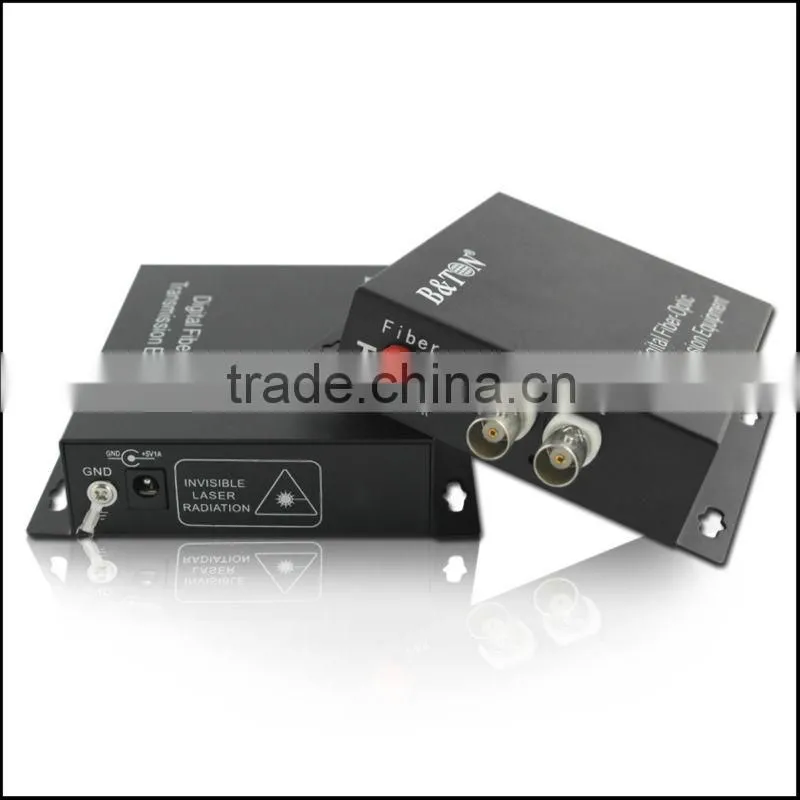

2 Channel Video Series
Dimensions: 105(L)×108(W)×27(H)mm
Weight: 1KG

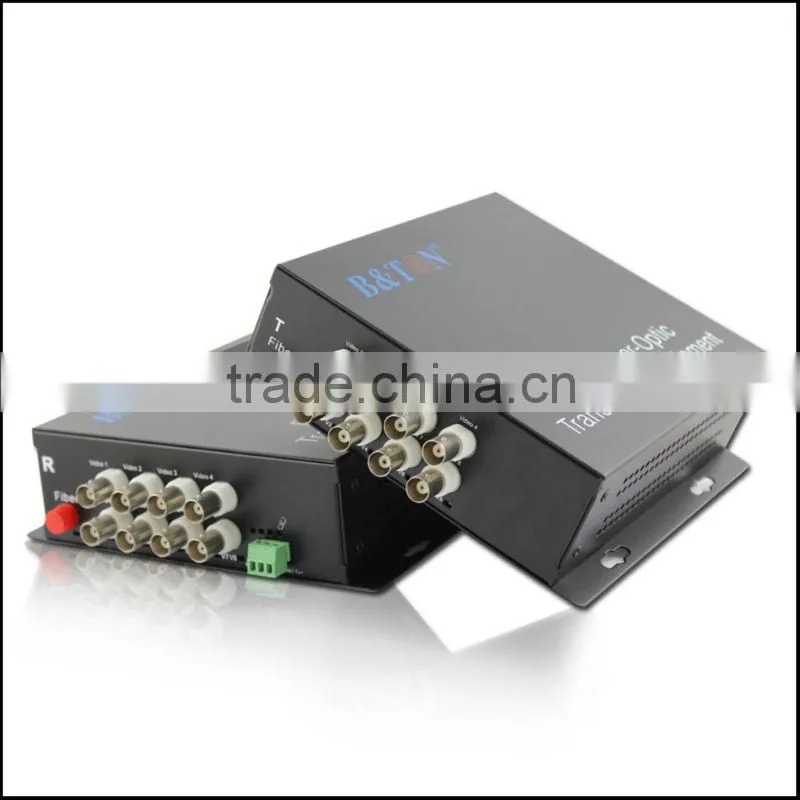

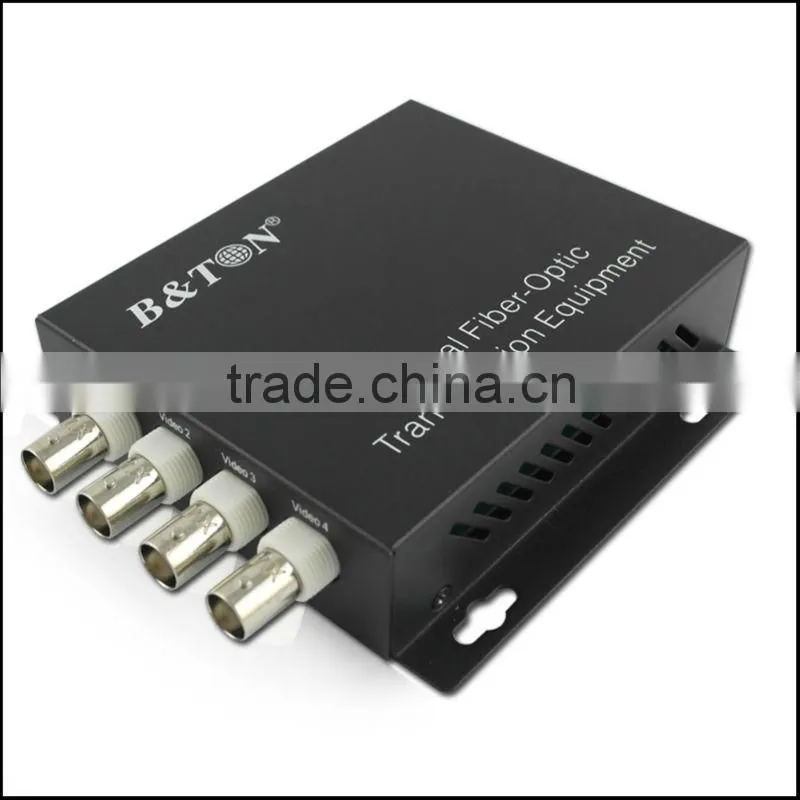

4 Channel Video Series ( Mini type)
Dimensions: 105(L)×108(W)×27(H)mm
Weight: 1KG
4 Channel Video Series Big type(Can be installed into 4U Rack)
Dimensions: 140(L)x173(W)x25(H)mm
Weight: 2.06KG

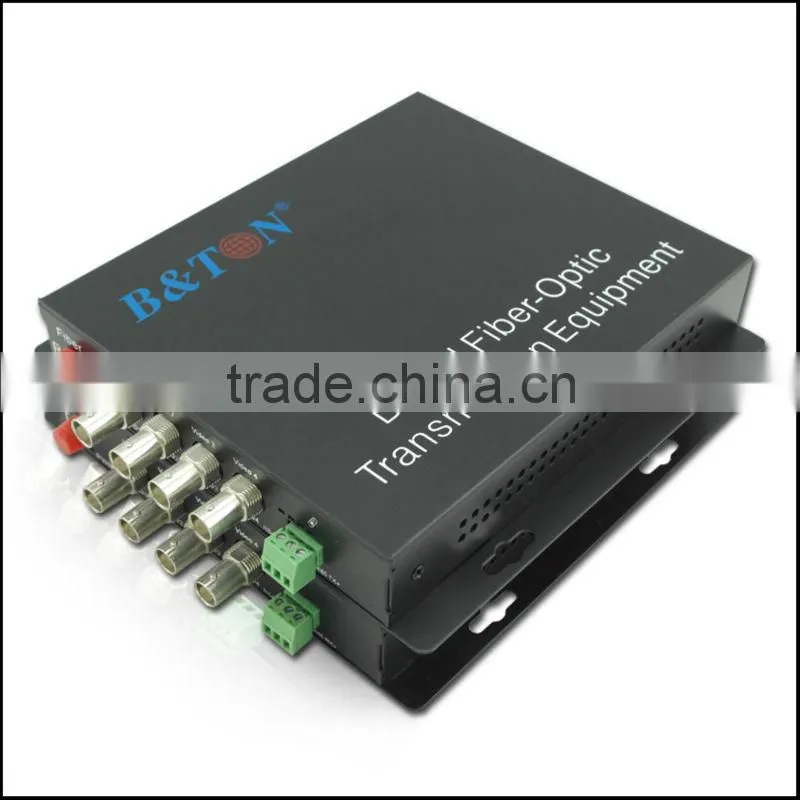

8 Channel Video Series Can be installed into 4U Rack)
Dimensions: 140(L)×173(W)×50(H)mm
Weight: 2.38KG
19 Channel Video Series ( ( 19inch chassis type )
Dimensions: 439(L)×176(W)×44(H)mm
Weight: 4.81KG
19 Channel Video Series ( ( Desk type )
Dimensions: 238(L)×125(W)×44(H)mm
Weight: 2.5KG
2UChassis
4U Chassis
